42516x92B - Briggs & Stratton 42" Lawn Tractor (2001) Motion Drive Parts Diagram

42" Lawn Tractor

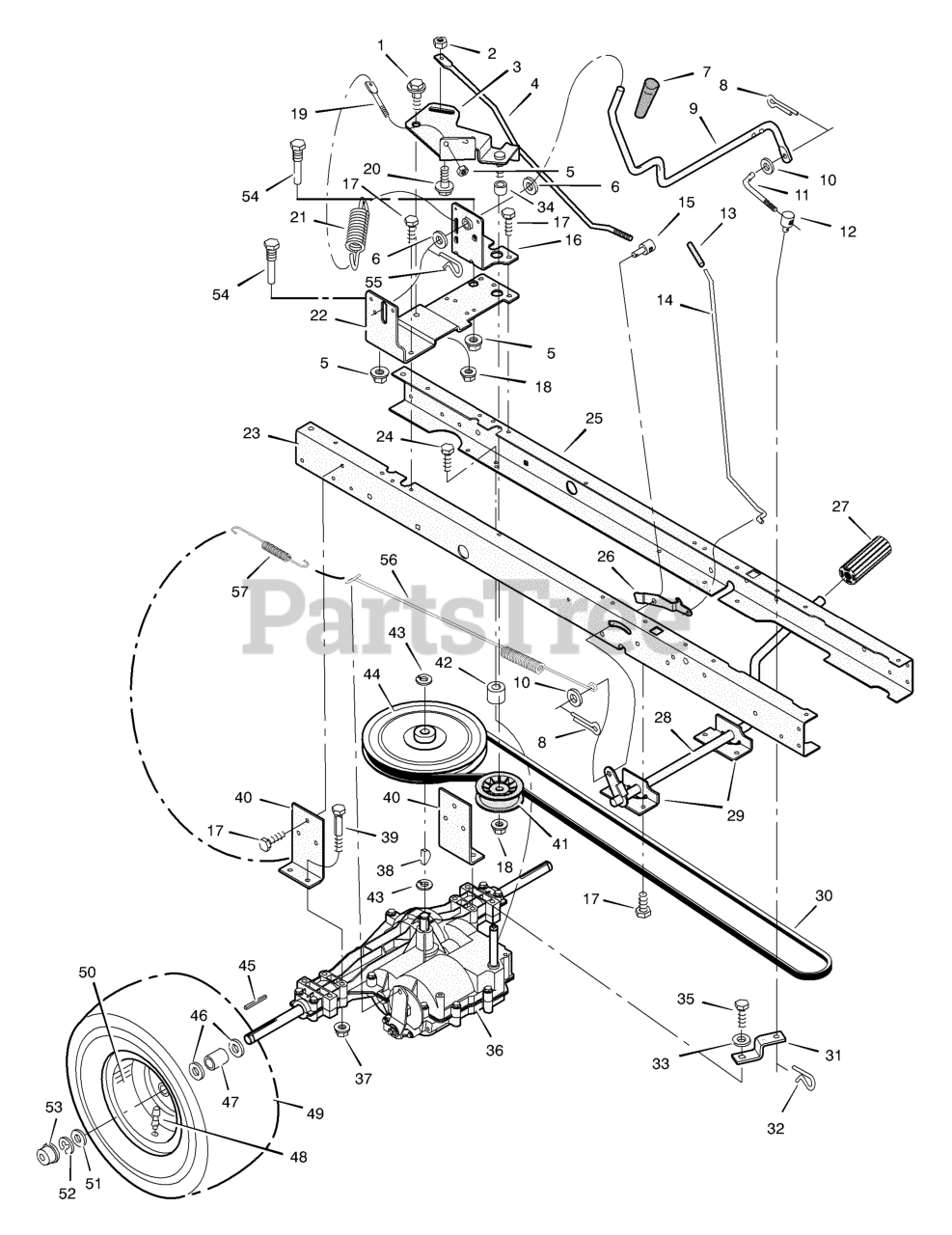

Motion Drive Parts Diagram

  • Title

1

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

2

Murray 015X89MA

Nut, Hex

$4.49

$

Usually ships in 2-12 days

0

3

Murray 690173ZMA

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

4

Murray 94041 Z

Rod, Clutch

$

$

Currently unavailable

5

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

7

Murray 92697

Grip

$

$

Not available

8

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 94043 Z

Lever, Shift

$

$

Currently unavailable

10

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

11

Murray 94044 Z

Link, Shift

$

$

Currently unavailable

12

Murray 21920

Nut, Adjuster

$23.99

$

Usually ships in 2-12 days

0

13

Murray 91079

Grip
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

14

Murray 94152 Z

Rod, Parking Brake

$

$

Currently unavailable

15

Murray 94815

Nut, Adjuster

$21.99

$

Usually ships in 2-12 days

0

16

Murray 94034E700

Bracket, Shift

$

$

Not available

17

Murray 26X249MA

Screw

$

$

Not available

18

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 94042 Z

Mount, Stud Spring

$

$

Currently unavailable

20

Murray 009X54MA

Bolt, Shoulder

$5.49

$

Usually ships in 2-12 days

0

21

Murray 165X116MA

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

22

Murray 690166E700

Bracket, Shifter

$

$

Not available

23

Murray 690206E700

Frame, Right

$

$

Currently unavailable

24

Murray 025X12

Screw

$5.99

$

Usually ships in 2-12 days

0

25

Murray 690207E700

Frame, Left

$

$

Currently unavailable

26

Murray 94045 Z

Latch, Parking Brake

$

$

Currently unavailable

27

Murray 21544

Pedal

$9.99

$

In Stock, only 1 left!

0

28

Murray 94038E700

Lever, Brake/Clutch

$72.99

$

Usually ships in 2-12 days

0

29

Murray 1001117E700

Bracket, Pedal

$

$

Currently unavailable

30

Murray 037X87MA

Belt, Motion Drive

$28.99

$

In Stock, Qty 8

0

31

Murray 94031 Z

Yoke, Shift

$

$

Currently unavailable

32

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

34

Murray 690369MA

Spacer

$5.99

$

In Stock, only 4 left!

0

35

Murray 06X105MA

Bolt

$3.99

$

In Stock, only 1 left!

0

36

Transaxle **

$

$

Not available

37

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

38

Murray 20697

Key, Woodruff

$3.99

$

In Stock, only 1 left!

0

39

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

40

Murray 94008E700

Bracket, Transaxle

$

$

Currently unavailable

41

Murray 690409MA

Pulley

$19.99

$

In Stock, only 3 left!

0

42

Murray 94132

Spacer

$16.99

$

In Stock, only 1 left!

0

43

Murray 0011X7MA

E-Ring

$3.99

$

In Stock, Qty 7

0

44

Murray 95094

Pulley, Drive

$55.99

$

In Stock, only 1 left!

0

45

Murray 21553

Key, Square

$4.99

$

In Stock, Qty 6

0

46

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 13

0

47

Murray 690554 Z

Spacer, Transaxle
(Superseded to 690554ZMA)

$17.99

$

In Stock, only 2 left!

0

48

Murray 24373

Stem, Valve

$

$

Not available

49

Murray 92374

Tire *

$

$

Currently unavailable

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

50

Murray 92290601

Wheel & Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

51

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 19

0

52

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 14

0

53

Murray 94618

Hub Cap

$5.99

$

In Stock, Qty 20+

0

54

Murray 93349

Guide, Belt

$

$

Not available

55

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

56

Murray 165X115MA

Spring, Extension

$21.99

$

Usually ships in 2-12 days

0

57

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 3 left!

0
