42531x7A - Scotts 42" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

42" Lawn Tractor

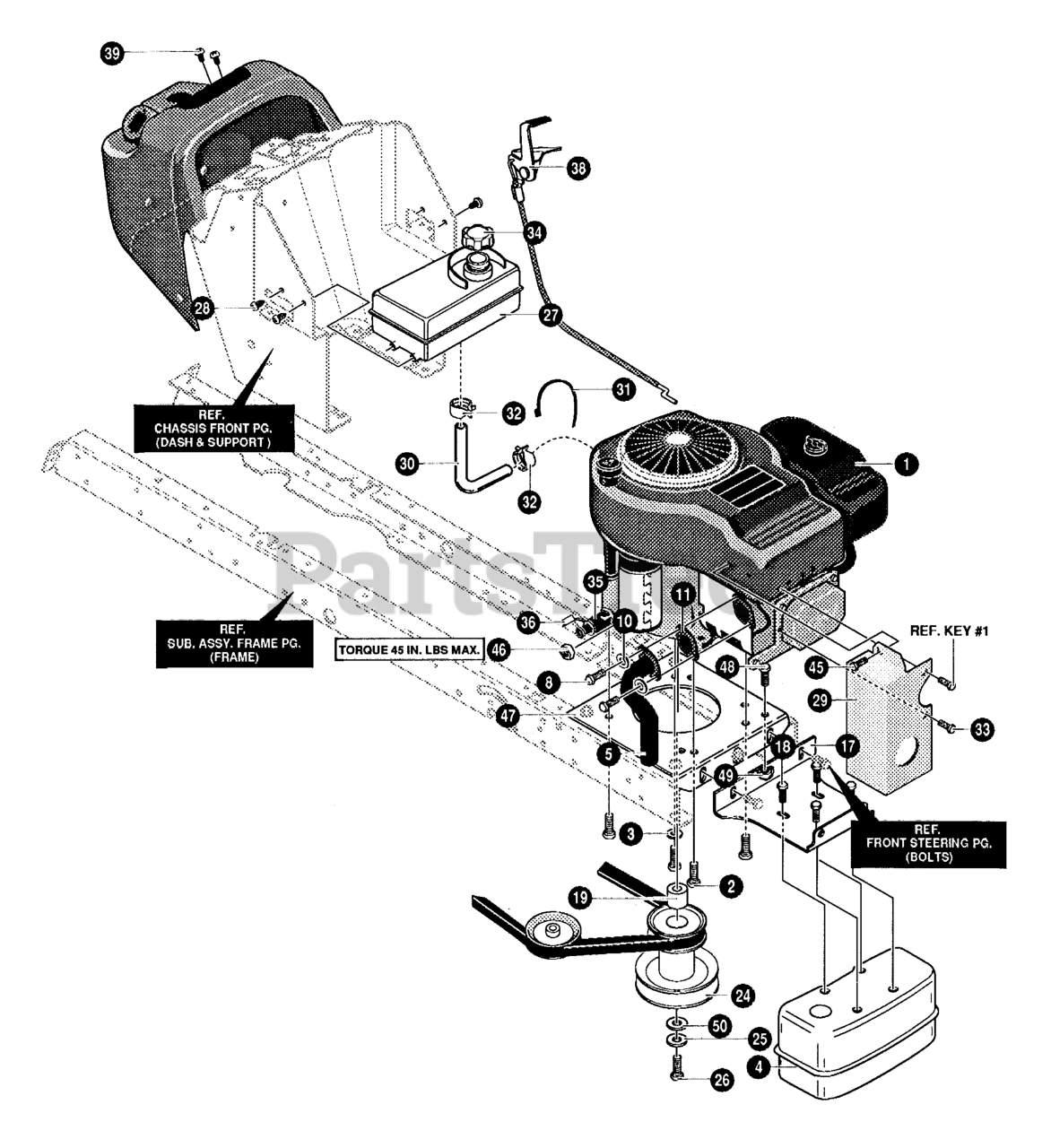

Engine & Control Assembly Parts Diagram

  • Title

1

ENGINE 15HP BS OHV IC

Note: (See Engine Manual)

$

$

Not available

2

Murray 0025X7MA

SCREW, 3/8- 16X1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

3

Murray 019X35MA

WASHER

$4.99

$

In Stock, only 2 left!

0

4

Murray 94654

MUFFLER, SINGLE- CYLINDER

$

$

Not available

5

Murray 94657

EXHAUST TUBE
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0

8

Murray 001X45MA

SCREW 5/16- 18X.75
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

10

Murray 018X15MA

WASHER

$3.99

$

In Stock, only 1 left!

0

11

Murray 91309

GASKET, MUFFLER
(Superseded to 7091309YP)

$43.99

$

Usually ships in 2-12 days

0

17

Murray 94307E717

BRACKET, MUFFLER MOUNT

$

$

Currently unavailable

18

Murray 0025X2MA

SCREW, 1/4-20X.75
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

19

Murray 93077

SPACER, SLEEVE
(Superseded to 93100)

$4.99

$

Usually ships in 2-12 days

0

24

Murray 94139

PULLEY, STACK ASSY
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

25

Murray 019X35MA

WASHER

$4.99

$

In Stock, only 2 left!

0

26

Murray 01X140MA

SCREW

$5.49

$

In Stock, only 1 left!

0

27

Murray 94073

TANK, FUEL 1.4 GAL.
(Superseded to 691002)

$8.49

$

In Stock, only 1 left!

0

28

Murray 26X233MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

29

Murray 95038E717

HEAT SHIELD

$15.99

$

Usually ships in 2-12 days

0

30

Murray 50

TUBING

$

$

Currently unavailable

31

Murray 32618

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

32

Murray 91174

CLAMP, GAS

$

$

Currently unavailable

33

Murray 0025X2MA

SCREW 1/4-20X/50
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

34

Murray 92317

CAP, FUEL
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

35

Murray 325547MA

OIL DRAIN

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN

$

$

Not available

38

Murray 94503

THROTTLE CONTROL

$10.99

$

Usually ships in 2-12 days

0

39

Murray 26X201MA

SCREW, #8- 16X.50

$4.49

$

In Stock, only 2 left!

0

45

Murray 57366

SCREW 10- 16X.50

$

$

Not available

46

Murray 15X116MA

NUT 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

47

Murray 94006E717

PLATE, ENGINE

$

$

Currently unavailable

48

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

49

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 17X170MA

FLATWASHER

$

$

Not available
