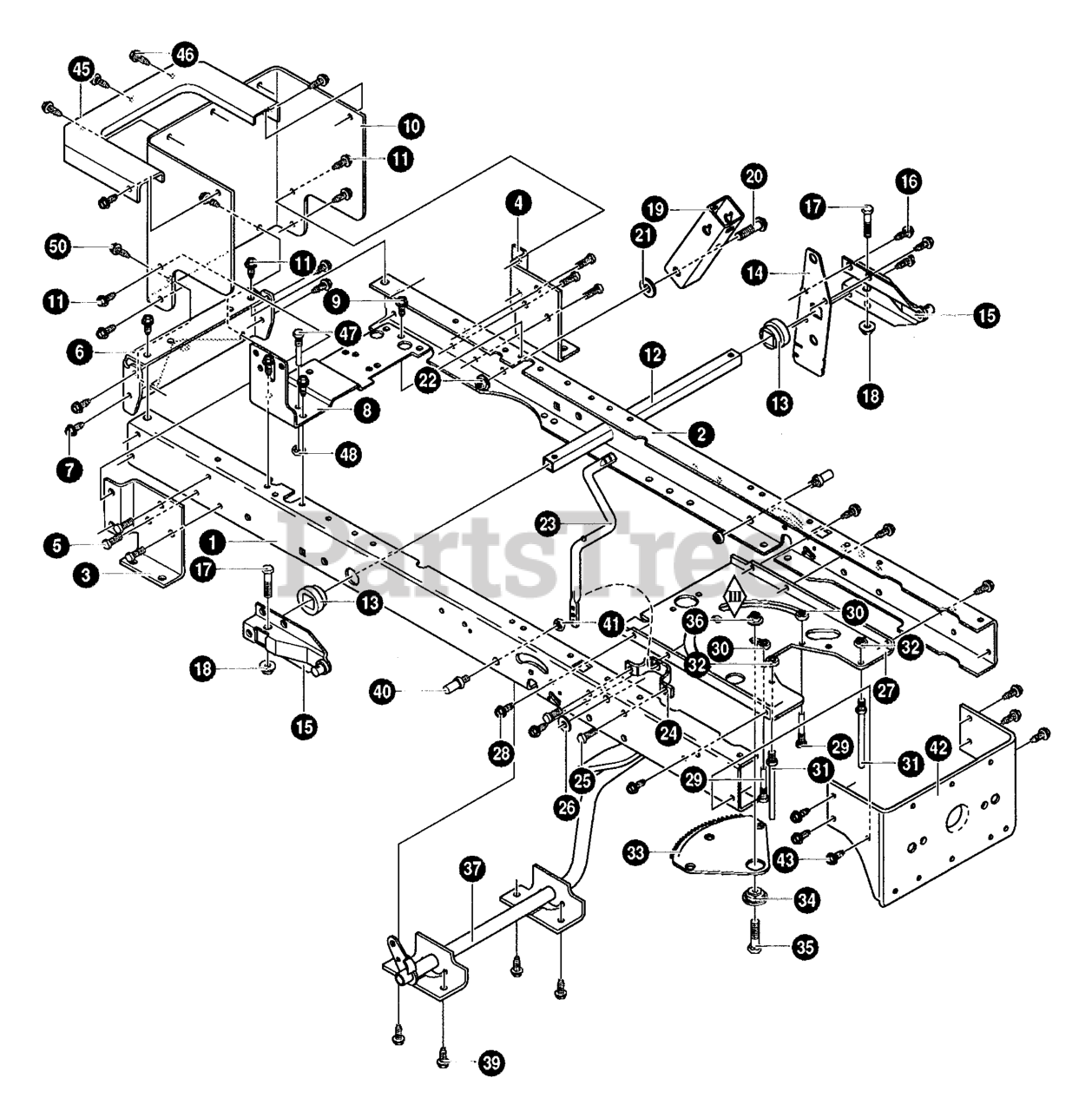

42531x7A - Scotts 42" Lawn Tractor (1997) Frame Assembly Parts Diagram

42" Lawn Tractor

Frame Assembly Parts Diagram

  • Title

1

Murray 94000

FRAME, RAIL RH

$

$

Currently unavailable

2

Murray 94001

FRAME, RAIL LH

$

$

Currently unavailable

3

Murray 94184

BRACKET, TRANSAXLE RH

$

$

Currently unavailable

4

Murray 94185

BRACKET, TRANSAXLE LH

$

$

Currently unavailable

5

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

6

Murray 94002

HITCH PLATE

$

$

Currently unavailable

7

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

8

Murray 94033

BRACKET, SHIFT RH

$

$

Currently unavailable

9

Murray 009X53MA

SCREW 5/16- 18X.75

$6.99

$

Usually ships in 2-12 days

0

10

Murray 94187

PLATE, REAR

$

$

Currently unavailable

11

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

12

Murray 94063

TUBE, LIFTER
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

13

Murray 94065

BUSHING, LIFT TUBE

$

$

Not available

14

Murray 94030

PLATE- LIFT ARM

$

$

Currently unavailable

15

Murray 94180

ASSY LIFT ARM LEVER

$

$

Currently unavailable

16

Murray 026X49MA

SCREW, 5/16-18 x 0.50

$4.49

$

Usually ships in 2-12 days

0

17

Murray 001X74MA

SCREW, 5/16-24 x 1.25

$3.49

$

Usually ships in 2-12 days

0

18

Murray 15X118MA

NUT, 5/16- 24

$4.49

$

Usually ships in 2-12 days

0

19

Murray 94015

BRACKET, PIVOT

$

$

Currently unavailable

20

Murray 710000

BOLT

$10.99

$

Usually ships in 2-12 days

0

21

Murray 017X91MA

FLATWASHER

$5.49

$

In Stock, only 2 left!

0

22

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 94019

CRANK, PTO (DRILLED)

$

$

Currently unavailable

24

Murray 94005

BRACKET, BELLCRANK

$16.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

26

Murray 017X57MA

FLATWASHER

$4.49

$

Usually ships in 2-12 days

0

27

Murray 94003

PLATE, STEERING MOUNTING
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

28

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

29

Murray 93349

SCREW GUIDE 5/16- 18

$

$

Not available

30

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Murray 94066

SCREW - GUIDE

$14.99

$

Usually ships in 2-12 days

0

32

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Murray 94121

SECTOR GEAR
(Superseded to 692523)

$7.49

$

In Stock, Qty 11

0

34

Murray 94123

BEARING, SECTOR GEAR

$

$

Not available

35

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

36

Murray 15X183

NUT, 5/16- 8

$

$

Currently unavailable

37

Murray 94632

ASSEMBLY, BRAKE LEVER

$

$

Currently unavailable

39

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

40

Murray 94067

PIN, THREADED SHOULDER

$5.99

$

Usually ships in 2-12 days

0

41

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 94013

BRACKET, HANGER REAR

$0.99

$

Usually ships in 2-12 days

0

43

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

45

Murray 94186

TOP, REAR PLATE
(Superseded to 690367)

$3.99

$

Usually ships in 2-12 days

0

46

Murray 26X270

SCREW 10- 24X.5
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

47

Murray 93349

SCREW GUIDE 5/16- 18

$

$

Not available

48

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

50

Murray 26X249MA

SCREW, 3/8- 16X1.25

$

$

Not available
