425601x53A - Murray 42" Lawn Tractor (1999) Deck Assembly (part 1) Parts Diagram

42" Lawn Tractor

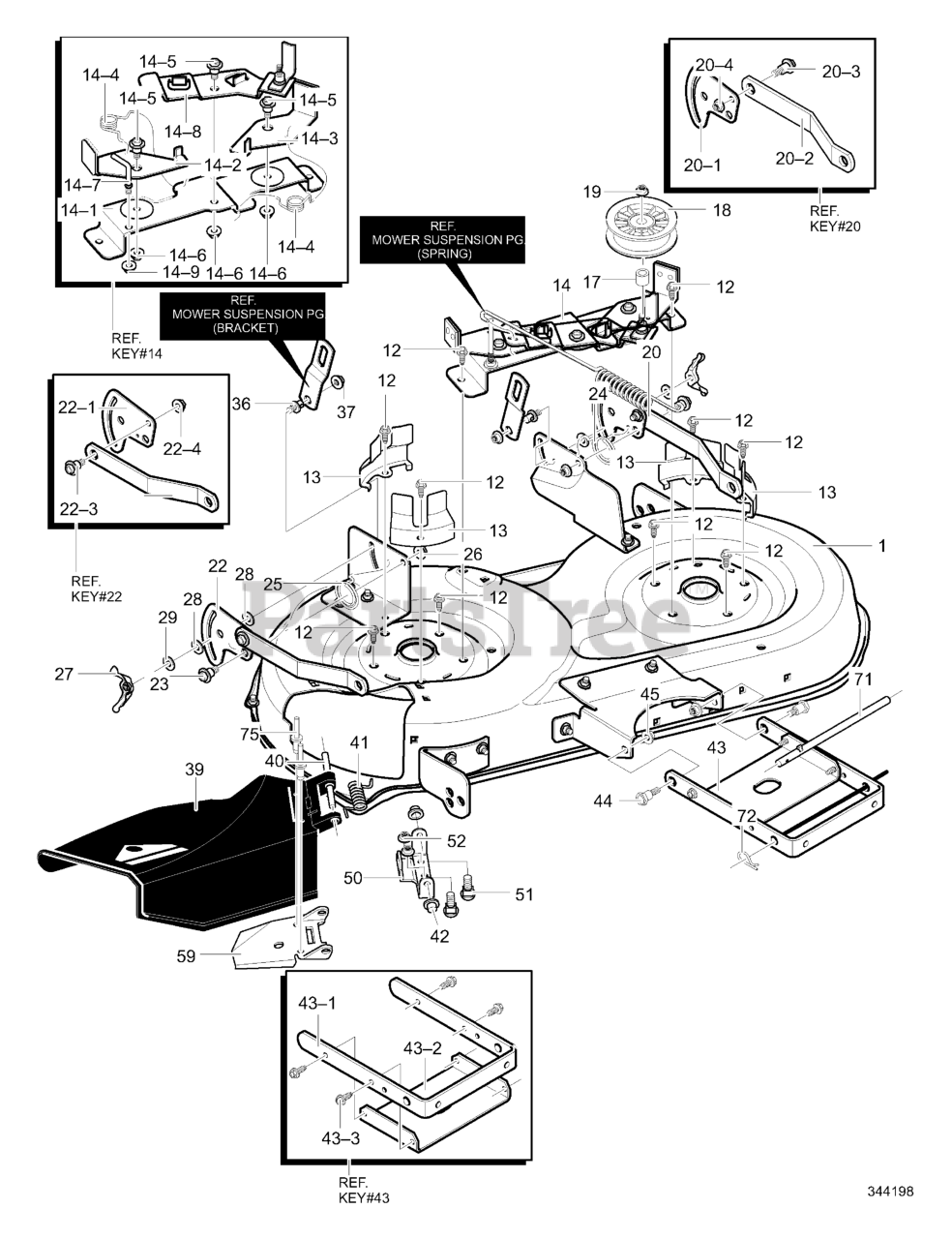

Deck Assembly (part 1) Parts Diagram

  • Title

1

Murray 94189-853

ASSEMBLY, BLADE HOUSING

$

$

Currently unavailable

12

Murray 0025X7MA

BOLT-3/8 X 1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

13

Murray 94051-853

COVER, BELT GUIDE

$

$

Currently unavailable

14

Murray 690138-853

ASSEMBLY, IDLER BRACKET

$

$

Currently unavailable

14-1

Murray 94193

BRACKET, BRAKE

$

$

Currently unavailable

14-2

Murray 94047

ASSEMBLY, RIGHT BRAKE
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

14-3

Murray 94049

ASSEMBLY, LEFT BRAKE

$

$

Currently unavailable

14-4

Murray 710227

SPRING, TORSION

$33.99

$

Usually ships in 2-12 days

0

14-5

Murray 710098

BOLT
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

14-6

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14-7

Murray 094781MA

SCREW, GUIDE

$60.99

$

Usually ships in 2-12 days

0

14-8

Murray 690408

ASSEMBLY, IDLER ARM

$6.49

$

Usually ships in 2-12 days

0

14-9

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 3 left!

0

18

Murray 690451

PULLEY, IDLER

$2.99

$

Usually ships in 2-12 days

0

19

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

20

Murray 341594-853

ASSEMBLY, LEFT LIFTER

$7.49

$

Usually ships in 2-12 days

0

20-1

Murray 94128

PLATE, SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

20-2

Murray 94055

BRACKET, SUSPENSION

$

$

Currently unavailable

20-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

20-4

Murray 015X84MA

NUT, FLANGE
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Murray 341593-853

ASSEMBLY, RIGHT LIFTER

$

$

Not available

22-1

Murray 94128

PLATE, SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

22-2

Murray 94055

BRACKET, SUSPENSION

$

$

Currently unavailable

22-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

22-4

Murray 015X84MA

NUT, FLANGE
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 711611

BOLT, SHOULDER

$1.49

$

Usually ships in 2-12 days

0

24

Murray 710113

SPRING, TORSION

$10.99

$

In Stock, Qty 5

0

25

Murray 710112

SPRING, TORSION

$11.99

$

In Stock, only 2 left!

0

26

Murray 711622

NUT

$

$

Currently unavailable

27

Murray 711600

WINGNUT

$

$

Currently unavailable

28

Murray 094137MA

PAD, FRICTION

$6.99

$

In Stock, Qty 10

0

29

Murray 711628MA

WASHER
(Superseded to 017X45MA)

$

$

Not available

36

Murray 711595

PIN, HANGER

$

$

Not available

37

Murray 711622

NUT

$

$

Currently unavailable

39

Murray 094687MA

DEFLECTOR, CHUTE

$78.99

$

Usually ships in 2-12 days

0

40

Murray 95303MA

ROD, CHUTE DEFLECTOR
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 2 left!

0

41

Murray 710194

SPRING, TORSION

$

$

Currently unavailable

42

Murray 711627MA

NUT, PUSH CAP

$

$

Not available

43

Murray 690058-853

ASSEMBLY, STIFFENER

$

$

Currently unavailable

43-1

Murray 94058

BRACKET, SUSPENSION

$3.99

$

Usually ships in 2-12 days

0

43-2

Murray 95057

STIFFENER, DECK

$

$

Currently unavailable

43-3

Murray 26X249MA

SCREW

$

$

Not available

44

Murray 711611

BOLT, SHOULDER

$1.49

$

Usually ships in 2-12 days

0

45

Murray 711622

NUT

$

$

Currently unavailable

50

Murray 94956-853

BRACKET, CHUTE

$

$

Currently unavailable

51

Murray 711661

BOLT, CARRIAGE

$

$

Not available

52

Murray 711634MA

NUT

$3.99

$

Usually ships in 2-12 days

0

59

Murray 94686-853

SUPPORT, DEFLECTOR

$

$

Currently unavailable

71

Murray 95295

ROD, HANGER

$

$

Currently unavailable

72

Murray 711676

PIN, HAIR

$

$

Currently unavailable

75

Murray 711624MA

RIVET

$3.99

$

Usually ships in 2-12 days

0
