425601x53A - Murray 42" Lawn Tractor (1999) Motion Drive Parts Diagram

42" Lawn Tractor

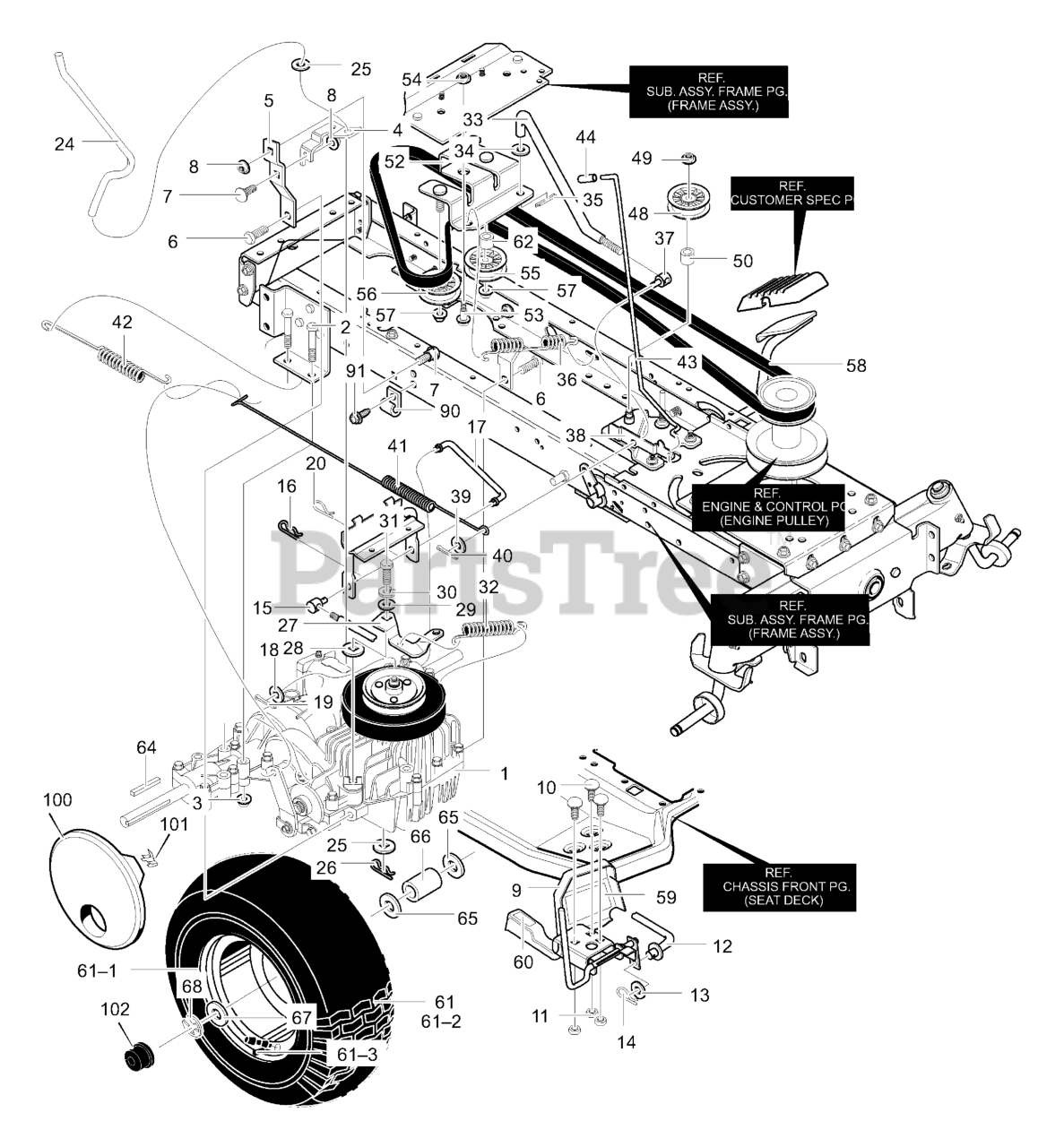

Motion Drive Parts Diagram

  • Title

1

Murray 94800

Transaxle, Peerless **

$

$

Currently unavailable

2

Murray 711669

SCREW

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94429-853

BRACKET, DISCONNECT

$

$

Currently unavailable

5

Murray 94432-853

STRAP, RIGHT TORQUE

$

$

Currently unavailable

6

Murray 710268

SCREW, 5/16-18 x 0.75

$12.99

$

In Stock, Qty 5

0

7

Murray 711661

BOLT, CARRIAGE

$

$

Not available

8

Murray 710026

NUT, 5/16-18 HEX

$

$

Not available

9

Murray 690013-853

PEDAL ASSEMBLY, HYDRO

$

$

Currently unavailable

10

Murray 711688MA

BOLT, 5/16-18X .75

$3.49

$

Usually ships in 2-12 days

0

11

Murray 710026

NUT, 5/16-18 HEX

$

$

Not available

12

Murray 95278

ROD, PEDAL LINK

$11.99

$

Usually ships in 2-12 days

0

13

Murray 711761

WASHER

$116.99

$

Usually ships in 2-12 days

0

14

Murray 711676

PIN, HAIR

$

$

Currently unavailable

15

Murray 711594

ADJUST NUT

$2.99

$

Usually ships in 2-12 days

0

16

Murray 711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 95279

ROD, HYDRO LINK

$10.99

$

Usually ships in 2-12 days

0

18

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 2 left!

0

19

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

20

Murray 711676

PIN, HAIR

$

$

Currently unavailable

24

Murray 95298

ROD, DISCONNECT

$

$

Currently unavailable

25

Murray 711644MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

26

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

27

Murray 95299

ARM, DISCONNECT

$

$

Not available

28

Murray 17X148MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

29

Murray 710657

WASHER

$65.99

$

Usually ships in 2-12 days

0

30

Murray 710249

WASHER

$

$

Currently unavailable

31

Murray 01X145MA

SCREW, 1/4-28 X.75 NYLON

$4.49

$

Usually ships in 2-12 days

0

32

Murray 710330

SPRING, EXTENSION
(Superseded to 710329)

$11.99

$

In Stock, only 1 left!

0

33

Murray 95297

ROD, CLUTCH

$8.99

$

Usually ships in 2-12 days

0

34

Murray 711644MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

35

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

36

Murray 710707

SPRING, CLUTCH

$

$

Currently unavailable

37

Murray 711596

NUT, ADJUSTING

$

$

Currently unavailable

38

Murray 95290

LATCH, PARK BRAKE

$3.99

$

Usually ships in 2-12 days

0

39

Murray 711623

WASHER, FLAT

$1.99

$

Usually ships in 2-12 days

0

40

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

41

Murray 710333

SPRING, EXTENSION

$67.99

$

Usually ships in 2-12 days

0

42

Murray 710353

SPRING, TENSION

$8.99

$

Usually ships in 2-12 days

0

43

Murray 690047

ROD, PARKING BRAKE
(Superseded to 699672)

$199.99

$

Usually ships in 2-12 days

0

44

Murray 091079MA

GRIP

$3.49

$

Usually ships in 2-12 days

0

48

Murray 690409MA

PULLEY, IDLER

$19.99

$

In Stock, only 3 left!

0

49

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

50

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0

52

Murray 95305

BRACKET, IDLER

$

$

Not available

53

Murray 711613MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

54

Murray 711622

NUT, 3/8-16

$

$

Currently unavailable

55

Murray 690409MA

PULLEY, IDLER

$19.99

$

In Stock, only 3 left!

0

56

Murray 690410MA

PULLEY, IDLER

$19.99

$

In Stock, only 1 left!

0

57

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

58

Murray 710531

BELT, MOTION DRIVE

$

$

Not available

59

Murray 094798

PAD, CONTROL PEDAL

$28.99

$

Usually ships in 2-12 days

0

60

Murray 093249

PAD, TOE

$3.49

$

Usually ships in 2-12 days

0

61

Murray 692511

TIRE & RIM 20X8.00-8

$3.99

$

Usually ships in 2-12 days

0

61-1

Murray 338524

RIM

$

$

Currently unavailable

61-2

Murray 338525

TIRE

$

$

Currently unavailable

61-3

Murray 338512

VALVE STEM

$

$

Not available

62

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0

64

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

65

Murray 711648MA

WASHER

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95274MA

SPACER

$46.99

$

Usually ships in 2-12 days

0

67

Murray 711758

WASHER

$26.99

$

In Stock, only 1 left!

0

68

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 13

0

70

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0

90

Murray 711742

RETAINER, WIRE

$18.99

$

Usually ships in 2-12 days

0

91

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

100

Murray 334427MA

CAP, HUB

$23.99

$

Usually ships in 2-12 days

0

101

Murray 306669

RETAINER

$

$

Not available

102

Murray 094618MA

COVER, DUST

$5.99

$

In Stock, Qty 20+

0
