425601x53A - Murray 42" Lawn Tractor (2000) Chassis & Hood Assembly Parts Diagram

42" Lawn Tractor

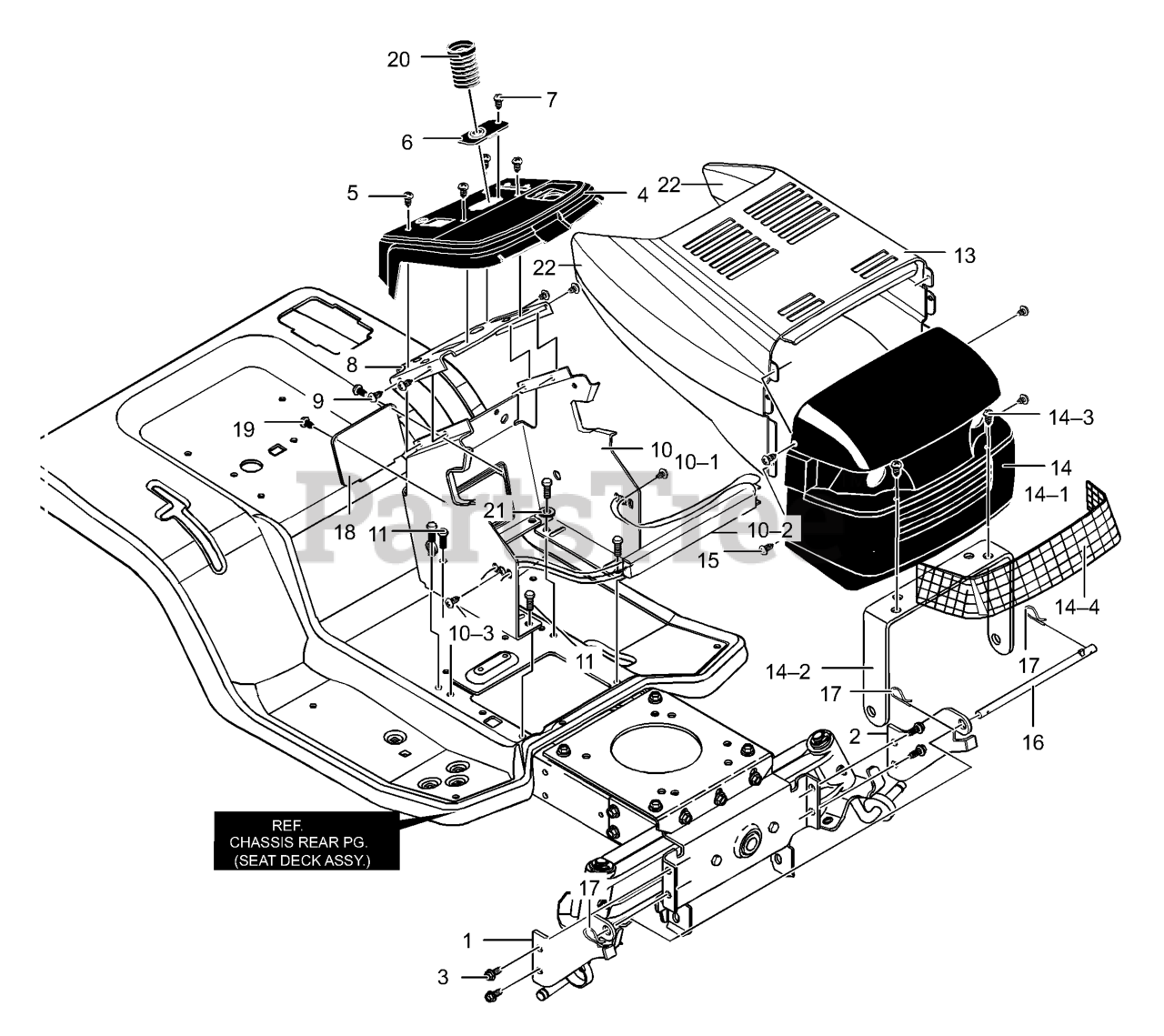

Chassis & Hood Assembly Parts Diagram

  • Title

1

Murray 690543-853

BRACKET, RIGHT GRILLE RH

$

$

Currently unavailable

2

Murray 690544-853

BRACKET, LEFT GRILLE

$

$

Currently unavailable

3

Murray 711606MA

SCREW 5/16-18X.75

$7.99

$

In Stock, only 2 left!

0

4

Murray 94843

DASH

$

$

Currently unavailable

5

Murray 711629

SCREW, 10-24X.500

$

$

Not available

6

Murray 094219MA

BEARING, UPPER

$4.49

$

Usually ships in 2-12 days

0

7

Murray 710197

SCREW 1/4-14X.50

$12.99

$

Usually ships in 2-12 days

0

8

Murray 94221-819

PLATE, DASH

$

$

Currently unavailable

9

Murray 711629

SCREW, 10-24X.500

$

$

Not available

10

Murray 690603-819

ASSEMBLY, CONSOLE

$

$

Currently unavailable

10-1

Murray 95082

SUPPORT, DASH

$

$

Currently unavailable

10-2

Murray 95081

CHANNEL, SUPPORT

$

$

Currently unavailable

10-3

Murray 710134

SCREW

$8.99

$

Usually ships in 2-12 days

0

11

Murray 711606MA

SCREW 5/16-18X.75

$7.99

$

In Stock, only 2 left!

0

13

Murray 94971-819

HOOD

$

$

Currently unavailable

14

Murray 093149MA

ASSEMBLY, GRILLE

$268.99

$

Usually ships in 2-12 days

0

14-1

Murray 093138

GRILLE

$

$

Currently unavailable

14-2

Murray 093139MA

LENS

$95.99

$

Usually ships in 2-12 days

0

14-3

Murray 093190MA

BRACE, HOOD

$50.99

$

Usually ships in 2-12 days

0

14-4

Murray 710282

SCREW

$

$

Not available

15

Murray 711679

SCREW

$26.99

$

Usually ships in 2-12 days

0

16

Murray 690599

ROD, HOOD PIVOT

$11.99

$

Usually ships in 2-12 days

0

17

Murray 711676

PIN, HAIR

$

$

Currently unavailable

18

Murray 93007-819

PANEL, ACCESS

$

$

Currently unavailable

19

Murray 711629

SCREW, 10-24X.500

$

$

Not available

20

Murray 092059MA

BELLOWS, STEERING POST

$9.99

$

Usually ships in 2-12 days

0

21

Murray 712063

WASHER

$9.99

$

Usually ships in 2-12 days

0

--

Murray F-000807J

BOOK, INSTRUCTION

$

$

Currently unavailable

22

UNKNOWN

$

$

Not available
