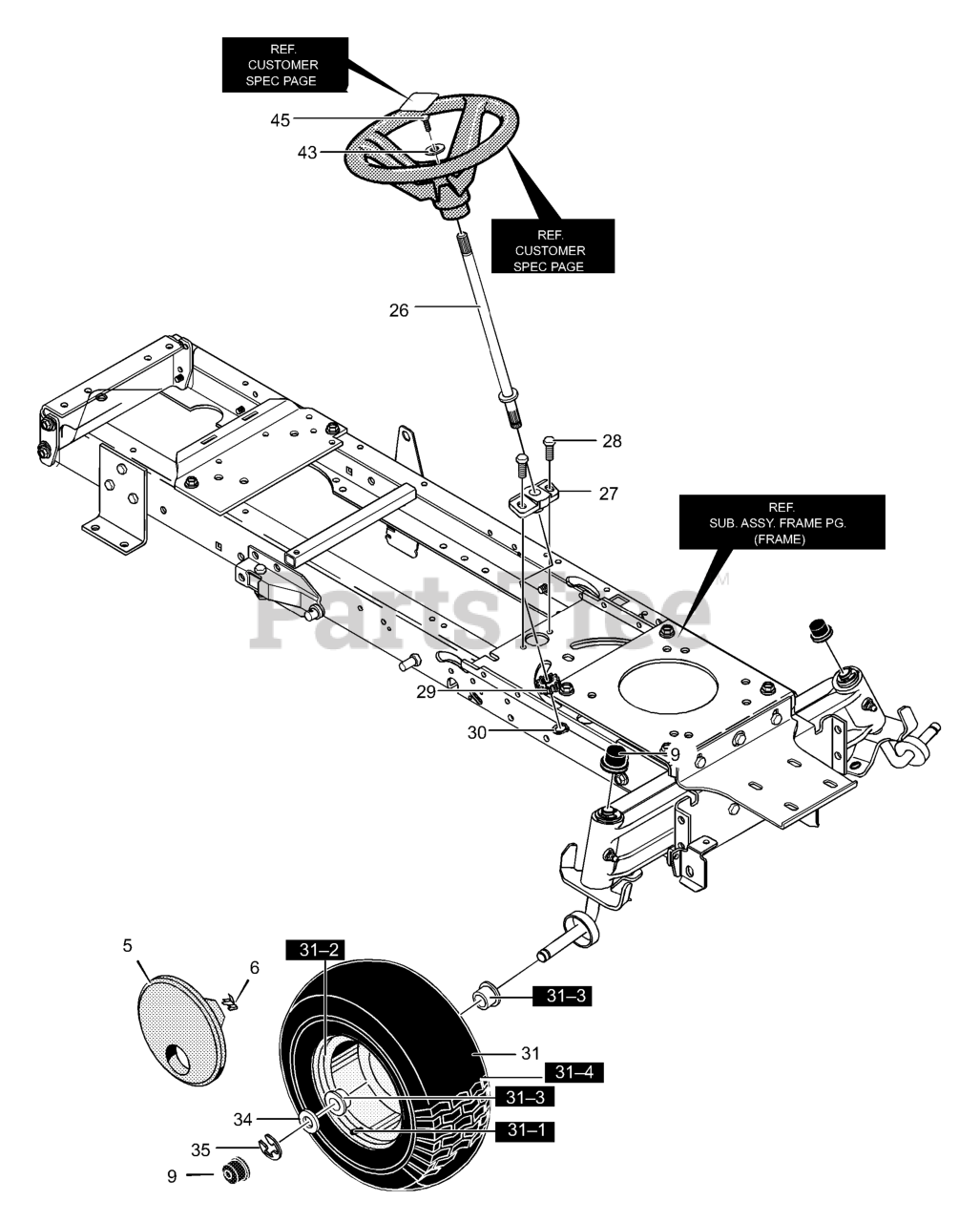

425601x53A - Murray 42" Lawn Tractor (2000) Steering Parts Diagram

42" Lawn Tractor

Steering Parts Diagram

  • Title

5

Murray 334429MA

HUB CAP, 6"

$30.99

$

Usually ships in 2-12 days

0

6

Murray 306669

RETAINER

$

$

Not available

9

Murray 094618MA

DUST HUB CAP

$5.99

$

In Stock, Qty 20+

0

26

Murray 094520

SHAFT, STEERING

$64.99

$

Usually ships in 2-12 days

0

27

Murray 094124MA

BEARING-LOWER

$14.99

$

In Stock, only 1 left!

0

28

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

29

Murray 094122

GEAR, PINION

$

$

Not available

30

Murray 710102

RETAINING RING

$15.99

$

Usually ships in 2-12 days

0

31

Murray 692641

TIRE & RIM

$

$

Currently unavailable

31-1

Murray 338512

VALVE STEM

$

$

Not available

31-2

Murray 338517MA

RIM

$93.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

BEARING

$

$

Not available

31-4

Murray 338514

TIRE

$

$

Currently unavailable

34

Murray 711758

FLATWASHER

$26.99

$

In Stock, only 1 left!

0

35

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 12

0

43

Murray 711720MA

FLAT WASHER

$1.99

$

Usually ships in 2-12 days

0

45

Murray 711719

SCREW 1/4-20X.75

$1.49

$

Usually ships in 2-12 days

0
