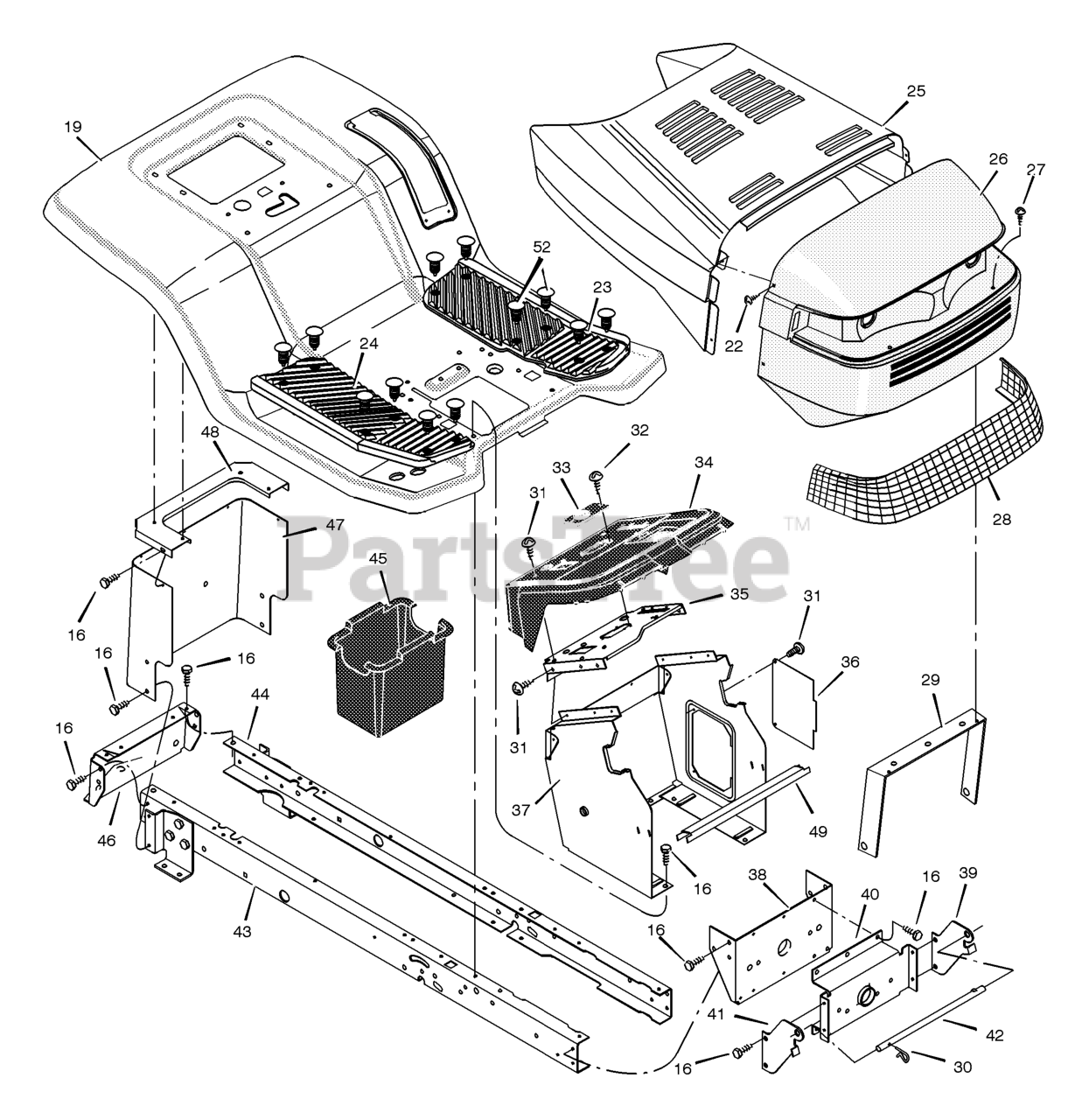

425601x53B - Murray 42" Lawn Tractor (2001) Chassis And Hood Parts Diagram

42" Lawn Tractor

Chassis And Hood Parts Diagram

  • Title

16

Murray 26X249MA

Screw

$

$

Not available

19

Murray 094629E700

Deck, Seat

$

$

Currently unavailable

22

UNKNOWN

$

$

Not available

23

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

24

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

25

Murray 093215E700MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

26

Murray 093149MA

Grille Assembly

Note: (Includes Lens)

$253.99

$

Usually ships in 2-12 days

0

27

Murray 26X239MA

Screw

$4.49

$

In Stock, only 2 left!

0

28

Murray 093139MA

Lens

$95.99

$

Usually ships in 2-12 days

0

29

Murray 093190MA

Brace, Grille

$50.99

$

Usually ships in 2-12 days

0

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

32

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094219MA

Bearing, Steering

$4.49

$

Usually ships in 2-12 days

0

34

Murray 094223

Dash

$

$

Currently unavailable

35

Murray 094221E701MA

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

36

Murray 093007E700

Panel, Access

$

$

Currently unavailable

37

Murray 095082E700

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 690544E700

Support, Left Grille

$

$

Not available

40

Murray 094007E700

Axle, Hanger

$

$

Currently unavailable

41

Murray 690543E700

Support, Right Grille

$

$

Not available

42

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

43

Murray 1001268E701

Frame, Right

$

$

Not available

44

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E700

Plate, Hitch

$

$

Currently unavailable

47

Murray 690218E700

Plate, Rear

$

$

Not available

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

49

Murray 095081E700

Channel

$

$

Currently unavailable

52

Murray 0193X1MA

Fastener

$3.99

$

In Stock, only 1 left!

0

--

Murray F-010796L

Instruction Book & Parts List

$

$

Currently unavailable
