425603x99A - Briggs & Stratton 42" Lawn Tractor (2003) (AAFES) Engine Mount Assembly Parts Diagram

42" Lawn Tractor

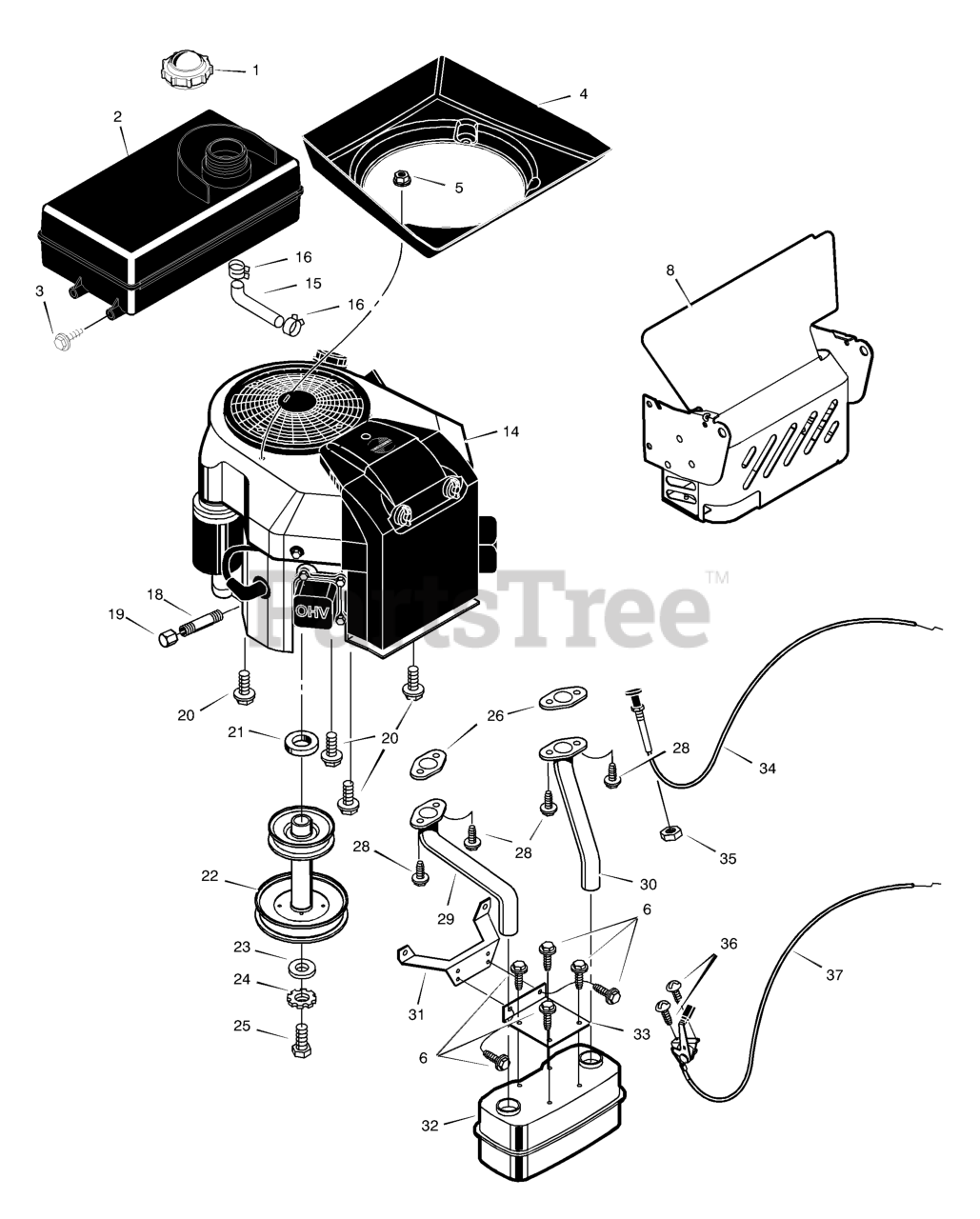

Engine Mount Assembly Parts Diagram

  • Title

1

Murray 092317MA

Cap, Fuel

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 12

0

2

Murray 690289MA

Tank, Fuel
(Superseded to 7601093MA)

$170.99

$

In Stock, only 4 left!

0

3

Murray 26X253MA

Screw

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1001626

Plenum, Air Intake

$112.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 1001456-701

Shield, Heat

$

$

Currently unavailable

14

Engine *

$

$

Not available

15

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

In Stock, only 1 left!

0

16

Murray 095197MA

Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

18

Murray 092279

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

19

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

20

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

21

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0

22

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 6

0

23

Murray 17X170MA

Washer

$

$

Not available

24

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, only 2 left!

0

25

Murray 01X140MA

Bolt

$5.49

$

In Stock, only 1 left!

0

26

Murray 711851MA

Gasket

$4.49

$

Usually ships in 2-12 days

0

28

Murray 06X103MA

Bolt

$6.49

$

In Stock, only 2 left!

0

29

Murray 1001038

Tube, Right Exhaust

$

$

Not available

30

Murray 1001039

Tube, Left Exhaust

$

$

Not available

31

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

32

Murray 093259MA

Muffler

$96.99

$

Usually ships in 2-12 days

0

33

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

34

Murray 776113MA

Choke

$32.99

$

In Stock, only 1 left!

0

35

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

37

Murray 093165MA

Control, Throttle

$39.99

$

In Stock, only 1 left!

0
