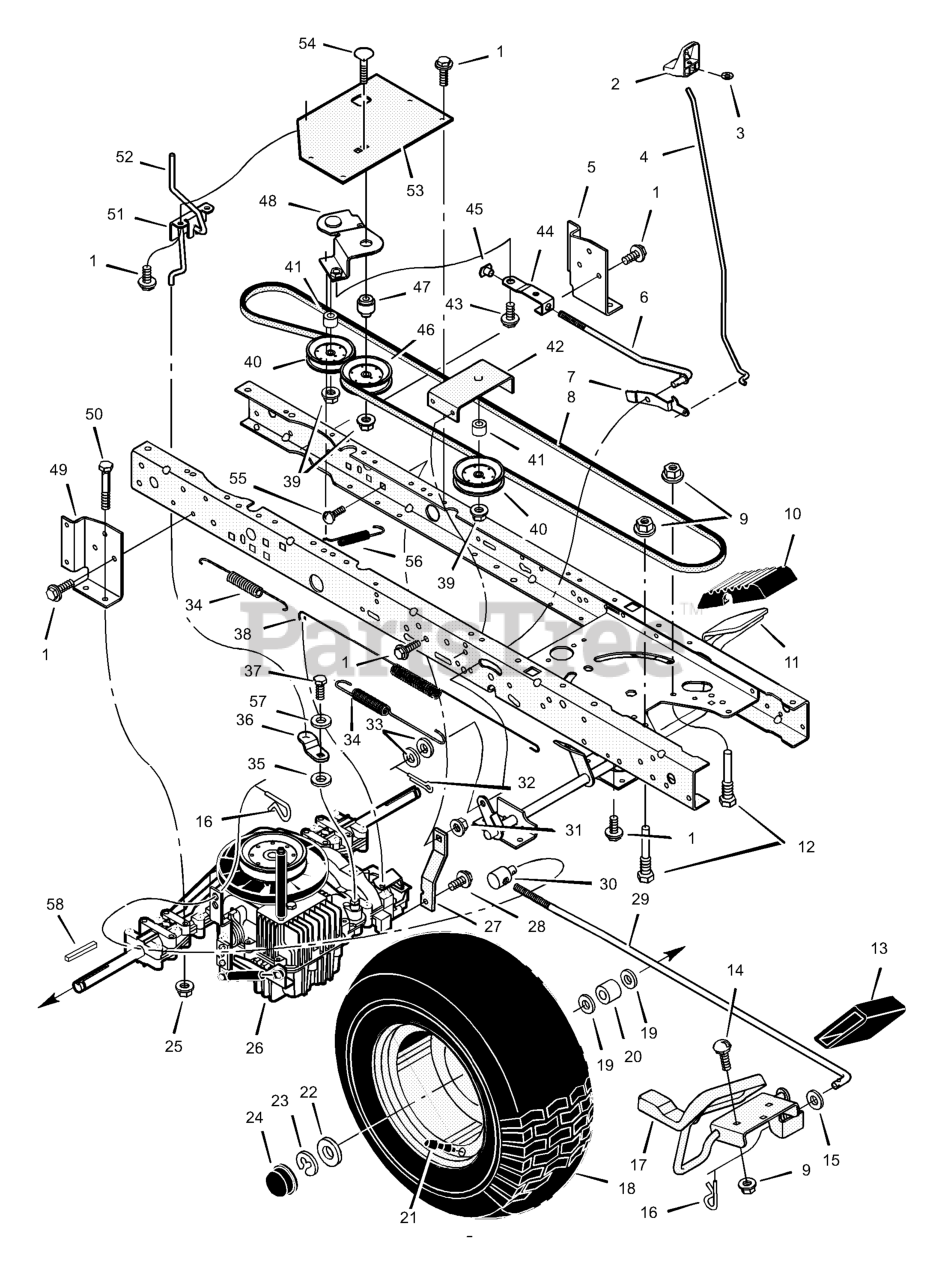

425605x683A - Stanley 42" Lawn Tractor (2001) > Parts Diagrams (10) > Drive Assembly

  • Title
26X249MA

1

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

095315MA

2

Knob, Parking Brake

Part# 095315MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.53

711691MA

3

Nut, Push

Part# 711691MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.21

1001217  Z

4

Rod, Parking Brake

Part# 1001217 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094185E701MA

5

Bracket, Left Transaxle

Part# 094185E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $46.73

1001013  Z

6

Rod, Clutch

Part# 1001013 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094045  Z

7

Latch, Parking Brake

Part# 094045 Z

OEM Warranty Repair Part for Murray

Currently unavailable

7769209

8

V-Belt, Drive

Part# 7769209

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $35.82

015X79MA

9

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

095220MA

10

Pad, Brake/Clutch

Part# 095220MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $12.78

1001190E700

11

Rod Assembly, Clutch/Brake

Part# 1001190E700

OEM Warranty Repair Part for Murray

Currently unavailable

094384MA

12

Screw, Guide

Part# 094384MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

094798

13

Pad, Pedal

Part# 094798

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $25.78

002X53MA

14

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

017X57MA

15

Washer

Part# 017X57MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

0031X4MA

16

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

1001231E700

17

Pedal Assembly, Hydro

Part# 1001231E700

OEM Warranty Repair Part for Murray

Currently unavailable

92300010

18

Wheel & Tire Assembly

Part# 92300010

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $263.08

024430

--

Tire ONLY

Part# 024430

OEM Warranty Repair Part for Murray

Currently unavailable

407065

--

Tube ONLY

Part# 407065

OEM Warranty Repair Part for Murray

Currently unavailable

17X160MA

19

Washer

Part# 17X160MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

690554  Z

20

Spacer

Part# 690554 Z (Superseded to 690554ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.35

024373MA

21

Stem, Valve

Part# 024373MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.94

17X195MA

22

Washer

Part# 17X195MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.50

0011X3MA

23

E-Ring

Part# 0011X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

094618MA

24

Cap, Hub

Part# 094618MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

015X88MA

25

Nut, Centerlock

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

-----

26

Transaxle

Part# -----

Not available

1001085E701

27

Strap, Torque

Part# 1001085E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.10

26X216MA

28

Screw

Part# 26X216MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.90

1001234  Z

29

Rod, Control

Part# 1001234 Z

OEM Warranty Repair Part for Murray

Currently unavailable

092132MA

30

Nut, Adjusting

Part# 092132MA (Superseded to 092132ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $13.01

015X84MA

31

Nut, Centerlock

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

030X20MA

32

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.80

017X48MA

33

Washer

Part# 017X48MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.71

165X92MA

34

Spring, Extension

Part# 165X92MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.56

17X148MA

35

Washer

Part# 17X148MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.44

1001086  Z

36

Arm, Disconnect

Part# 1001086 Z

Not available

06X105MA

37

Capscrew

Part# 06X105MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

165X150MA

38

Spring, Brake

Part# 165X150MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $21.23

015X98MA

39

Locknut, Flange

Part# 015X98MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

690409MA

40

Pulley, Idler

Part# 690409MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.35

690369MA

41

Spacer

Part# 690369MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

1001097E701

42

Bracket, Idler Assembly

Part# 1001097E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $20.24

009X49MA

43

Bolt, Shoulder

Part# 009X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

1001007  Z

44

Link, Clutch

Part# 1001007 Z

OEM Warranty Repair Part for Murray

Currently unavailable

1001014MA

45

Nut, Tee

Part# 1001014MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

690410MA

46

Pulley, Idler

Part# 690410MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.35

1001012MA

47

Bushing, Pivot

Part# 1001012MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.82

1001018  Z

48

Arm Assembly, Idler

Part# 1001018 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094184E701MA

49

Bracket, Right Transaxle

Part# 094184E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $46.73

01X155MA

50

Bolt, Hex

Part# 01X155MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.24

1001214  Z

51

Bracket, Disconnect

Part# 1001214 Z

OEM Warranty Repair Part for Murray

Currently unavailable

1001215  Z

52

Rod, Disconnect

Part# 1001215 Z

Not available

1001108E701

53

Bracket, Idler Pivot

Part# 1001108E701 (Superseded to 726355BMYP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $36.73

002X92

54

Bolt, Carriage

Part# 002X92 (Superseded to 002X92MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

002X78

55

Bolt, Carriage

Part# 002X78 (Superseded to 002X78MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

165X155MA

56

Spring, Clutch

Part# 165X155MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.49

017X38MA

57

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

021553MA

58

Key, Square

Part# 021553MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33
