425605x683A - Stanley 42" Lawn Tractor (2001)

42" Lawn Tractor

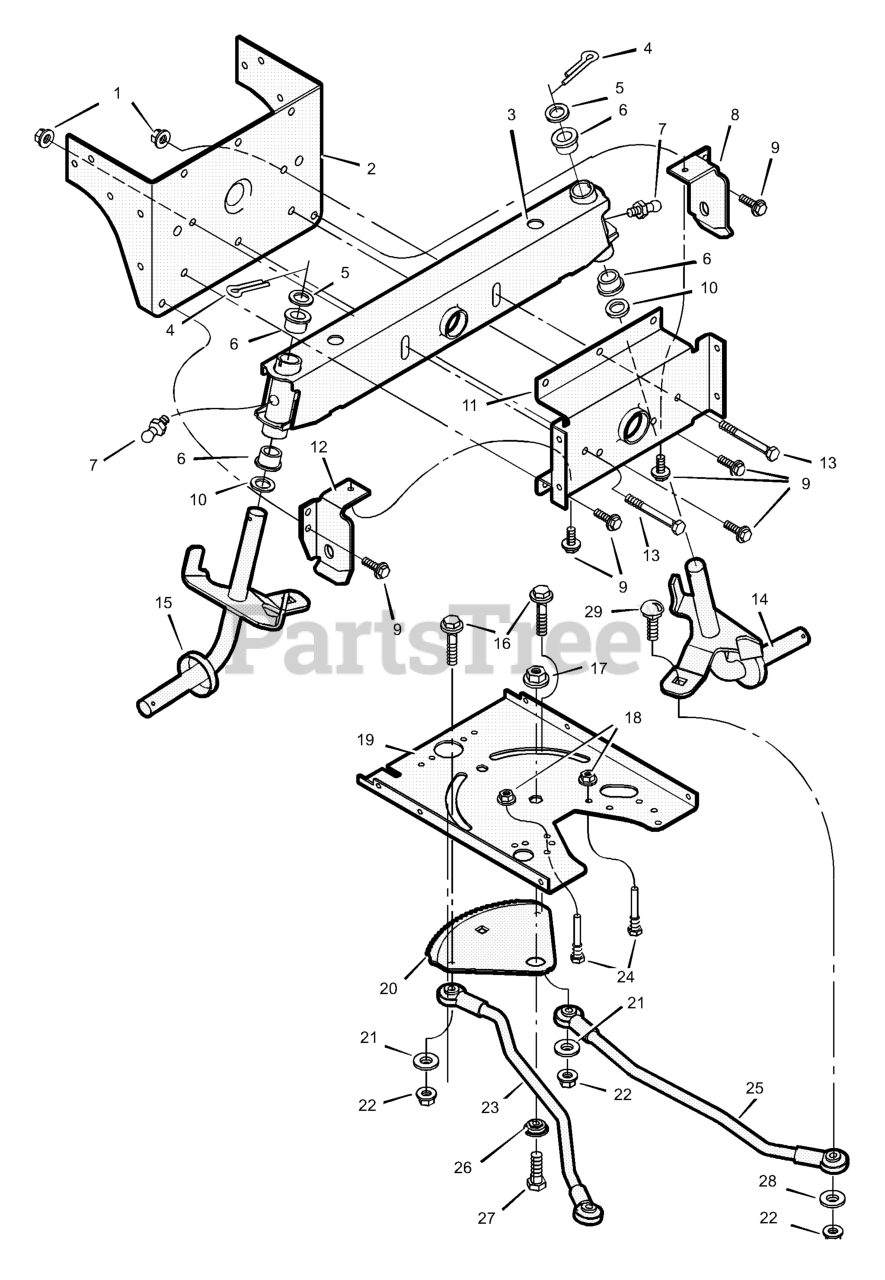

425605x683A - Stanley 42" Lawn Tractor (2001) > Parts Diagrams (10) > Front Axle

  • Title
15X118MA

1

Locknut, Flange

Part# 15X118MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

94013

2

Bracket, Rear Hanger

Part# 94013

OEM Warranty Repair Part for Murray

Not available

690211E700

3

Assembly, Axle (with Zerk)

Part# 690211E700

OEM Warranty Repair Part for Murray

Currently unavailable

030X49MA

4

Pin, Cotter

Part# 030X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

17X195MA

5

Washer

Part# 17X195MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.50

690150MA

6

Bearing, Spindle

Part# 690150MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.42

092530MA

7

Fitting, Grease

Part# 092530MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.49

094027E701MA

8

Hanger, Left Deck

Part# 094027E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $16.39

26X249MA

9

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

17X113MA

10

Washer

Part# 17X113MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

94007

11

Hanger, Axle

Part# 94007

OEM Warranty Repair Part for Murray

Currently unavailable

094026E701MA

12

Hanger, Right Deck

Part# 094026E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $16.39

01X146MA

13

Bolt, Hex

Part# 01X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

1001173E700

14

Assembly, Left Spindle

Part# 1001173E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001175E700

15

Assembly, Right Spindle

Part# 1001175E700

OEM Warranty Repair Part for Murray

Currently unavailable

009X62MA

16

Bolt, Shoulder

Part# 009X62MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.56

15X111MA

17

Locknut, Flange

Part# 15X111MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

015X79MA

18

Locknut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

1001121E700

19

Plate, Steering Mount

Part# 1001121E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001176

20

Gear, Sector

Part# 1001176

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $36.81

17X168ZMA

21

Washer

Part# 17X168ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.73

015X84MA

22

Nut, Flange Centerlock

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

1001178E700

23

Link, Drag -Right

Part# 1001178E700

OEM Warranty Repair Part for Murray

Currently unavailable

094384MA

24

Guide, Belt

Part# 094384MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

1001177E700

25

Link, Drag -Left

Part# 1001177E700

OEM Warranty Repair Part for Murray

Currently unavailable

094123MA

26

Bearing, Sector Gear

Part# 094123MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.11

001X84MA

27

Bolt, Hex

Part# 001X84MA (Superseded to 703585)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.08

17X104MA

28

Washer

Part# 17X104MA (Superseded to 710083MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.13

002X96MA

29

Bolt, Carriage

Part# 002X96MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92
