425605x683A - Stanley 42" Lawn Tractor (2001)

42" Lawn Tractor

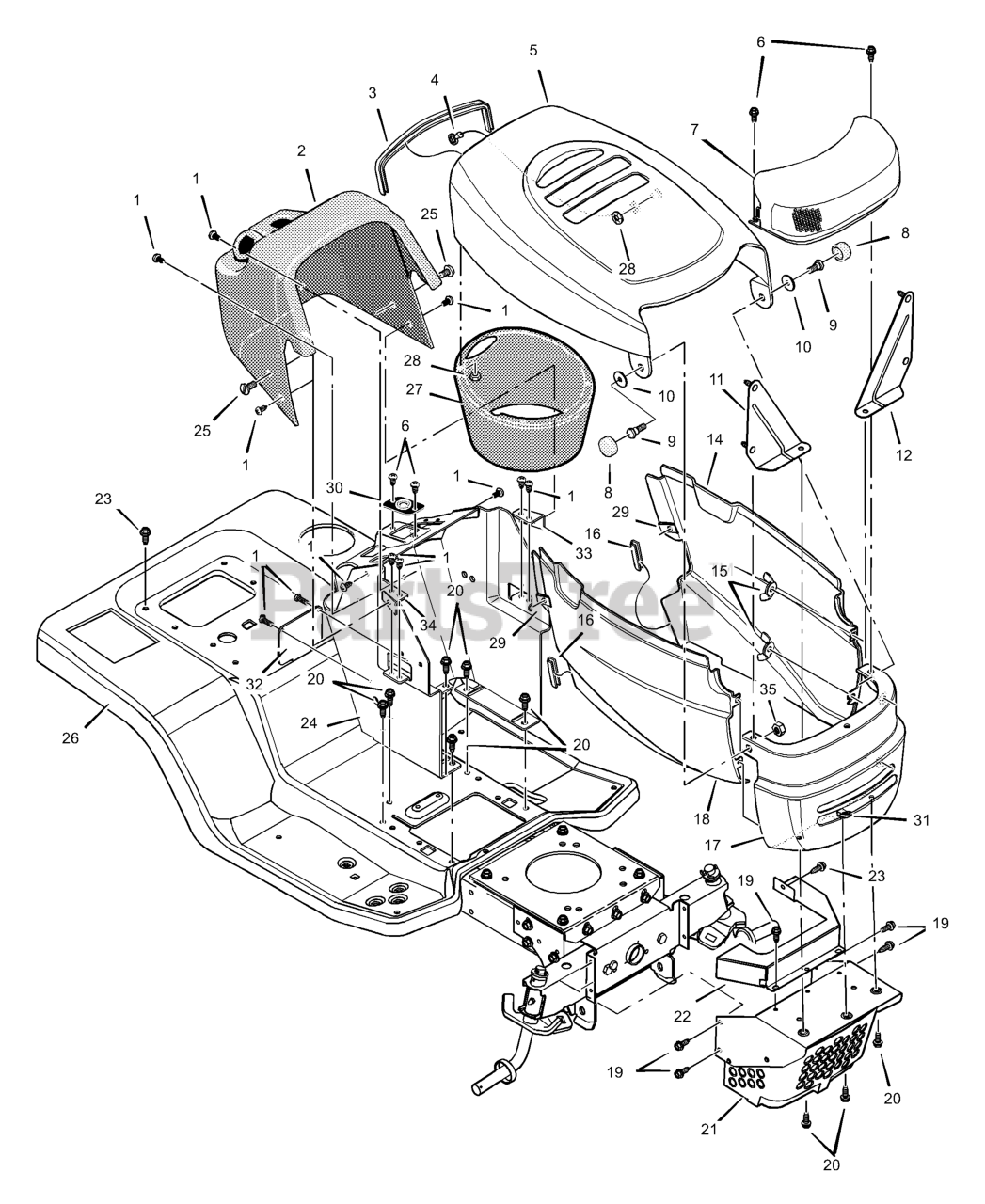

425605x683A - Stanley 42" Lawn Tractor (2001) > Parts Diagrams (10) > Hood & Grille

  • Title
26X270

1

Screw

Part# 26X270 (Superseded to 26X270MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

1001113

2

Dash

Part# 1001113

OEM Warranty Repair Part for Murray

Currently unavailable

7601029

3

Trim 2.23"

Part# 7601029

Note: (Must cut to length)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.02

643129

4

Cable

Part# 643129

OEM Warranty Repair Part for Murray

Not available

1001186E010

5

Hood Assembly

Part# 1001186E010

OEM Warranty Repair Part for Murray

Not available

26X238MA

6

Screw

Part# 26X238MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

95234

7

Lens & Reflector Assembly

Part# 95234

OEM Warranty Repair Part for Murray

Not available

690113MA

8

Cap, Pivot

Part# 690113MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.79

009X49MA

9

Bolt, Shoulder

Part# 009X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

690114

10

Base, Pivot

Part# 690114

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.20

1001169E700

11

Brace, Right Grille Assembly

Part# 1001169E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001171E700

12

Brace, Left Grille Assembly

Part# 1001171E700

OEM Warranty Repair Part for Murray

Currently unavailable

94457E700

14

Panel, Left Side

Part# 94457E700

OEM Warranty Repair Part for Murray

Not available

014X79MA

15

Wingnut

Part# 014X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

7601029

16

Trim 0.39"

Part# 7601029

Note: (Must Cut to Length)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.02

1001126E700

17

Grille

Part# 1001126E700

OEM Warranty Repair Part for Murray

Currently unavailable

094458E701

18

Panel, Right Side

Part# 094458E701

OEM Warranty Repair Part for Murray

Not available

26X277MA

19

Screw

Part# 26X277MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.38

26X249MA

20

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

1001191

21

Guard Assembly, Muffler

Part# 1001191

OEM Warranty Repair Part for Murray

Not available

1001155

22

Shield, Upper Heat

Part# 1001155

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $83.59

26X263MA

23

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

095173E701

24

Console

Part# 095173E701

OEM Warranty Repair Part for Murray

Currently unavailable

26X239MA

25

Screw

Part# 26X239MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.98

1001099E700

26

Deck Seat

Part# 1001099E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001157

27

Plenum

Part# 1001157

OEM Warranty Repair Part for Murray

Not available

028X49MA

28

Retainer, Push

Part# 028X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.92

028X23MA

29

Cap, Push

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

094075

30

Bearing, Steering

Part# 094075

OEM Warranty Repair Part for Murray

Currently unavailable

028X57

31

U-Nut

Part# 028X57

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.14

093007E701MA

32

Panel, Access

Part# 093007E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $21.82

094464

33

Bracket, Right Console

Part# 094464

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.73

094465

34

Bracket, Left Console

Part# 094465

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.73

015X84MA

35

Nut

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

F-010778L

--

Book, Instruction

Part# F-010778L

OEM Warranty Repair Part for Murray

Currently unavailable
