425605x683A - Stanley 42" Lawn Tractor (2001)

42" Lawn Tractor

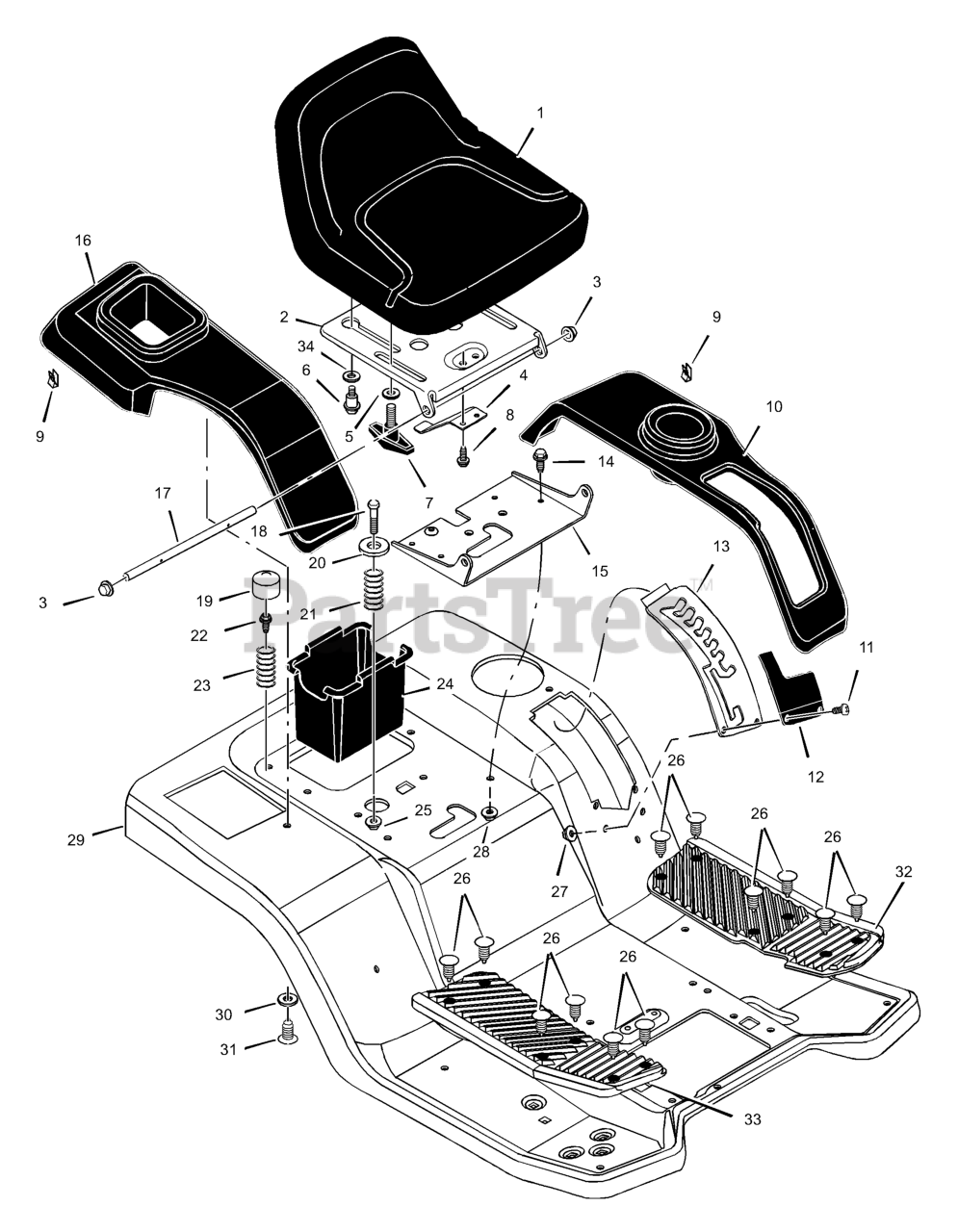

425605x683A - Stanley 42" Lawn Tractor (2001) > Parts Diagrams (10) > Rear Body

  • Title
1001244

1

Seat

Part# 1001244

OEM Warranty Repair Part for Murray

Not available

094154E700

2

Support, Seat

Part# 094154E700

OEM Warranty Repair Part for Murray

Currently unavailable

028X23MA

3

Cap, Push

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

094057MA

4

Spring, Leaf

Part# 094057MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.49

017X47MA

5

Washer

Part# 017X47MA

OEM Warranty Repair Part for Murray

Not available

009X56MA

6

Bolt, Shoulder

Part# 009X56MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

1001054MA

7

Bolt, Wing

Part# 1001054MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.67

26X229MA

8

Screw

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.03

1001218MA

9

U-Clip

Part# 1001218MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

1001095

10

Panel, Shoulder -Left

Part# 1001095

OEM Warranty Repair Part for Murray

Not available

009X47MA

11

Bolt, Shoulder

Part# 009X47MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

094483

12

Cover, Detent Lockout

Part# 094483

OEM Warranty Repair Part for Murray

Currently unavailable

094194E701MA

13

Plate, Lift Detent

Part# 094194E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $39.96

001X45MA

14

Bolt, Hex

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.02

094153E700MA

15

Bracket, Pivot

Part# 094153E700MA (Superseded to 1001648E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $38.38

1001094

16

Panel, Shoulder -Right

Part# 1001094

OEM Warranty Repair Part for Murray

Not available

094156  Z

17

Rod, Pivot

Part# 094156 Z

Not available

009X55MA

18

Bolt, Shoulder

Part# 009X55MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

020107MA

19

Cap

Part# 020107MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.15

094155  Z

20

Washer, Cup

Part# 094155 Z

OEM Warranty Repair Part for Murray

Currently unavailable

164X31

21

Spring, Compression

Part# 164X31 (Superseded to 164X31MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.83

26X249MA

22

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

164X30MA

23

Spring, Compression

Part# 164X30MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $12.83

690424MA

24

Container, Battery

Part# 690424MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $34.24

015X89MA

25

Nut, Centerlock

Part# 015X89MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

0193X1MA

26

Fastener, Panel

Part# 0193X1MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

015X81MA

27

Locknut

Part# 015X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

15X123MA

28

Nut, Nylock

Part# 15X123MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

1001099E700

29

Deck, Seat

Part# 1001099E700

OEM Warranty Repair Part for Murray

Currently unavailable

17X207

30

Washer

Part# 17X207

OEM Warranty Repair Part for Murray

Not available

26X284MA

31

Screw

Part# 26X284MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

095408

32

Mat, Left

Part# 095408 (Superseded to 095408MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $27.30

095409

33

Mat, Right

Part# 095409 (Superseded to 095409MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $29.35

17X102MA

34

Washer

Part# 17X102MA (Superseded to 703128)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.52
