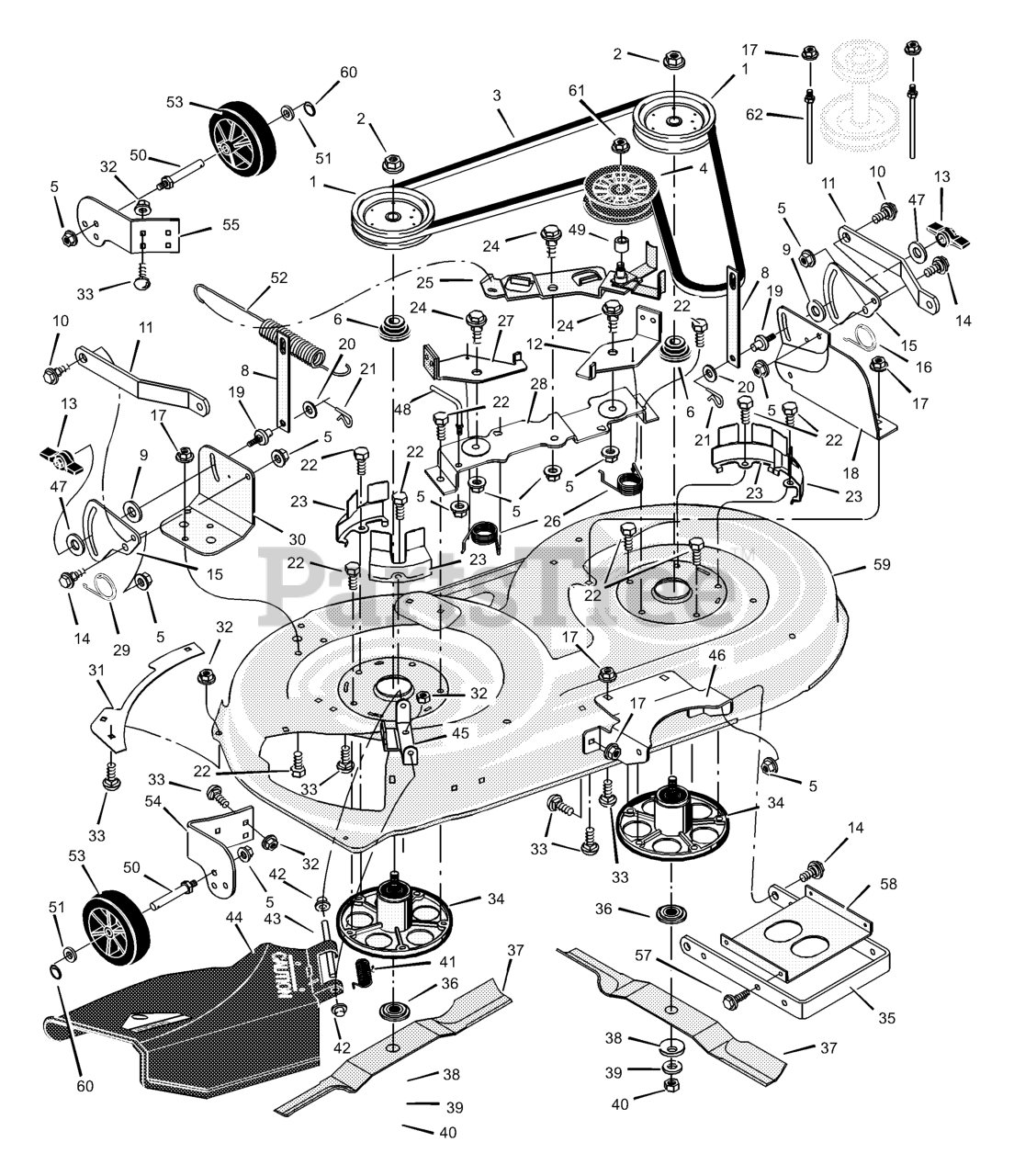

425614A - Murray 42" Lawn Tractor (2002) Mower Housing Parts Diagram

42" Lawn Tractor

Mower Housing Parts Diagram

  • Title

1

Murray 494199MA

Pulley, Jackshaft

$29.99

$

Usually ships in 2-12 days

0

10

Murray 09T502-3141-H1

* ENGINE, Briggs & Stratton Series 450

$

$

Currently unavailable

2

Murray 15X121

Nut, Hex

$9.99

$

In Stock, only 1 left!

0

11

Murray EE14444A

SPACER, Throttle Mount

$

$

Currently unavailable

3

Murray 037X88MA

Belt, Mower Drive

$33.99

$

In Stock, Qty 7

0

12

Murray HA20435D

SCREW, Hex Head Phillips, 8 x 35

$

$

Currently unavailable

4

Murray 690387MA

Pulley, Idler

$

$

Not available

20

Murray EN73043AZ

SPACER, 20mm

$

$

Currently unavailable

5

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Murray EN73041AZ

SPACER RING

$

$

Currently unavailable

6

Murray 1001197MA

Spacer, Pulley

Note: (Included with Ref. No. 34)

$12.99

$

In Stock, only 2 left!

0

80

Murray HA21318D

BOLT, Taptite, 3/8 UNC x 50

$

$

Currently unavailable

8

Murray 690212E700

Link, Lift

$

$

Currently unavailable

90

Murray VV17130D

SADDLE PLATE

$

$

Currently unavailable

9

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 10

0

270

Murray EE14417A

SLEEVE, Locking, 4 Stroke

$

$

Currently unavailable

10

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

290

Murray CA09495GZ

BLADE Disc, Oval

$

$

Currently unavailable

11

Murray 094055E700

Bracket, Suspension

$

$

Currently unavailable

300

BLADE, Low Profile

$

$

Not available

12

Murray 094049E700

Pad Assembly, Left Brake

$

$

Currently unavailable

13

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, Qty 17

0

15

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

Spring

$4.99

$

In Stock, only 3 left!

0

17

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 094192E700

Bracket, Suspension

$

$

Currently unavailable

19

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

20

Murray 017X91MA

Washer

$5.49

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 094051E701MA

Cover, Pulley
(Superseded to 7300859BMYP)

$31.99

$

In Stock, Qty 7

0

24

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

25

Murray 690408E701MA

Arm, Idler
(Superseded to 7400245BMYP)

$213.99

$

In Stock, only 1 left!

0

26

Murray 166X41MA

Spring

$4.99

$

Usually ships in 2-12 days

0

27

Murray 094047E700

Pad Assembly, Right Brake

$

$

Currently unavailable

28

Murray 094193E701MA

Bracket, Brake

$58.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

Spring

$4.99

$

In Stock, Qty 10

0

30

Murray 094191E700

Bracket, Suspension

$46.99

$

Usually ships in 2-12 days

0

41

Murray 0166X4MA

Spring

$6.49

$

In Stock, only 1 left!

0

42

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707SE

Deflector Assembly

$

$

Currently unavailable

45

Murray 094956E700

Bracket, Deflector Hinge

$

$

Currently unavailable

46

Murray 094686E700

Bracket, Front Hanger

$

$

Currently unavailable

47

Murray 017X45MA

Washer

$

$

Not available

48

Murray 094781MA

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

49

Murray 690369MA

Spacer

$5.99

$

In Stock, only 4 left!

0

50

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 2 left!

0

51

Murray 017X91MA

Washer

$5.49

$

In Stock, only 2 left!

0

52

Murray 165X119MA

Spring, Extension

$13.99

$

In Stock, only 3 left!

0

53

Murray 092683MA

Wheel, Gage

$15.99

$

In Stock, Qty 9

0

54

Murray 1001260E701MA

Bracket, Right Wheel

$28.99

$

Usually ships in 2-12 days

0

55

Murray 092423E700

Bracket, Left Wheel

$

$

Currently unavailable

57

Murray 26X249MA

Screw

$

$

Not available

58

Murray 094604E700

Stiffener

$

$

Currently unavailable

60

Murray 031X11MA

Ring, Locking

$4.49

$

In Stock, only 2 left!

0

59

Murray 094814E701MA

Housing, Blade, Complete (NO LONGER AVAILABLE)

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56)

$

$

Not available

59

Murray 094188E701MA

Housing, Blade (Housing Only)

$

$

Not available

61

Murray 015X98MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

62

Murray 094066MA

Guide, Belt

$14.99

$

Usually ships in 2-12 days

0
