42561x8B - Scotts 42" Lawn Tractor (1997) Pre-painted Blade Housing Assembly Parts Diagram

42" Lawn Tractor

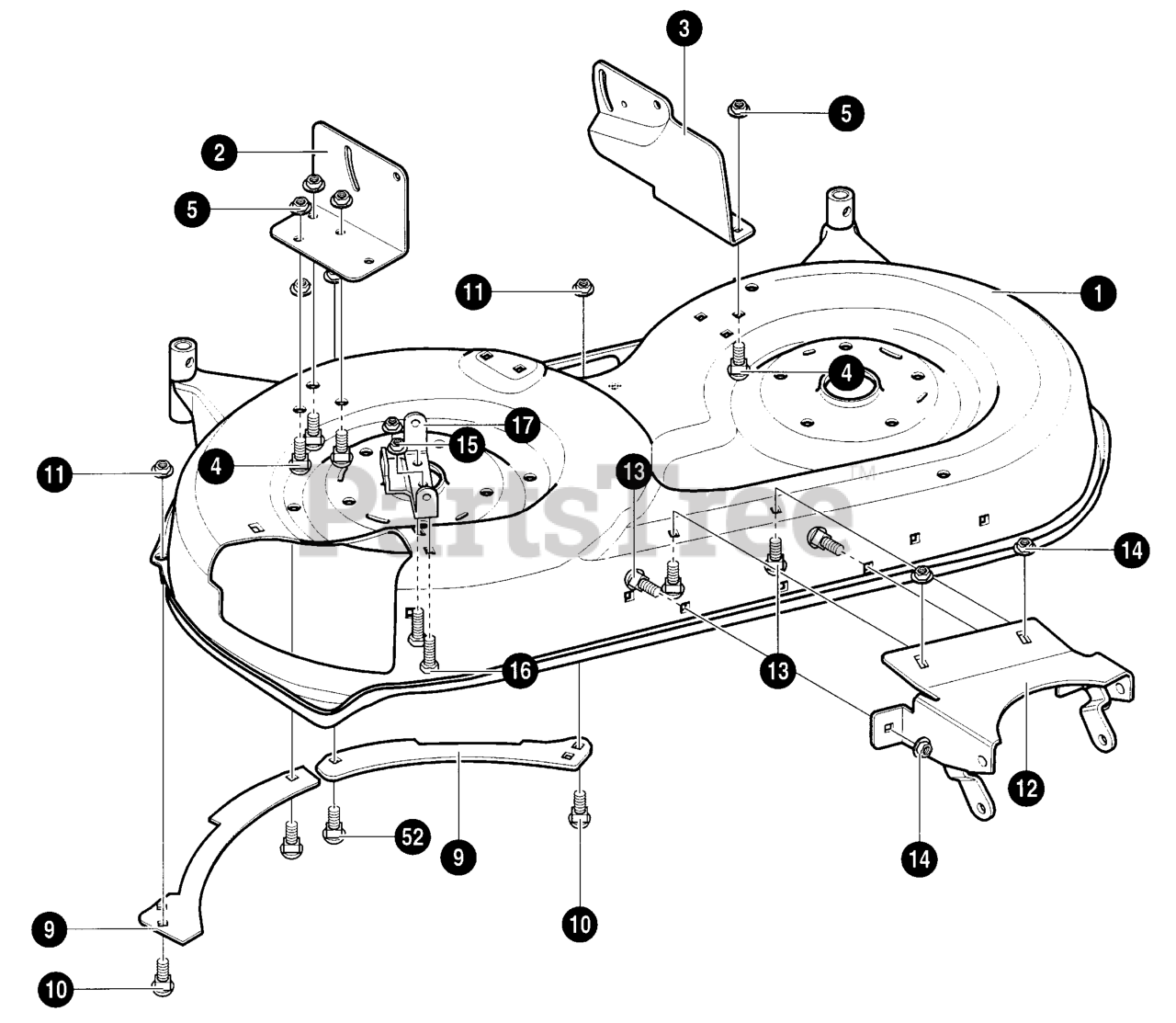

Pre-painted Blade Housing Assembly Parts Diagram

  • Title

1

Murray 710144E717

ASSY BLD HSING 42"

$

$

Currently unavailable

2

Murray 94191E717

BRACKET, DECK RH

$

$

Currently unavailable

3

Murray 94192E717

BRACKET, DECK LH

$

$

Currently unavailable

4

Murray 002X53MA

BOLT, 5/16-18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

5

Murray 015X79MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 92426E700

TOEGUARD, FLANGE

$3.99

$

Usually ships in 2-12 days

0

10

Murray 002X53MA

BOLT, 5/16-18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

11

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 710143E717

ASSY FRONT BRACKET ROLLER

$30.99

$

Usually ships in 2-12 days

0

13

Murray 002X53MA

BOLT, 5/16-18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

14

Murray 015X79MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 94956

BRACKET, CHUTE
(Superseded to 094956E701MA)

$22.99

$

In Stock, only 2 left!

0

16

Murray 002X53MA

BOLT, 5/16-18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

17

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
