425620x99B - Briggs & Stratton 42" Lawn Tractor (2004) (AAFES) Chassis & Hood Parts Diagram

42" Lawn Tractor

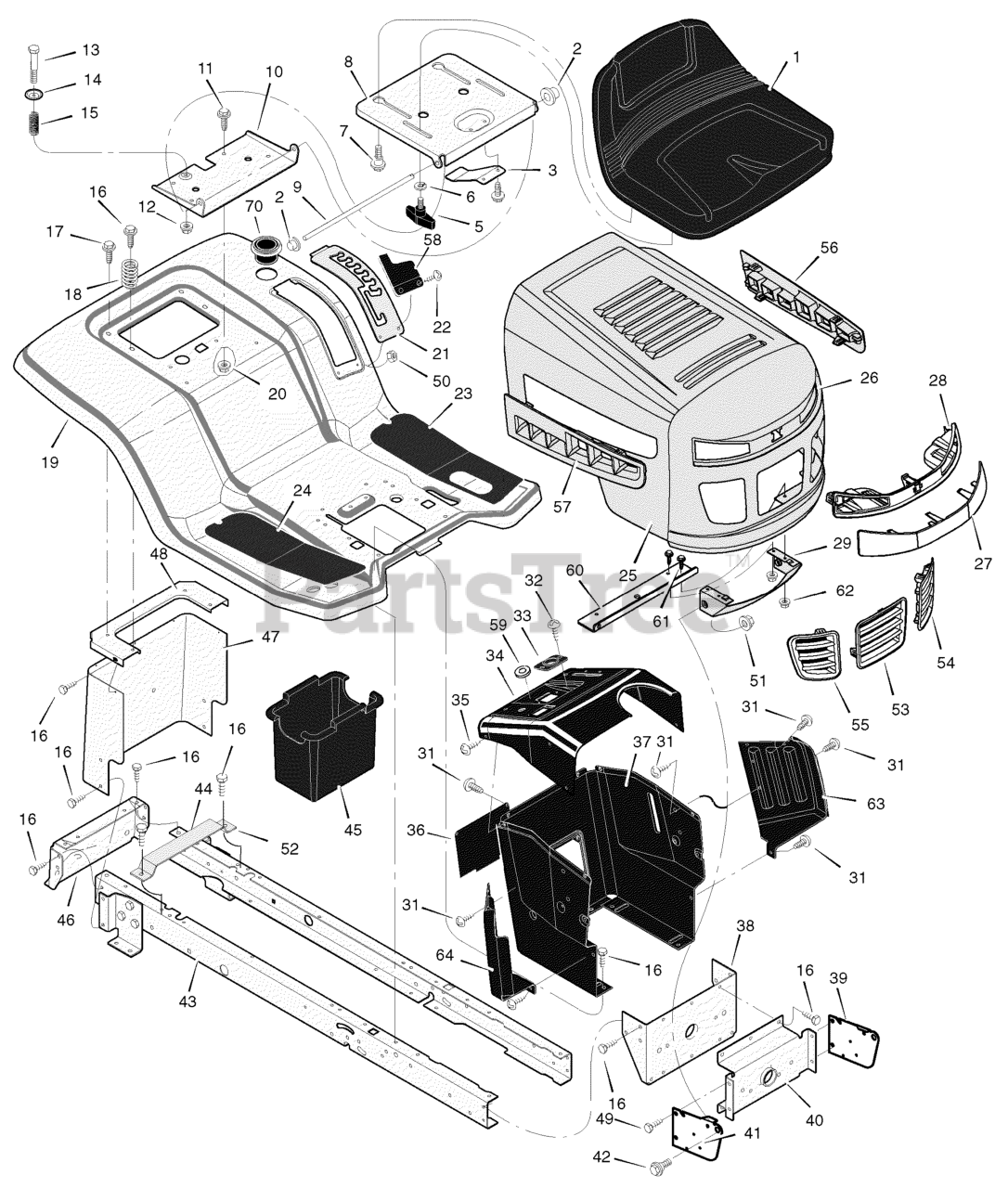

Chassis & Hood Parts Diagram

  • Title

1

Murray 1001028

Seat

$

$

Not available

2

Murray 028X23

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

3

Murray 94057

Spring
(Superseded to 94124)

$14.99

$

In Stock, only 2 left!

0

4

Murray 26X229

Screw
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054

Bolt, Wing
(Superseded to 1001054MA)

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56

Bolt, Shoulder
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701

Support, Seat

$

$

Not available

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

12

Murray 015X89

Nut
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55

Bolt, Shoulder
(Superseded to 009X55MA)

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

17

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30

Spring
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001556E700

Deck, Seat

$

$

Not available

20

Murray 15X123

Nut
(Superseded to 15X123MA)

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094194E701

Plate, Index

$50.99

$

In Stock, only 1 left!

0

22

Murray 009X47

Screw
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 94383

Mat, Left

$

$

Not available

24

Murray 94382

Mat, Right
(Superseded to 690334)

$3.99

$

Usually ships in 2-12 days

0

25

Murray 1001812E700

Hood

$

$

Not available

26

Murray 1001813E700

Grille

$

$

Not available

27

Murray 1001820

Lens

$53.99

$

Usually ships in 2-12 days

0

28

Murray 1001819

Housing, Light

$36.99

$

Usually ships in 2-12 days

0

29

Murray 1001799

Bracket, Lower Pivot

$

$

Currently unavailable

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

32

Murray 26X238

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491

Bearing, Steering
(Superseded to 1001491MA)

$5.49

$

Usually ships in 2-12 days

0

34

Murray 1001594E700

Dash

$125.99

$

Usually ships in 2-12 days

0

35

Murray 26X201

Screw
(Superseded to 26X201MA)

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E700

Panel, Access

$

$

Currently unavailable

37

Murray 095318E700

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E701

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094085E701MA

Support, Left Grille

$

$

Not available

40

Murray 094007E701

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 094084E701MA

Support, Right Grille

$

$

Not available

42

Murray 009X58

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

43

Murray 1001268E701

Frame, Right

$

$

Not available

44

Murray 1001269E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424

Container, Battery

$8.99

$

Usually ships in 2-12 days

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690218E700

Plate, Rear

$

$

Not available

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

49

Murray 26X277

Screw
(Superseded to 26X277MA)

$4.99

$

Usually ships in 2-12 days

0

50

Murray 015X81

Nut
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

51

Murray 15X124

Nut

$

$

Not available

52

Murray 690482E701

Support, Battery

$

$

Not available

53

Murray 1001816

Insert, Center Grille

$10.99

$

Usually ships in 2-12 days

0

54

Murray 1001817

Insert, Left Grille

$5.99

$

Usually ships in 2-12 days

0

55

Murray 1001818

Insert, Right Grille

$6.49

$

Usually ships in 2-12 days

0

56

Murray 1001814

Insert, Left Hood

$30.99

$

Usually ships in 2-12 days

0

57

Murray 1001815

Insert, Right Hood

$30.99

$

Usually ships in 2-12 days

0

58

Murray 94680

Cover, Detent
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

59

Murray 1001755

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

60

Murray 1001921

Bracket, Support

$

$

Currently unavailable

61

Murray 0025X3

Screw, Hex
(Superseded to 0025X3MA)

$4.99

$

Usually ships in 2-12 days

0

62

Murray 015X82

Nut

$3.49

$

Usually ships in 2-12 days

0

63

Murray 95218

Panel, Left Side

$38.99

$

Usually ships in 2-12 days

0

64

Murray 95217

Panel, Right Side

$38.99

$

Usually ships in 2-12 days

0

70

Murray 1001542

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray F-040740L

Instruction Book & Parts List

$

$

Currently unavailable
