425624x18A - Murray 42" Lawn Tractor (2005) Engine Mount Parts Diagram

42" Lawn Tractor

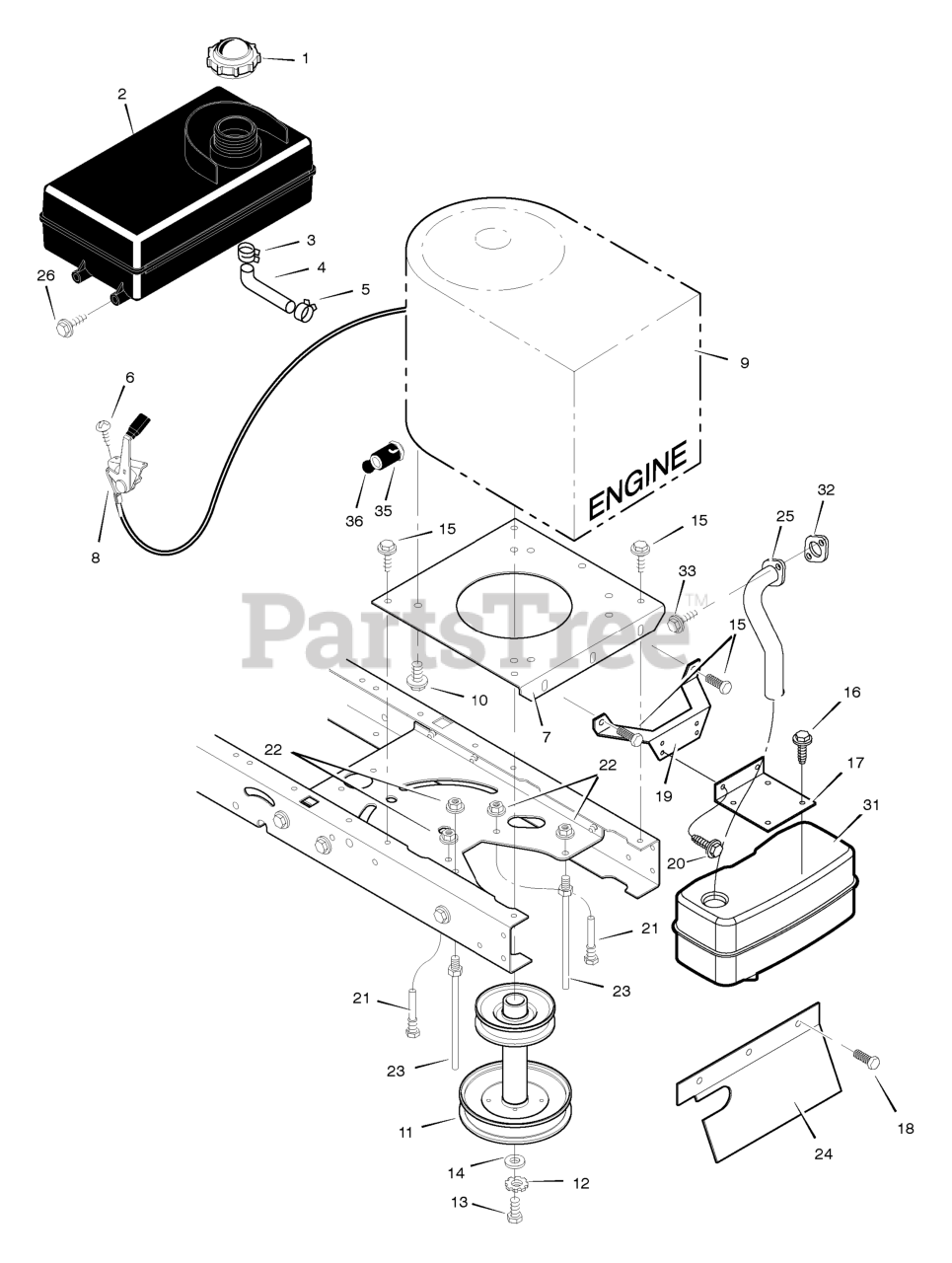

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 12

0

2

Murray 690289MA

Fuel Tank
(Superseded to 7601093MA)

$170.99

$

In Stock, only 4 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

In Stock, only 1 left!

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 1001224

Throttle Control

$

$

Not available

9

Engine, Briggs & Stratton *

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690440 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, only 1 left!

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

17

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

18

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

19

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

20

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

21

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79 Z

Nut, Flange

$

$

Currently unavailable

23

Murray 094066MA

Guide, Belt

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1001644E701

Shield, Upper Heat

$46.99

$

Usually ships in 2-12 days

0

25

Murray 1001496

Exhaust Tube, Single

$

$

Not available

26

Murray 26X253MA

Screw

$4.49

$

Usually ships in 2-12 days

0

31

Murray 094654MA

Muffler

$

$

Not available

32

Murray 711851MA

Gasket

$4.49

$

Usually ships in 2-12 days

0

33

Murray 06X103MA

Screw

$6.49

$

Usually ships in 2-12 days

0

35

Murray 325547MA

Valve, Oil Drain

$

$

Not available

36

Murray 327422

Cap, Oil Drain

$

$

Not available
