425638x692A - Stanley 42" Lawn Tractor (2003) Hood & Grill Parts Diagram

42" Lawn Tractor

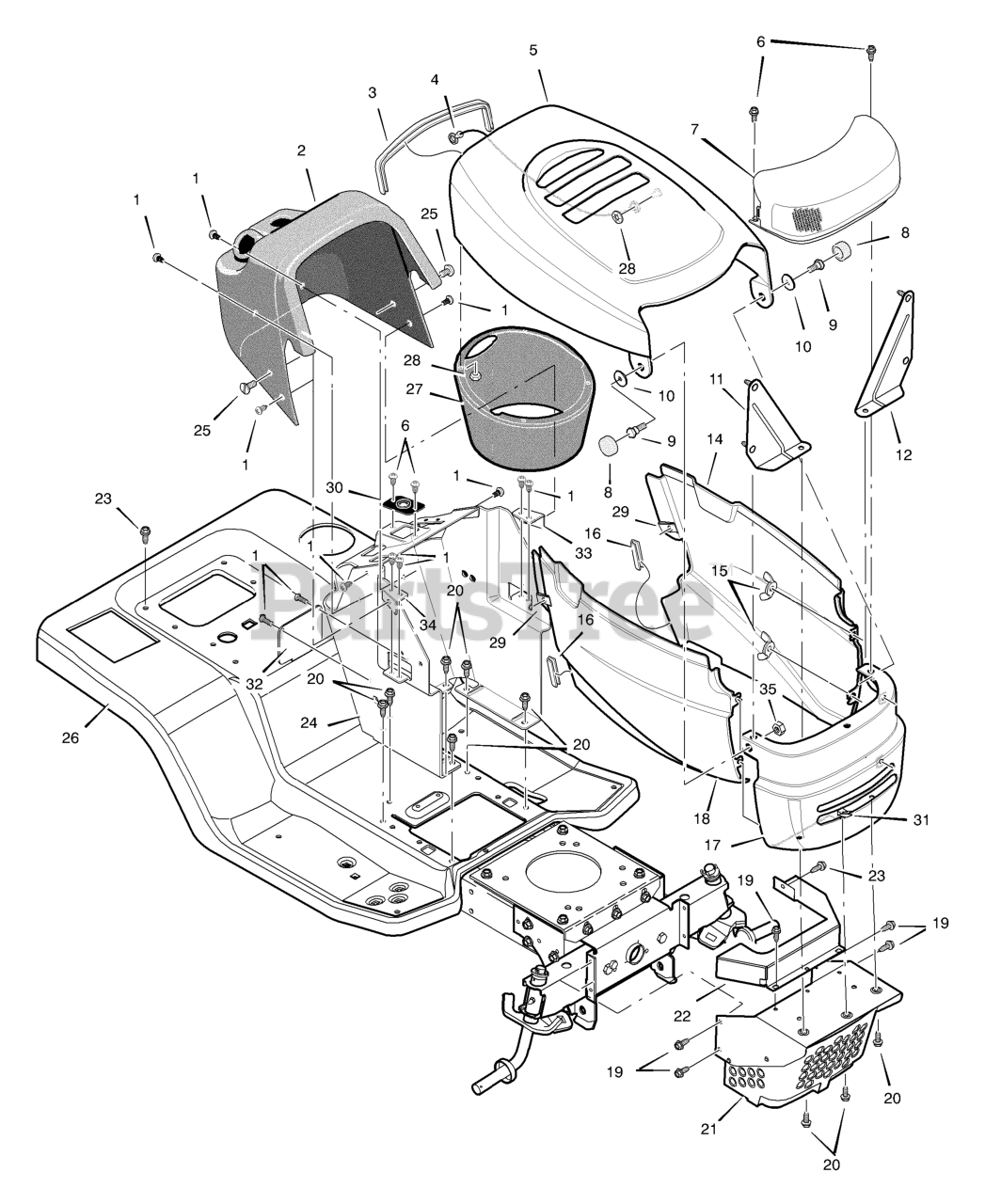

Hood & Grill Parts Diagram

  • Title

1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

2

Murray 1001113

Dash

$

$

Currently unavailable

3

Murray 7601029

Trim

$5.99

$

Usually ships in 2-12 days

0

4

Murray 643129

Cable

$

$

Not available

5

Murray 1001186E700

Hood Assembly

$

$

Currently unavailable

6

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

7

Murray 95234

Lens & Reflector Assembly
(Superseded to 95234GS)

$45.99

$

Usually ships in 2-12 days

0

8

Murray 690113MA

Cap, Pivot

$4.99

$

Usually ships in 2-12 days

0

9

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

10

Murray 690114

Base, Pivot

$5.49

$

Usually ships in 2-12 days

0

11

Murray 1001169E701

Brace, Right Grille Assembly

$

$

Currently unavailable

12

Murray 1001171E701

Brace, Left Grille Assembly

$23.99

$

Usually ships in 2-12 days

0

14

Murray 094457E700

Panel, Left Side

$

$

Currently unavailable

15

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

16

Murray 7601029

Trim

$5.99

$

Usually ships in 2-12 days

0

17

Murray 1001126E701

Grille

$

$

Not available

18

Murray 094458E701

Panel, Right Side

$

$

Not available

19

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

20

Murray 26X249MA

Screw

$

$

Not available

21

Murray 1001191

Guard Assembly, Muffler

$

$

Not available

22

Murray 1001644

Shield, Upper Heat

$46.99

$

Usually ships in 2-12 days

0

23

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

24

Murray 095173E701

Console

$

$

Currently unavailable

25

Murray 26X239MA

Screw

$4.49

$

In Stock, only 2 left!

0

26

Murray 1001099E700

Deck Seat

$

$

Currently unavailable

27

Murray 1001157

Plenum

$

$

Not available

28

Murray 028X49MA

Retainer, Push

$3.99

$

In Stock, Qty 13

0

29

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 16

0

30

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

31

Murray 028X57

U-Nut

$4.99

$

Usually ships in 2-12 days

0

32

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

33

Murray 094464

Bracket, Right Console

$4.49

$

Usually ships in 2-12 days

0

34

Murray 094465

Bracket, Left Console

$4.49

$

Usually ships in 2-12 days

0

35

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

--

Murray F-030759L

Book, Instruction

$

$

Currently unavailable
