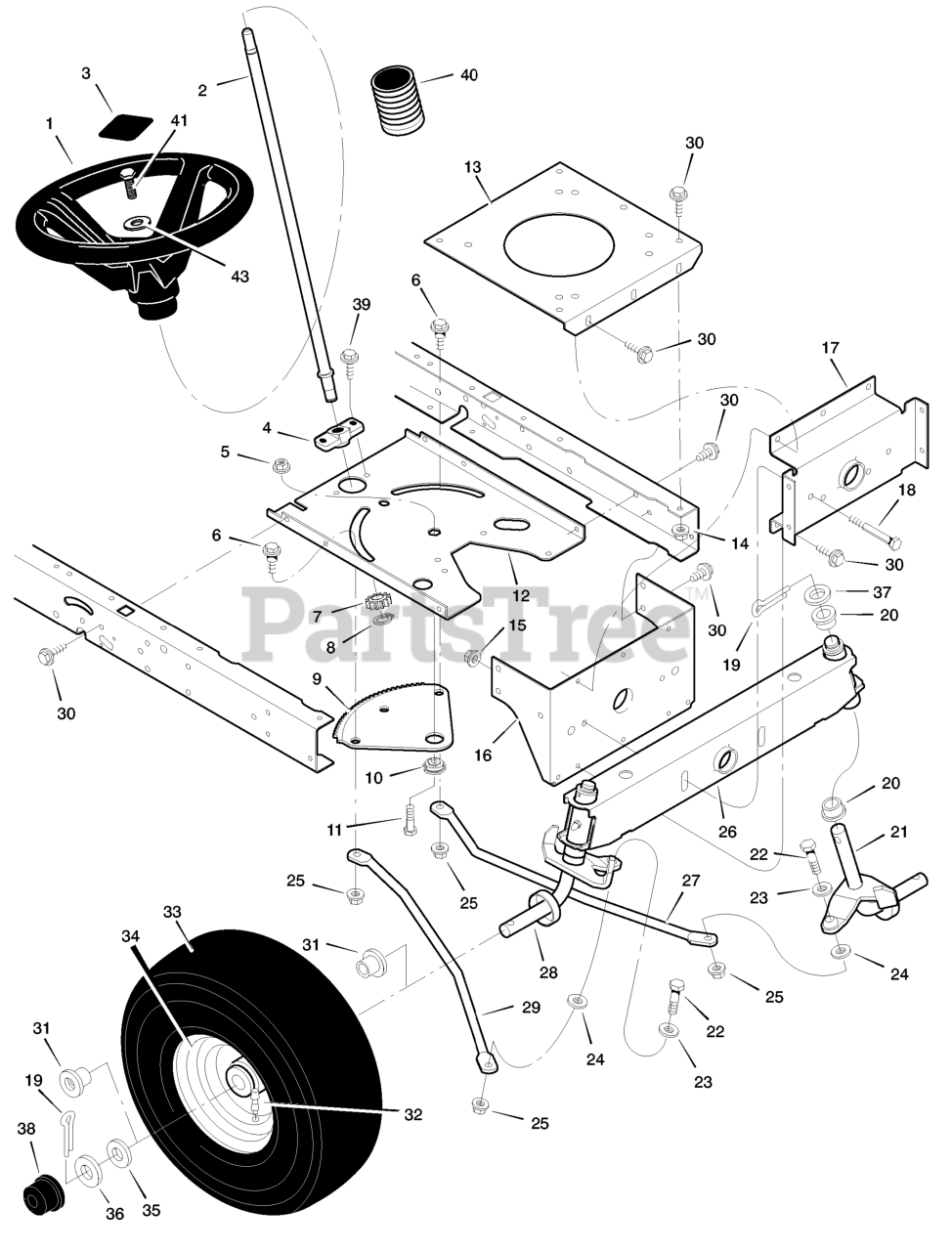

42575x81A - Yard King 42" Lawn Tractor (2000) Steering Parts Diagram

42" Lawn Tractor

Steering Parts Diagram

  • Title

1

Murray 095185MA

Wheel, Steering
(Superseded to 1687602YP)

$110.99

$

In Stock, only 1 left!

0

2

Murray 690626

Post, Steering

$154.99

$

Usually ships in 2-12 days

0

3

Murray 711326MA

Insert, Steering Wheel

$7.49

$

Usually ships in 2-12 days

0

4

Murray 094124MA

Bearing

$14.99

$

In Stock, only 2 left!

0

5

Murray 15X111MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 12

0

7

Murray 690183MA

Gear, Pinion

$

$

Not available

8

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 8

0

9

Murray 094121E700

Gear, Sector

$

$

Currently unavailable

10

Murray 094123MA

Bearing

$12.99

$

In Stock, only 2 left!

0

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

12

Murray 690551E700

Plate, Steering

$

$

Currently unavailable

13

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

15

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 094013E700

Bracket, Hanger

$

$

Currently unavailable

17

Murray 094007E700

Axle, Hanger

$

$

Currently unavailable

18

Murray 01X146MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

20

Murray 690150MA

Bearing

$8.99

$

In Stock, only 4 left!

0

21

Murray 094576E700

Spindle Assembly, Left

$

$

Currently unavailable

22

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

23

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53 Z

Washer

$

$

Currently unavailable

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 690210MA

Axle Assembly
(Superseded to 7601037MA)

$347.99

$

Usually ships in 2-12 days

0

27

Murray 095329E700

Drag Link, Left

$20.99

$

Usually ships in 2-12 days

0

28

Murray 094575E700

Spindle Assembly, Right

$

$

Currently unavailable

29

Murray 095328E700

Drag Link, Right

$

$

Currently unavailable

30

Murray 26X249MA

Screw

$

$

Not available

31

Murray 091334

Bearing, Wheel

$

$

Not available

32

Murray 024373MA

Stem, Valve

$

$

Not available

33

Murray 024380

Tire *

$

$

Not available

--

Murray 407924

Tube

$

$

Not available

34

Murray 094581601MA

Wheel and Tire Assembly
(Superseded to 094581650MA)

$159.99

$

In Stock, only 1 left!

0

35

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

36

Murray 17X192MA

Washer

$4.99

$

In Stock, Qty 5

0

37

Murray 17X113MA

Washer

$3.99

$

In Stock, only 2 left!

0

38

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0

39

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

40

Murray 092059MA

Bellows

$9.49

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

43

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0
