42575x81B - Yard King 42" Lawn Tractor (2001) Mower Housing Suspension Parts Diagram

42" Lawn Tractor

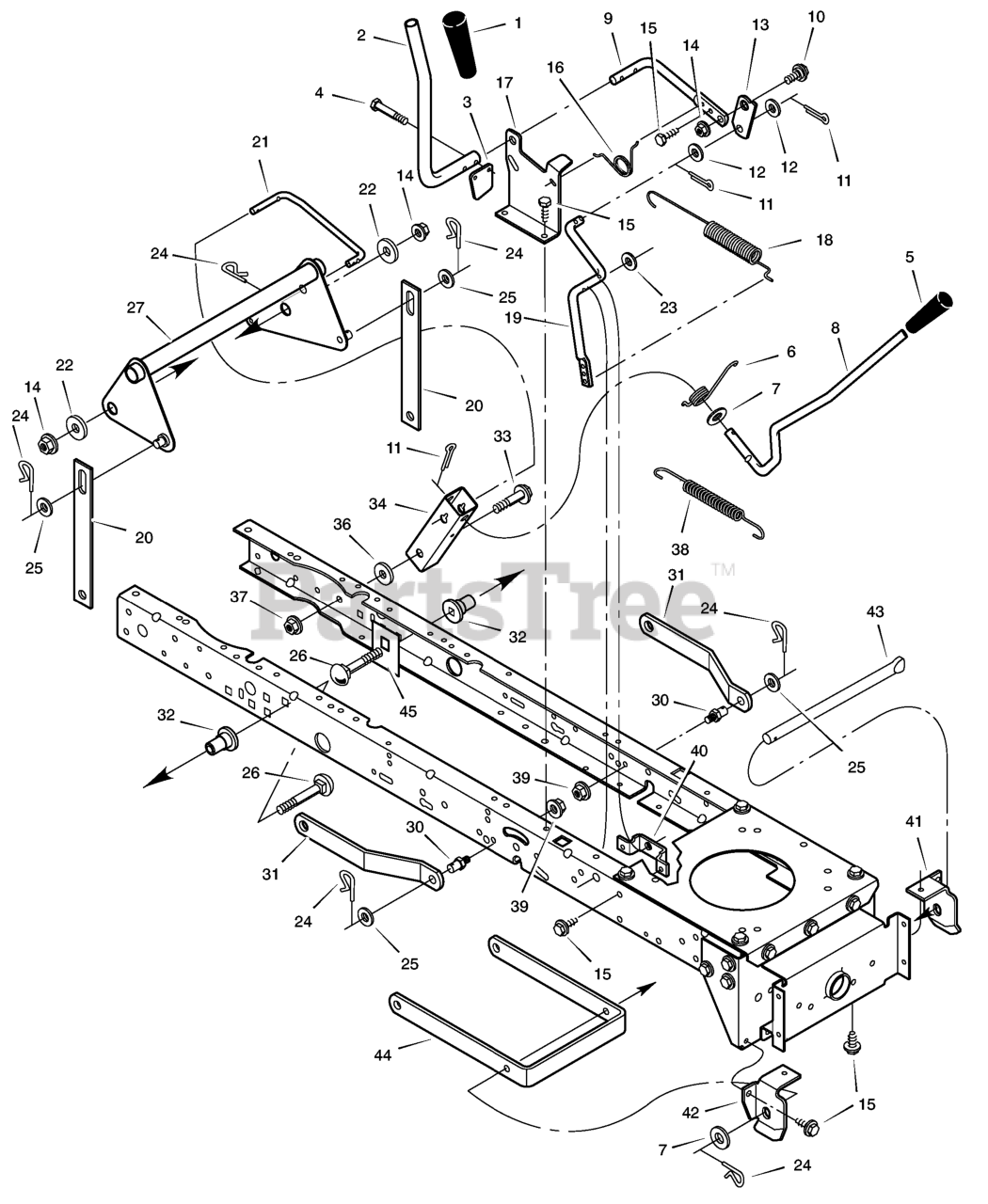

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 92698

Grip

$

$

Not available

2

Murray 94346 Z

Handle, PTO

$

$

Currently unavailable

3

Murray 94022 Z

Pad, Switch

$

$

Currently unavailable

4

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

5

Murray 92697

Grip

$

$

Not available

6

Murray 166X40MA

Spring

$6.49

$

Usually ships in 2-12 days

0

7

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

8

Murray 690533MA

Lever, Lift

$40.99

$

In Stock, only 1 left!

0

9

Murray 94017 Z

Lever, PTO

$

$

Currently unavailable

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

13

Murray 94004 Z

Link, PTO

$

$

Currently unavailable

14

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 166X39MA

Spring

$5.49

$

Usually ships in 2-12 days

0

17

Murray 94018E700

Bracket, PTO

$

$

Currently unavailable

18

Murray 165X119MA

Spring

$13.99

$

In Stock, only 4 left!

0

19

Murray 690394E700

Crank, PTO

$

$

Currently unavailable

20

Murray 690212E700

Link, Lift

$

$

Currently unavailable

21

Murray 690122E700

Link, Lift Handle

$

$

Currently unavailable

22

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

23

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

24

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 017X91 Z

Washer

$

$

Currently unavailable

26

Murray 002X85MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1001111E700MA

Lever Assembly, Lift

$

$

Currently unavailable

30

Murray 94067

Pin

$5.99

$

Usually ships in 2-12 days

0

31

Murray 94055E700

Bracket, Rear Suspension

$

$

Currently unavailable

32

Murray 690151MA

Spacer, Lifter

$6.99

$

Usually ships in 2-12 days

0

33

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

34

Murray 94015E700

Bracket, Pivot

$

$

Currently unavailable

36

Murray 17X191MA

Washer

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 165X131MA

Spring

$15.99

$

Usually ships in 2-12 days

0

39

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 94005E700

Bracket, PTO

$8.99

$

Usually ships in 2-12 days

0

41

Murray 94027E700

Hanger, Left Deck

$

$

Currently unavailable

42

Murray 94026E700

Hanger, Right Deck

$

$

Currently unavailable

43

Murray 94158 Z

Rod, Hanger

$

$

Currently unavailable

44

Murray 94058E700

Bracket, Suspension

$

$

Currently unavailable

45

Murray 1001098E700

Plate, Stiffening

$

$

Currently unavailable
