42580x89A - Yard King 42" Lawn Tractor (2000) Deck Assembly (part 2) Parts Diagram

42" Lawn Tractor

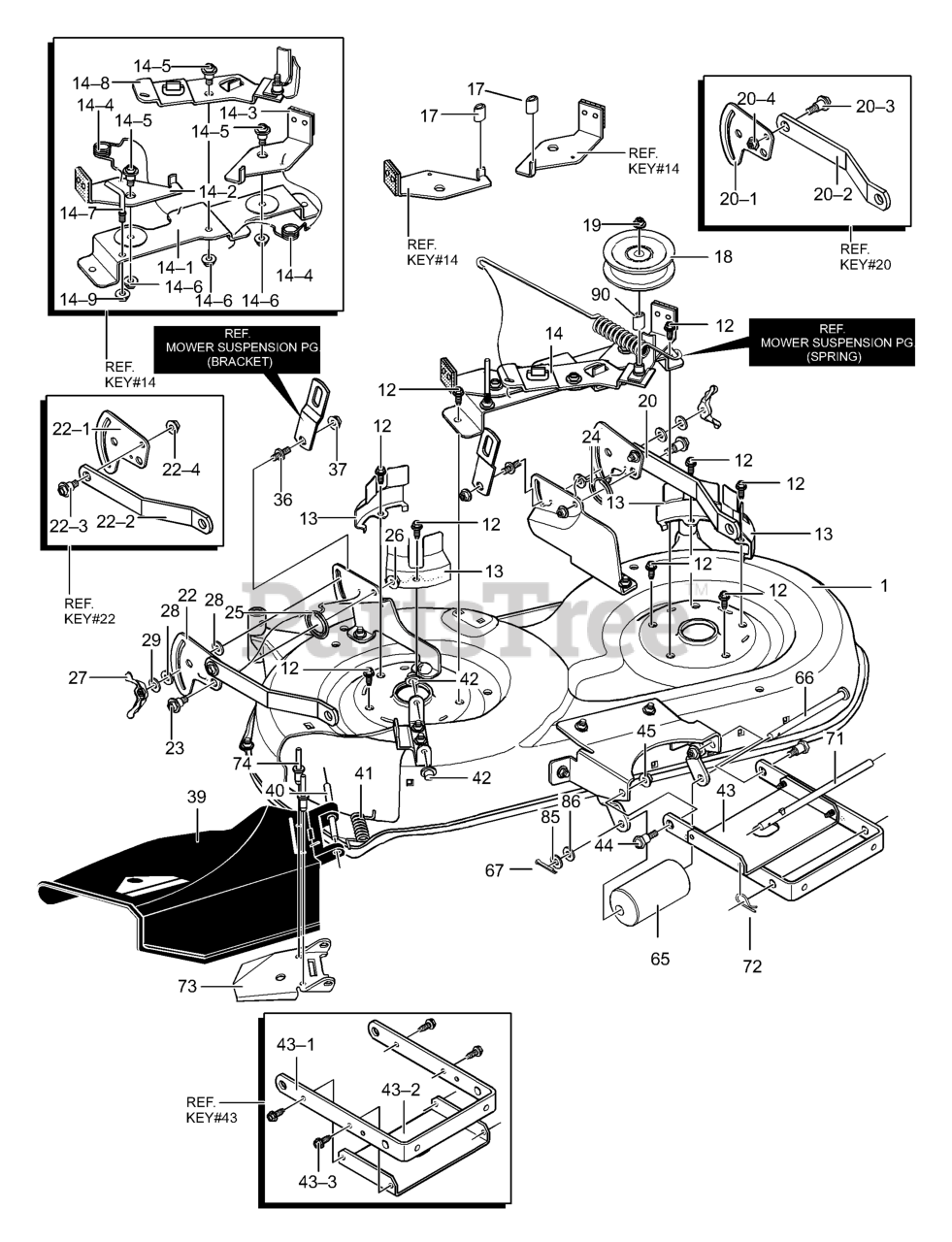

Deck Assembly (part 2) Parts Diagram

  • Title

1

Murray 710774-821

ASSEMBLY, 42" MOWER DECK

$

$

Currently unavailable

12

Murray 0025X7MA

BOLT
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

13

Murray 94051-821

COVER, BELT GUIDE

$

$

Currently unavailable

14

Murray 690138-821

ASM., BRKT SUP W/BRAKES

$

$

Currently unavailable

14-1

Murray 94193

BRACKET, BRAKE MTG.

$

$

Currently unavailable

14-2

Murray 94047

ASSY., BRAKE RH
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

14-3

Murray 94049

ASSY., BRAKE LH

$

$

Currently unavailable

14-4

Murray 710227

TORSION SPRING

$33.99

$

Usually ships in 2-12 days

0

14-5

Murray 710098

BOLT, 3/8-16
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

14-6

Murray 015X84MA

NUT, .38-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14-7

Murray 094781MA

SCREW GUIDE

$60.99

$

Usually ships in 2-12 days

0

14-8

Murray 690408

ASSY., IDLER ARM

$6.49

$

Usually ships in 2-12 days

0

14-9

Murray 015X88MA

NUT, .32-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Murray 690073

TUBE, BRAKE TAB PAD

$

$

Currently unavailable

18

Murray 690451

PULLEY, IDLER

$2.99

$

Usually ships in 2-12 days

0

19

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

20

Murray 341594-821

PLATE ASM., LH REAR SUSP

$

$

Currently unavailable

20-1

Murray 94128

PLATE-SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

20-2

Murray 94055

SUSPENSION BRACKET REAR

$

$

Currently unavailable

20-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

20-4

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Murray 341593-821

PLATE ASM., RH REAR SUSP

$8.49

$

Usually ships in 2-12 days

0

22-1

Murray 94128

PLATE-SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

22-2

Murray 94055

SUSPENSION BRACKET REAR

$

$

Currently unavailable

22-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

22-4

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 711611

BOLT, SHOULDER

$1.49

$

Usually ships in 2-12 days

0

24

Murray 710113

SPRING,TORSION

$10.99

$

In Stock, Qty 5

0

25

Murray 710112

SPRING,TORSION

$11.99

$

In Stock, only 2 left!

0

26

Murray 711622

NUT

$

$

Currently unavailable

27

Murray 711600

WINGNUT, 5/16-18

$

$

Currently unavailable

28

Murray 094137MA

PAD, FRICTION

$6.99

$

In Stock, Qty 10

0

29

Murray 711628MA

WASHER
(Superseded to 017X45MA)

$

$

Not available

36

Murray 711595

PIN, HANGER

$

$

Not available

37

Murray 711622

NUT

$

$

Currently unavailable

39

Murray 094687MA

DEFLECTOR CHUTE

$78.99

$

Usually ships in 2-12 days

0

40

Murray 95303MA

ROD, CHUTE DEFLECT
(Superseded to 094957ZMA)

$10.99

$

Usually ships in 2-12 days

0

41

Murray 710194

SPRING - TORSSION

$

$

Currently unavailable

42

Murray 711627MA

NUT, PUSH CAP

$

$

Not available

43

Murray 690058-821

ASM. BRKT. & STIFFENER

$18.99

$

Usually ships in 2-12 days

0

43-1

Murray 94058

BRACKET, SUSPENSION

$3.99

$

Usually ships in 2-12 days

0

43-2

Murray 95057

STIFFENER

$

$

Currently unavailable

43-3

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

44

Murray 711611

BOLT, SHOULDER

$1.49

$

Usually ships in 2-12 days

0

45

Murray 711622

NUT

$

$

Currently unavailable

65

Murray 310071MA

ROLLER

$91.99

$

Usually ships in 2-12 days

0

66

Murray 95275MA

ROD,SUPPORT

$10.99

$

Usually ships in 2-12 days

0

67

Murray 711667

PIN, COTTER

$1.49

$

Usually ships in 2-12 days

0

71

Murray 95295

ROD, HANGER

$

$

Currently unavailable

72

Murray 711676

PIN, HAIR

$

$

Currently unavailable

73

Murray 94686-821

DEFLECTOR SUPPORT

$

$

Currently unavailable

74

Murray 711624MA

RIVET-SEMI

$3.99

$

Usually ships in 2-12 days

0

85

Murray 711617

WASHER, FLAT

$5.49

$

Usually ships in 2-12 days

0

86

Murray 711739

WASHER, WAVE

$18.99

$

Usually ships in 2-12 days

0

90

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 3 left!

0
