42581x58A - Murray 42" Lawn Tractor (2001) Rear Chassis Assembly Parts Diagram

42" Lawn Tractor

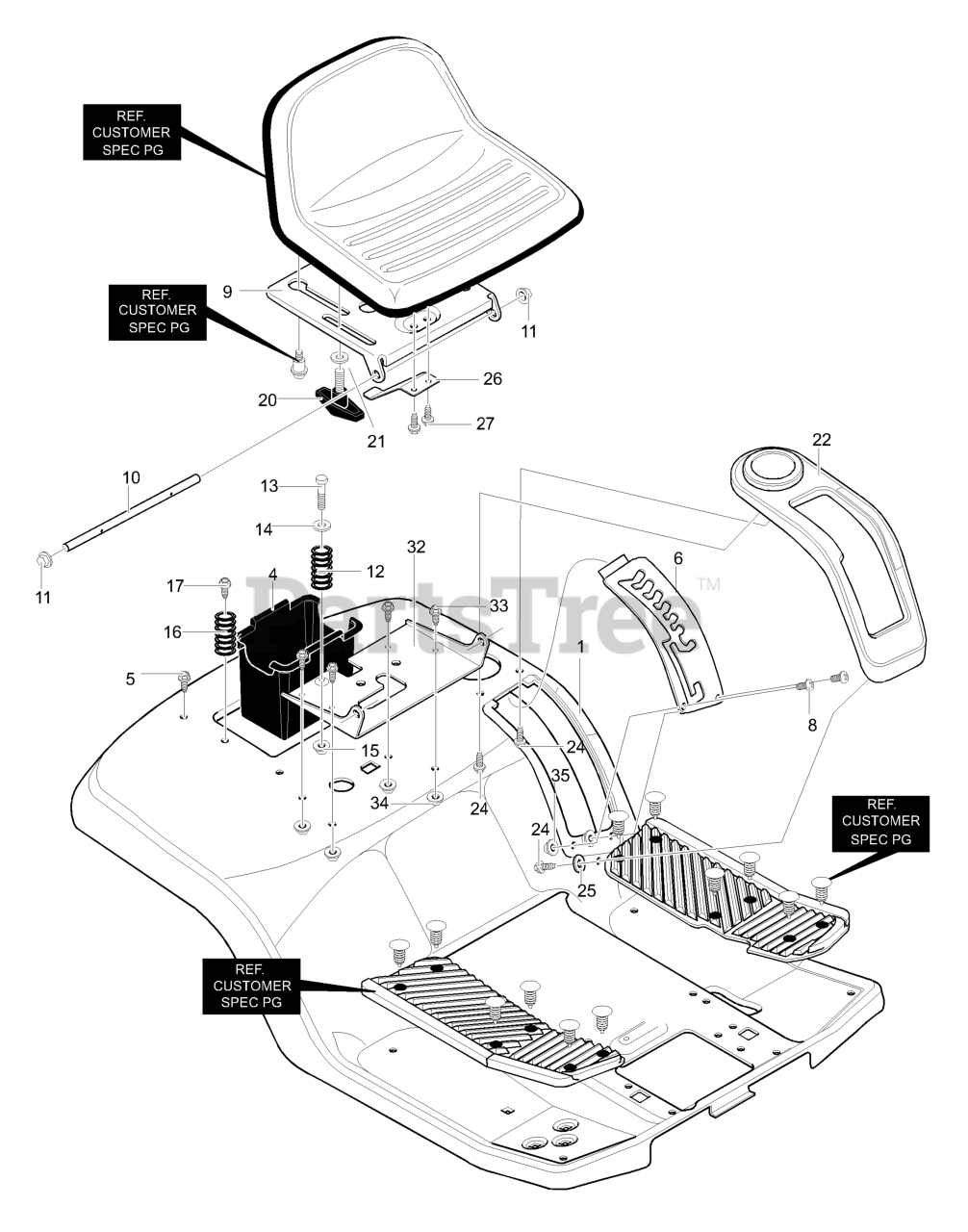

Rear Chassis Assembly Parts Diagram

  • Title

1

Murray 94629-860

Seat Deck

$

$

Currently unavailable

4

Murray 690424MA

Battery Container

$45.99

$

In Stock, only 1 left!

0

5

Murray 711642MA

Screw, 1/4-20X.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

6

Murray 94886-821

Plate, Lift Detent

$

$

Currently unavailable

8

Murray 711629

Screw, 10-24x.500

$

$

Not available

9

Murray 94154-860

Seat Support

$

$

Currently unavailable

10

Murray 95294

Hinge Seat Pivot

$

$

Not available

11

Murray 711627MA

Push Cap Nut

$

$

Not available

12

Murray 710136-821

Comp. Spring

$

$

Currently unavailable

13

Murray 711610

Shoulder Bolt, 1/4-20

$

$

Not available

14

Murray 94293

Washer Cup
(Superseded to 94293GS)

$67.99

$

Usually ships in 2-12 days

0

15

Murray 302635

Nut, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

16

Murray 710109-821

Comp. Spring

$

$

Currently unavailable

17

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

20

Murray 711747MA

Wing Bolt 5/16-18X.50

$3.99

$

Usually ships in 2-12 days

0

21

Murray 711644MA

Flat washer

$3.49

$

Usually ships in 2-12 days

0

22

Murray 94491

Detent Cover w/cup

$7.99

$

Usually ships in 2-12 days

0

24

Murray 711671MA

Screw, 1/4-15

$3.99

$

Usually ships in 2-12 days

0

25

Murray 71067

Flat washer
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

26

Murray 94057

Spring - Leaf
(Superseded to 94124)

$14.99

$

In Stock, only 2 left!

0

27

Murray 711592

Screw, 1/4-20X.50

$335.99

$

Usually ships in 2-12 days

0

32

Murray 94153-860

Pivot Seat Bracket

$

$

Currently unavailable

33

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

34

Murray 711634MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0

35

Murray 711842

Nut, #10-24 Locknut

$8.49

$

Usually ships in 2-12 days

0
