42581x95A - Murray 42" Lawn Tractor (1997) Engine Mount Parts Diagram

42" Lawn Tractor

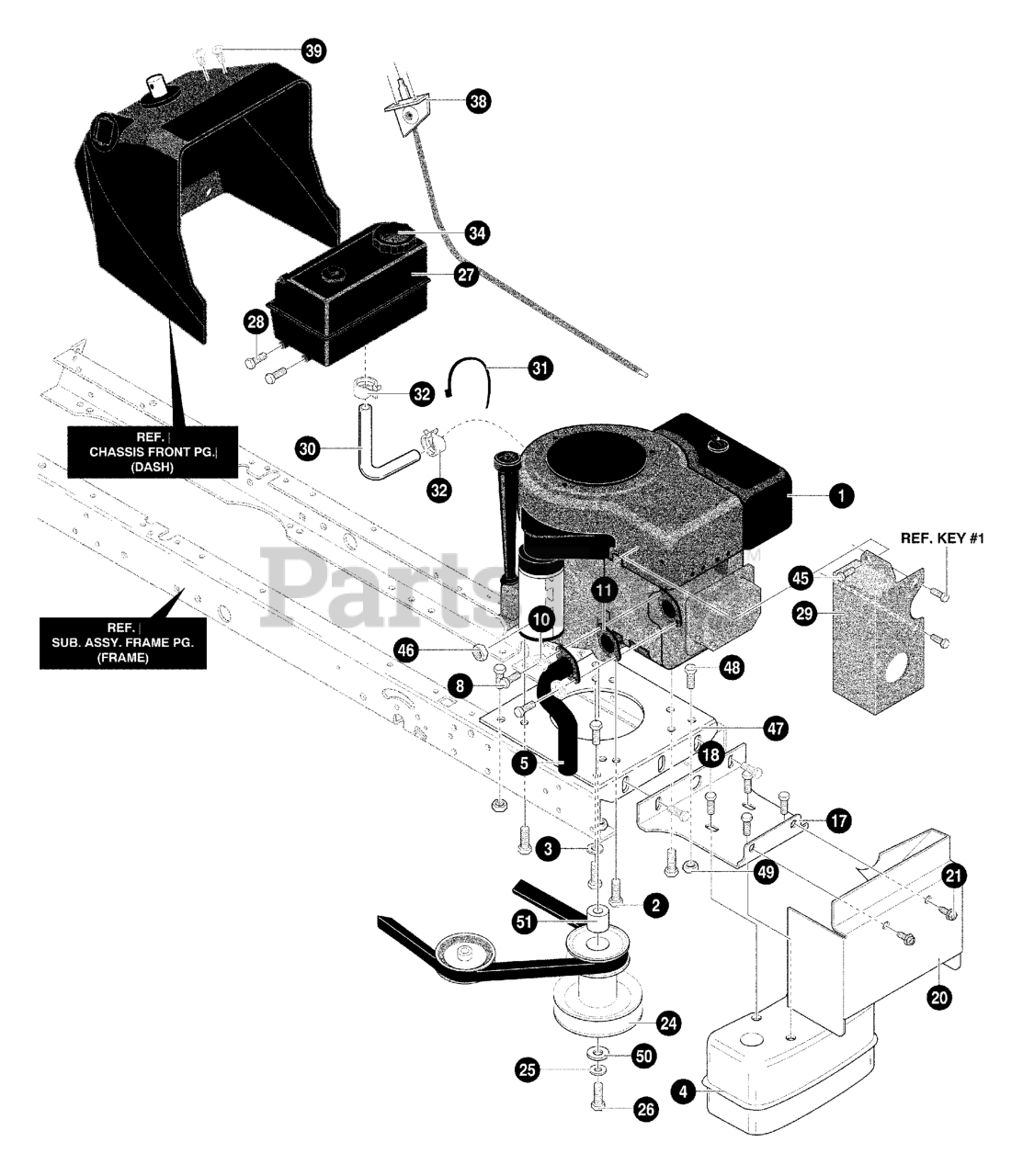

Engine Mount Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 0025X7MA

SCREW, 3/8- 16X1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

3

UNKNOWN

$

$

Not available

4

Murray 094654MA

MUFFLER

$

$

Not available

5

Murray 094657

EXHAUST TUBE

$

$

Currently unavailable

8

Murray 001X91MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

10

Murray 018X15MA

WASHER

$3.99

$

In Stock, only 1 left!

0

11

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

17

Murray 094306

BRACKET, MUFFLER MOUNT

$

$

Currently unavailable

18

Murray 26X229MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, only 1 left!

0

20

Murray 095439

SHIELD, HEAT

$

$

Currently unavailable

21

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

24

Murray 094407

PULLEY, STACK

$

$

Currently unavailable

25

Murray 019X35MA

WASHER

$4.99

$

In Stock, only 1 left!

0

26

Murray 01X140MA

SCREW, 7/16-20

$5.49

$

Usually ships in 2-12 days

0

27

Murray 309853MA

TANK, FUEL

$32.99

$

Usually ships in 2-12 days

0

28

Murray 26X253MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

29

Murray 333772

HEAT SHIELD

$

$

Currently unavailable

30

Murray 7601033MA

Fuel Line (Must cut to length)

$22.99

$

Usually ships in 2-12 days

0

31

Murray 032618MA

TIE, CABLE

$3.99

$

Usually ships in 2-12 days

0

32

Murray 091174

CLAMP, HOSE

$

$

Currently unavailable

34

Murray 12501MA

CAP, FUEL

$27.99

$

Usually ships in 2-12 days

0

38

Murray 095160

THROTTLE CONTROL

$

$

Currently unavailable

39

Murray 26X250MA

SCREW, 10- 24X.63
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

45

Murray 057366MA

SCREW, 10- 16X .50

$3.49

$

Usually ships in 2-12 days

0

46

Murray 15X116MA

NUT, 1/4- 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

47

Murray 094006E700

PLATE, ENGINE

$

$

Currently unavailable

48

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

49

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 17X170MA

WASHER, FLAT

$

$

Not available

51

Murray 093077MA

SPACER

$15.99

$

In Stock, only 1 left!

0
