42581x95A - Murray 42" Lawn Tractor (1997) Seat Deck & Frame Parts Diagram

42" Lawn Tractor

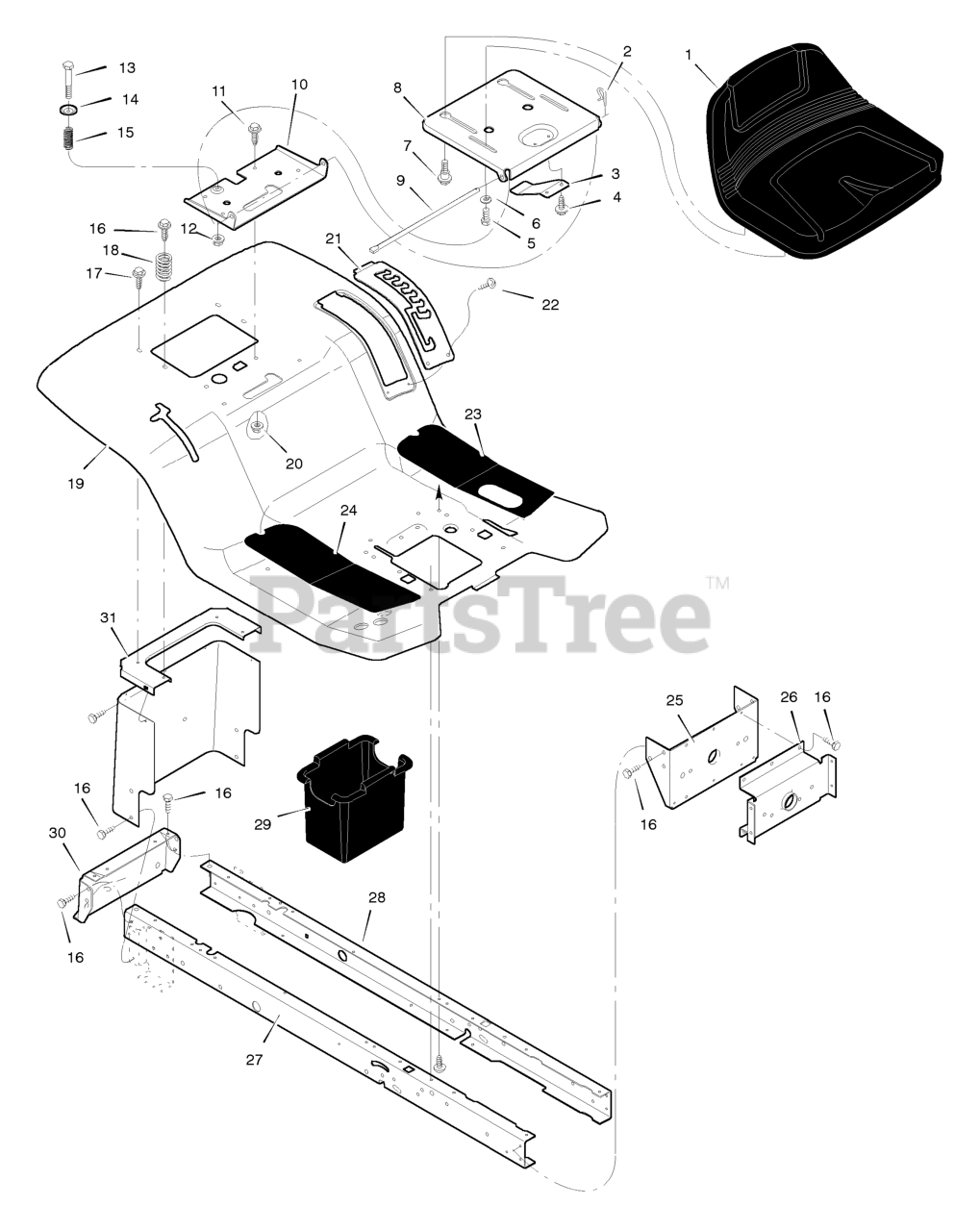

Seat Deck & Frame Parts Diagram

  • Title

1

Murray 094163

Seat

$

$

Currently unavailable

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 10

0

3

Murray 094057MA

Spring

$5.99

$

Usually ships in 2-12 days

0

4

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

5

Murray 094160

Bolt, Wing

$

$

Not available

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 94154E245

Support, Seat

$

$

Currently unavailable

9

Murray 94156

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 94153E245

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

12

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249MA

Screw

$

$

Not available

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30MA

Spring

$15.99

$

Usually ships in 2-12 days

0

19

Murray 94150E245

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 94030E245

Plate, Index

$

$

Currently unavailable

22

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

23

Murray 094453

Mat, Left

$

$

Not available

24

Murray 094454

Mat, Right

$

$

Currently unavailable

25

Murray 94013E245

Bracket, Rear Hanger

$

$

Currently unavailable

26

Murray 94007E245

Axle, Hanger

$

$

Currently unavailable

27

Murray 94000E245

Frame, Right

$

$

Currently unavailable

28

Murray 94001E245

Frame, Left

$

$

Currently unavailable

29

Murray 094069

Container, Battery

$45.99

$

In Stock, only 1 left!

0

30

Murray 94002E245

Plate, Hitch

$

$

Currently unavailable

31

Murray 94187E245

Panel, Rear

$

$

Currently unavailable
