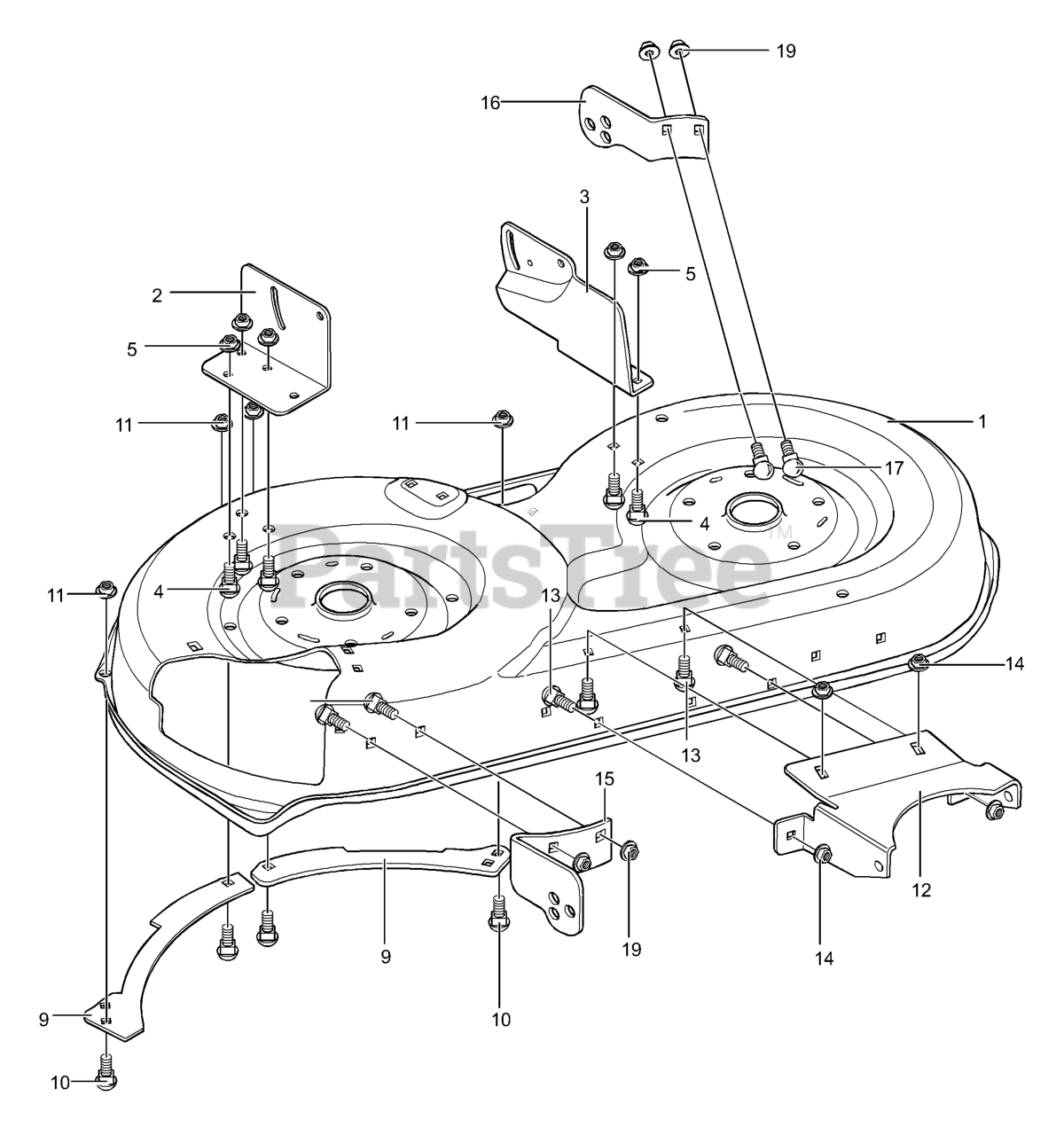

42587x50B - Murray 42" Lawn Tractor (2000) Deck Assembly (part 1) Parts Diagram

42" Lawn Tractor

Deck Assembly (part 1) Parts Diagram

  • Title

1

Murray 94188

42" Blade Housing
(Superseded to 094188E701MA)

$

$

Not available

2

Murray 94191

Bracket, Deck RH

$

$

Currently unavailable

3

Murray 94192

Bracket, Deck LH

$4.99

$

Usually ships in 2-12 days

0

4

Murray 002X53MA

Bolt, .31-18x0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

5

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 92426

Plate, Rear Toeguard
(Superseded to 092426E701MA)

$10.99

$

Usually ships in 2-12 days

0

10

Murray 002X53MA

Bolt, .31-18x0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

11

Murray 015X88MA

Nut, .32-18 Flng Ctrlk
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 94190

Bracket, Front Deck

$3.99

$

In Stock, only 1 left!

0

13

Murray 002X53MA

Bolt, .31-18x0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

14

Murray 015X79MA

Nut, .31-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 92422

Bracket, 42" Deck RH

$

$

Currently unavailable

16

Murray 092423

Bracket, 42" Deck LH

$

$

Currently unavailable

17

Murray 002X53MA

Bolt, .31-18x0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

19

Murray 015X88MA

Nut, .32-18 Flng Ctrlk
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
