42589x8 - Scotts 42" Lawn Tractor (1999) Electrical Assembly Parts Diagram

42" Lawn Tractor

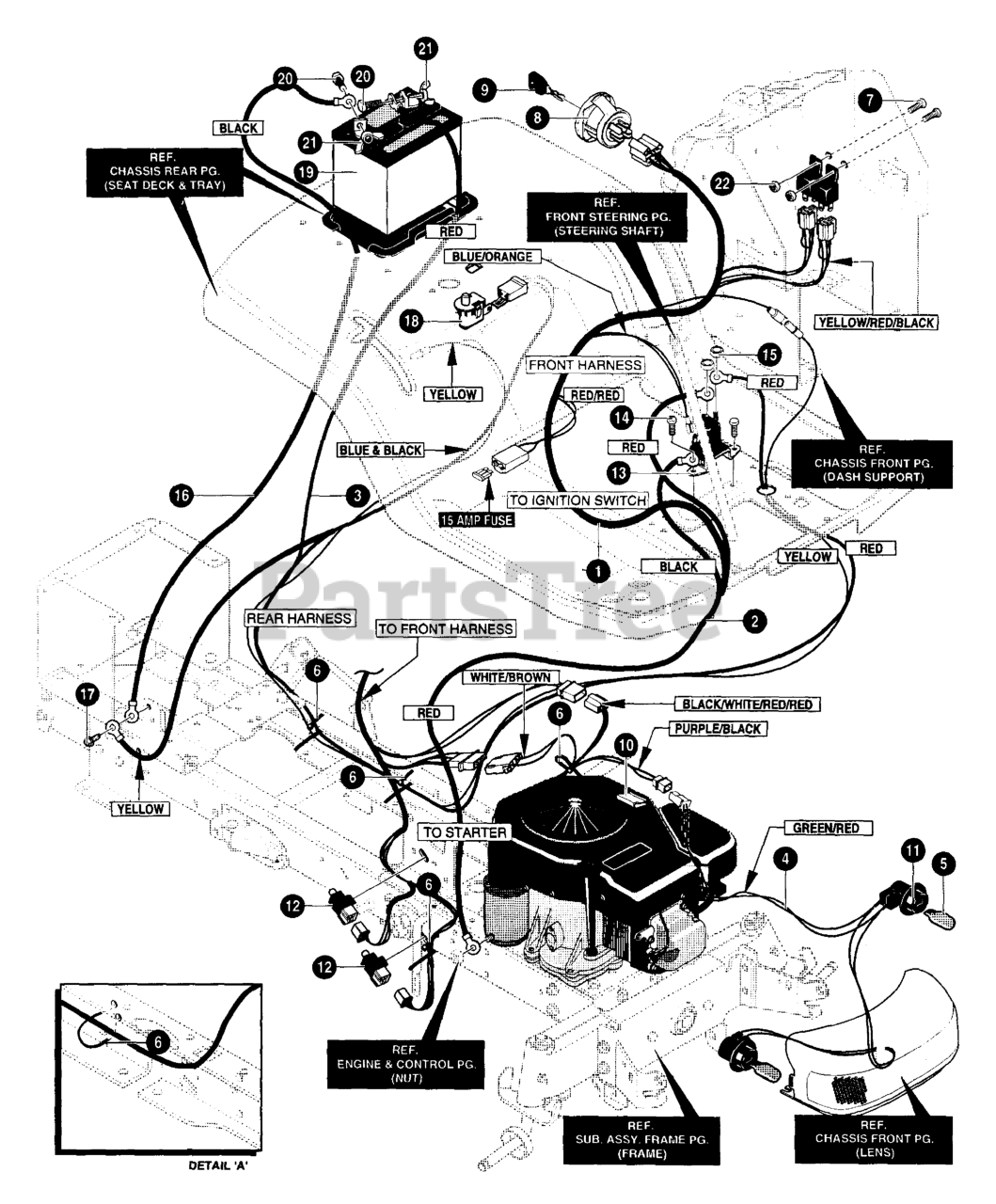

Electrical Assembly Parts Diagram

  • Title

1

Murray 94105

HARNESS, WIRE 16HP KOHLER

$5.99

$

Usually ships in 2-12 days

0

2

Murray 711579

WIRE, LEAD SOLENOID TO STARTER

$

$

Currently unavailable

3

Murray 340530

WIRE HARNESS, REAR

$

$

Currently unavailable

4

Murray 340513

WIRE HARNESS, HEADLIGHT

$

$

Currently unavailable

5

Murray 780216

BULB, HEADLIGHT 1156

$

$

Currently unavailable

6

Murray 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Not available

7

Murray 12342MA

SCREW, 10-24X.50 WAHHMA

$3.99

$

Usually ships in 2-12 days

0

8

Murray 094762

SWITCH, IGNITION DELTA 7 TERM

$24.99

$

Usually ships in 2-12 days

0

9

Murray 327350MA

KEY,IGNITION GENERIC DELTA
(Superseded to 1714054SM)

$7.49

$

Usually ships in 2-12 days

0

10

Murray 055939MA

WIRE CLIP

$4.99

$

Usually ships in 2-12 days

0

11

Murray 092372

SOCKET, LAMP

$7.99

$

In Stock, Qty 11

0

12

Murray 094136MA

SWITCH LIMIT DELTA

$12.99

$

In Stock, Qty 5

0

13

Murray 094613

SOLENOID

$27.99

$

In Stock, Qty 8

0

14

Murray 711619

SCREW,HHWATAP 1/4X.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

NUT, 1/4-20 HEXNYL 15X116

$

$

Currently unavailable

16

Murray 710228

WIRE, GROUND (24X32)

$47.99

$

In Stock, only 3 left!

0

17

Murray 711619

SCREW, HHWATAP 1/4 X.50

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

19

Murray 302257

BATTERY 12V 7 PLATE

$

$

Currently unavailable

20

Murray 711680

BOLT, 1/4-20X.63CAR
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

NUT, WING 1/4-20 NC (14X79)

$

$

Not available

22

Murray 71461

NUT #10-24 KEPS

$

$

Currently unavailable

--

Murray 302031MA

FUSE 15 AMP

$6.49

$

Usually ships in 2-12 days

0
