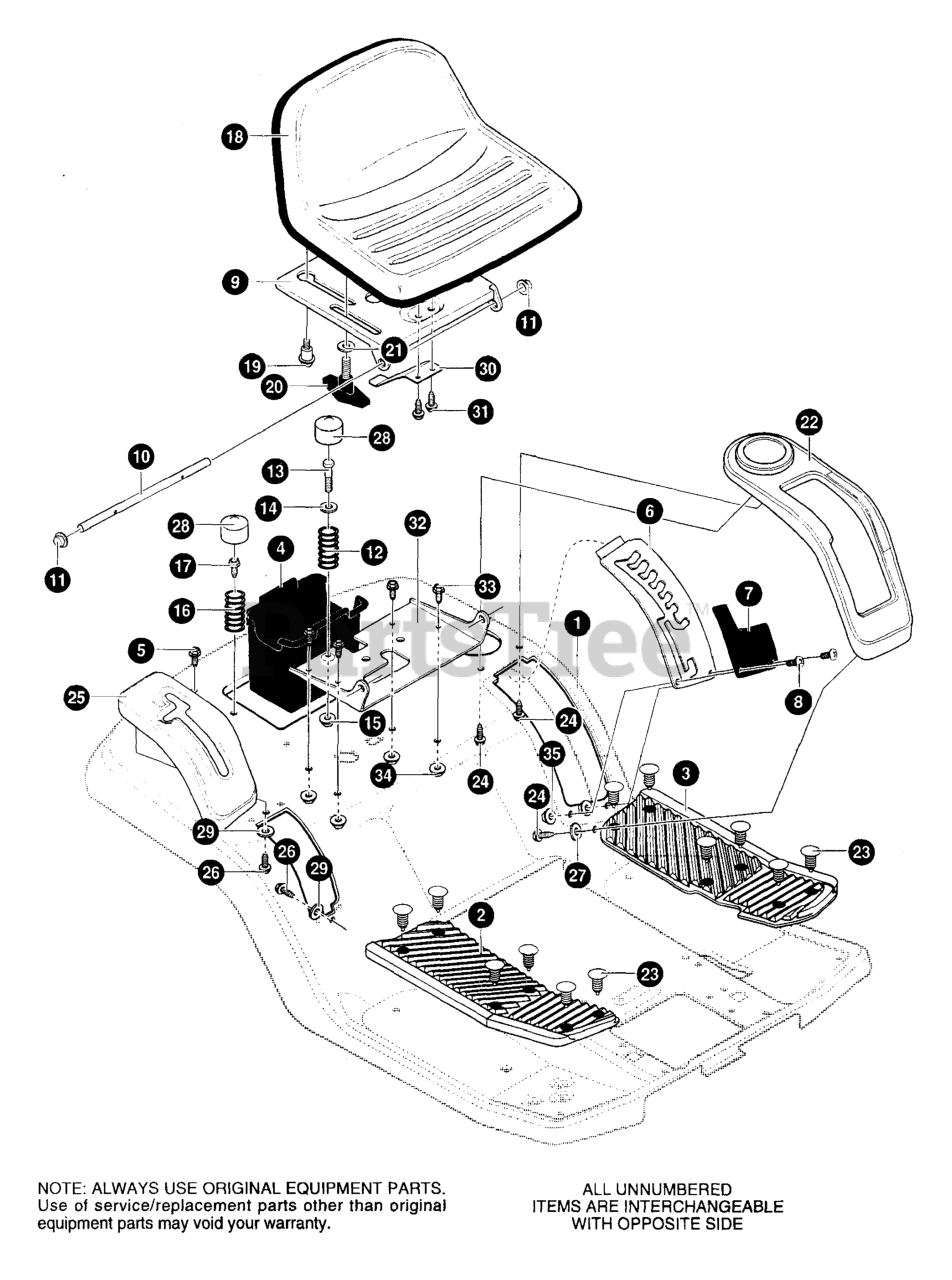

42589x8 - Scotts 42" Lawn Tractor (1999) Rear Chassis Assembly Parts Diagram

42" Lawn Tractor

Rear Chassis Assembly Parts Diagram

  • Title

1

Murray 94628-898

SEAT DECK

$

$

Currently unavailable

2

Murray 095438

FOOTREST PAD RH

$25.99

$

Usually ships in 2-12 days

0

3

Murray 095437

FOOTREST PAD LH

$25.99

$

Usually ships in 2-12 days

0

4

Murray 094069

CONTAINER, BATTERY

$45.99

$

In Stock, only 1 left!

0

5

Murray 711642MA

SCREW 1/4-20X.63 HHWATAPSER
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

6

Murray 94194-821

PLATE, LIFT DETENT LG.

$

$

Currently unavailable

7

Murray 094492

COVER, LIFT DETENT

$

$

Not available

8

Murray 711679

SCREW, .230X.135 PPANTAP10-32B

$23.99

$

Usually ships in 2-12 days

0

9

Murray 94154-898

SUPPORT, SEAT

$6.99

$

Usually ships in 2-12 days

0

10

Murray 95294

ZINC HINGE SEAT PIVOT

$

$

Not available

11

Murray 711627MA

NUT, PUSH CAP.375 (28X23)

$

$

Not available

12

Murray 710136

SPRING, COMPRESS 4.57LGX1.17

$22.99

$

Usually ships in 2-12 days

0

13

Murray 711610

BOLT, SHOULDER 1/4-20 NC-2A (9X55)

$

$

Not available

14

Murray 95293

WASHER CUP ZINC

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711643

NUT, 1/4-20 WDFLLK 15X89

$1.49

$

Usually ships in 2-12 days

0

16

Murray 710109

SPRING, COMPRESS 1.43LG 164X30

$5.49

$

Usually ships in 2-12 days

0

17

Murray 711606MA

SCREW 5/16-18X.75 HHWATAPSGIB

$7.99

$

In Stock, only 2 left!

0

18

Murray 095444

SEAT, MV1500

$

$

Currently unavailable

19

Murray 711654

BOLT, SHOULDER 5/16-18

$1.99

$

Usually ships in 2-12 days

0

20

Murray 711747MA

BOLT, WING 5/16-18X.50 LG THRD

$3.99

$

Usually ships in 2-12 days

0

21

Murray 711644MA

WASHER, FLAT .344 x .62 x .06

$3.49

$

Usually ships in 2-12 days

0

22

Murray 094491

COVER, DETENT PLATE

$

$

Currently unavailable

23

Murray 311087MA

FASTENER, RATCHET

$3.49

$

Usually ships in 2-12 days

0

24

Murray 711671MA

SCREW, 1/4-15X.44/.53 HILOHHWA

$3.99

$

Usually ships in 2-12 days

0

25

Murray 094495

COVER, HAND/FOOT HYDRO

$

$

Currently unavailable

26

Murray 711671MA

SCREW, 1/4-15X.44/.53 HILOHHWA

$3.99

$

Usually ships in 2-12 days

0

27

Murray 071067MA

FLATWASHER.286X.63X.065

$82.99

$

In Stock, only 1 left!

0

28

Murray 020107MA

CAP, HUB/SEAT SPRING

$4.49

$

Usually ships in 2-12 days

0

29

Murray 071067MA

WASHER, FLAT.286X.63X.065

$82.99

$

In Stock, only 1 left!

0

30

Murray 094057MA

SPRING, LEAF

$5.99

$

Usually ships in 2-12 days

0

31

Murray 711592

SCREW, 1/4-20X.50 WAHHTAP

$335.99

$

Usually ships in 2-12 days

0

32

Murray 94153-898

BRACKET, PIVOT SEAT

$5.99

$

Usually ships in 2-12 days

0

33

Murray 711606MA

SCREW 5/16-18X.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

34

Murray 711634MA

NUT 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

35

Murray 314159MA

NUT #10-32 CTRLK

$3.49

$

Usually ships in 2-12 days

0
