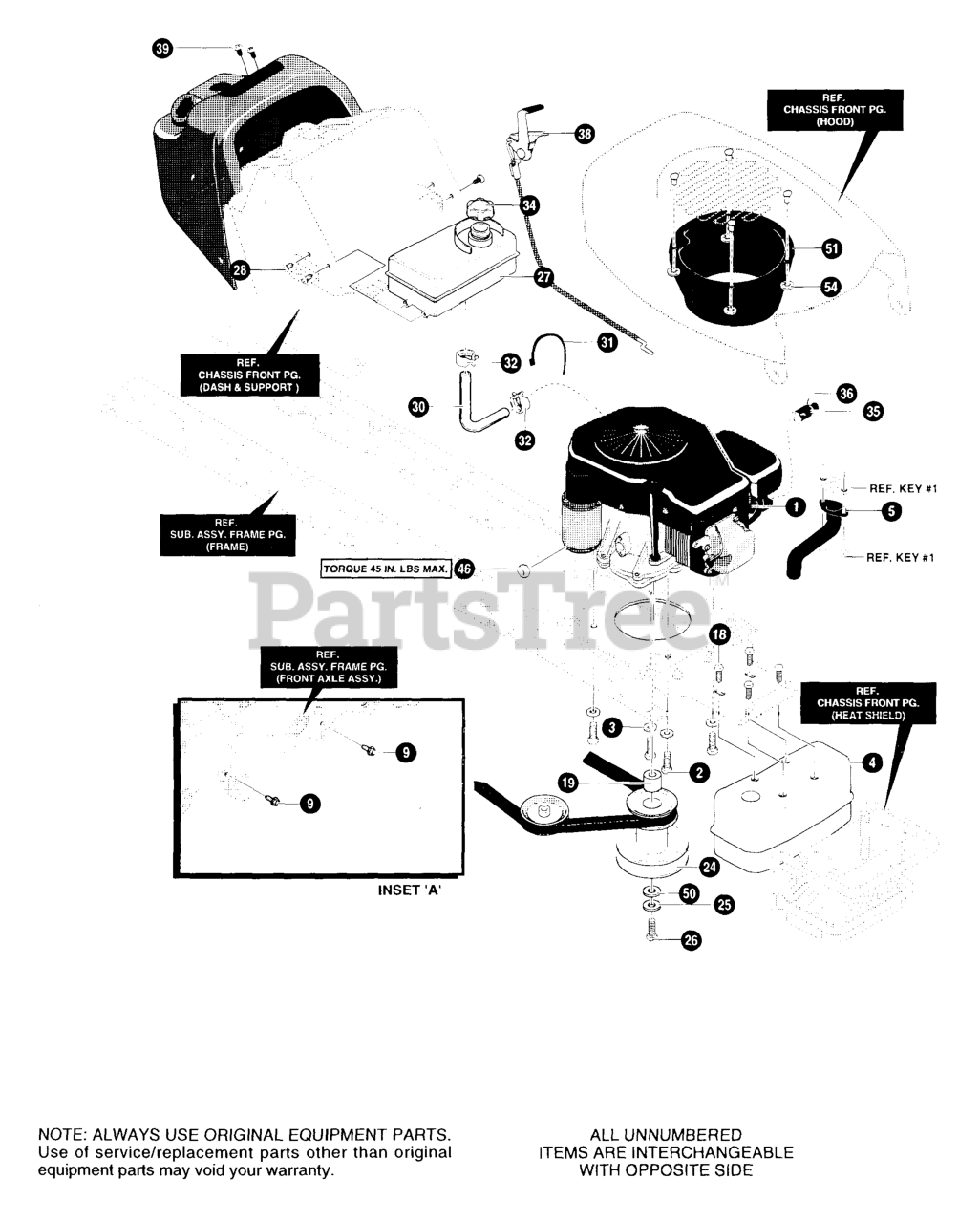

42589x8B - Scotts 42" Lawn Tractor (1999) Engine & Control Assembly Parts Diagram

42" Lawn Tractor

Engine & Control Assembly Parts Diagram

  • Title

1

ENGINE 16HP INTEK

Note: (See Engine Manual)

$

$

Not available

2

Murray 309294

SCREW, M8-1.25X25MM

$1.49

$

Usually ships in 2-12 days

0

3

Murray 71061

WASHER, EXLK.384X.69X.04

$

$

Not available

4

Murray 094654MA

MUFFLER, SINGLE-CYLINDER

$

$

Not available

5

Murray 690462

EXHAUST TUBE

$5.49

$

Usually ships in 2-12 days

0

9

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

18

Murray 711642MA

SCREW, 1/4-20X.63 HHWATAP
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

19

Murray 093077MA

SPACER, SLEEVE

$15.99

$

In Stock, only 1 left!

0

24

Murray 95259

PULLEY, STACK ASSY

$

$

Currently unavailable

25

Murray 120383

WASHER, REGSPTLK.459X.78X.12

$

$

Not available

26

Murray 710248

SCREW, 7/16-20NF-1.50

$3.99

$

Usually ships in 2-12 days

0

27

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 2 left!

0

28

Murray 711681

SCREW, 15TPIX PANHTAP

$1.99

$

Usually ships in 2-12 days

0

30

Murray 48049

TUBING,.25X.50
(Superseded to 5048049)

$8.49

$

In Stock, only 1 left!

0

31

Murray 57444

CABLE TIE

$

$

Not available

32

Murray 336890

CLAMP, HOSE SCREW TYPE

$

$

Currently unavailable

34

Murray 092317MA

CAP, FUEL

$10.99

$

In Stock, Qty 12

0

35

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN VALVE ASSY

$

$

Not available

38

Murray 95262

THROTTLE CONTROL

$

$

Currently unavailable

39

Murray 711686

SCREW, #8-16X.50 TRCRTAP

$1.99

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT 1/4-20 REGHXJAM

$1.99

$

Usually ships in 2-12 days

0

50

Murray 710247

FLATWASHER .480X1.00X.25

$8.49

$

Usually ships in 2-12 days

0

51

Murray 95324

PLENUM

$13.99

$

Usually ships in 2-12 days

0

54

Murray 711677

PUSHNUT

$8.49

$

Usually ships in 2-12 days

0
