42589x8B - Scotts 42" Lawn Tractor (1999) Motion Drive Assembly Parts Diagram

42" Lawn Tractor

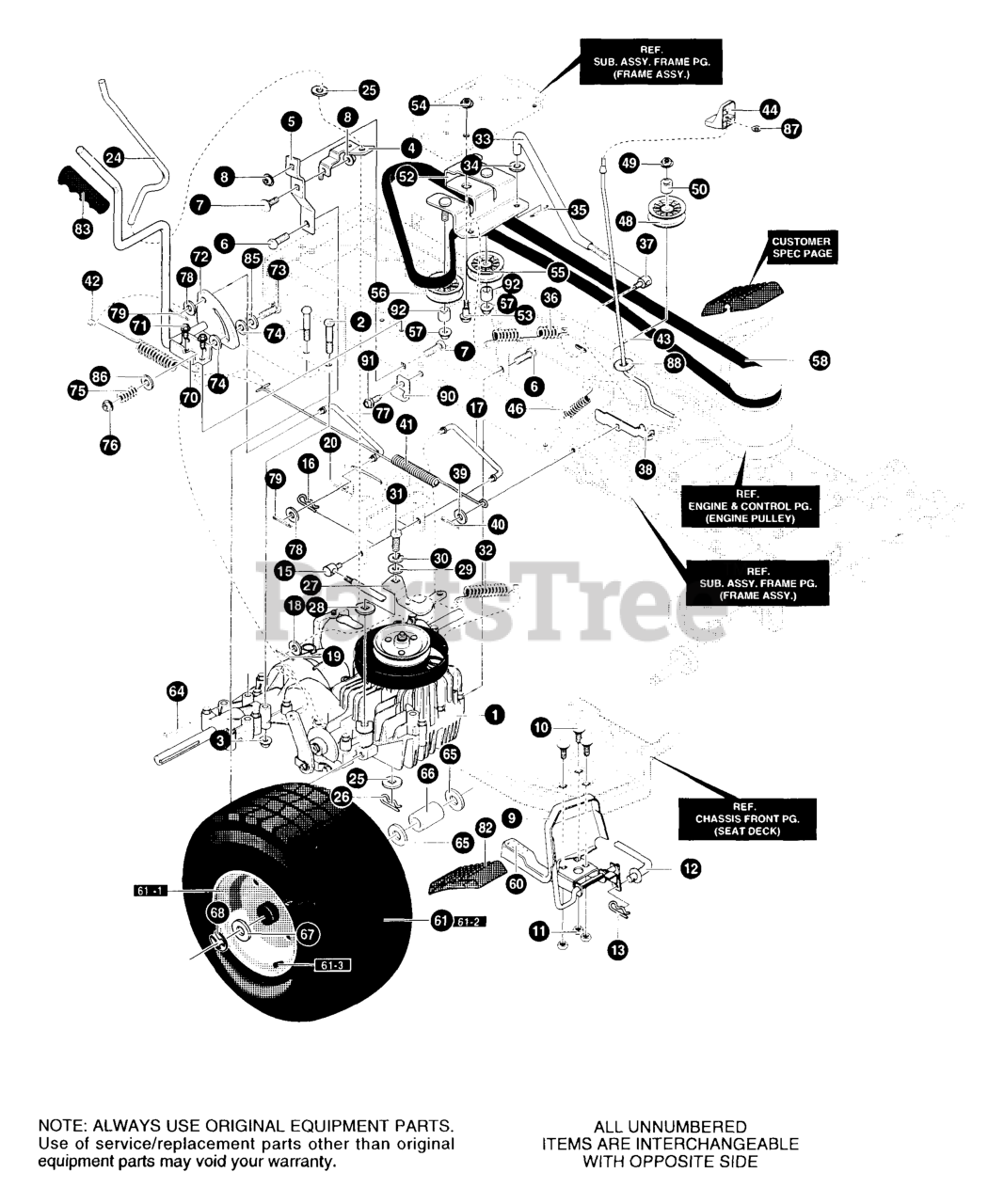

Motion Drive Assembly Parts Diagram

  • Title

1

Transaxle, Peerless **

Note: (MST205-024)

$

$

Not available

2

Murray 711669

SCREW, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94429-821

DISCONNECT BRACKET

$

$

Currently unavailable

5

Murray 94432-821

TORQUE STRAP-RIGHT PEERLESS **

$

$

Currently unavailable

6

Murray 710268

SCREW, 5/16-18 x 0.75

$12.99

$

In Stock, Qty 5

0

7

Murray 711661

BOLT, 5/16-18X.63 CARR.

$

$

Not available

8

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

9

Murray 690013-821

PEDAL ASSY HYDRO

$

$

Currently unavailable

10

Murray 711688MA

BOLT, 5/16-18X.75 CARR.

$3.49

$

Usually ships in 2-12 days

0

11

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

12

Murray 95278

ROD, PEDAL LINK

$11.99

$

Usually ships in 2-12 days

0

13

Murray 711676

PIN, HAIR

$

$

Currently unavailable

15

Murray 711594

NUT, ADJUSTING 1/2-13UNC

$2.99

$

Usually ships in 2-12 days

0

16

Murray 711682MA

PIN, HAIR.38X DIA.X1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 95279

ROD, HYDRO LINK

$10.99

$

Usually ships in 2-12 days

0

18

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 2 left!

0

19

Murray 071081

PIN, COTTER .094DIAX.75LG

$3.49

$

Usually ships in 2-12 days

0

20

Murray 711676

PIN, HAIR

$

$

Currently unavailable

24

Murray 95298

ROD, DISCONNECT

$

$

Currently unavailable

25

Murray 711644MA

WASHER, FLAT .344X.62X.06

$3.49

$

Usually ships in 2-12 days

0

26

Murray 071081

PIN, COTTER .094DIAX.75LG

$3.49

$

Usually ships in 2-12 days

0

27

Murray 95299

ARM, DISCONNECT

$

$

Not available

28

Murray 710346

WASHER, .388/.393SQX1.00X.065

$1.49

$

Usually ships in 2-12 days

0

29

Murray 710657

WASHER, FLAT.256X.75X.130

$65.99

$

Usually ships in 2-12 days

0

30

Murray 710249

WASHER (18X32)

$

$

Currently unavailable

31

Murray 710345

SCREW, 1/4-28X.750

$10.99

$

Usually ships in 2-12 days

0

32

Murray 710330

SPRING, EXTENSION 2.26LG
(Superseded to 710329)

$11.99

$

In Stock, only 1 left!

0

33

Murray 95297

ROD, CLUTCH

$8.99

$

Usually ships in 2-12 days

0

34

Murray 711644MA

WASHER, FLAT .344 x .62 x .06

$3.49

$

Usually ships in 2-12 days

0

35

Murray 071081

PIN, COTTER .094DIAX.75LG

$3.49

$

Usually ships in 2-12 days

0

36

Murray 710707

SPRING, CLUTCH HYDRO

$

$

Currently unavailable

37

Murray 711596

NUT, ADJUSTING

$

$

Currently unavailable

38

Murray 690048

LATCH, PARKING BRAKE

$13.99

$

Usually ships in 2-12 days

0

39

Murray 711623

WASHER, FLAT .406 x .81 x 16 GA

$1.99

$

Usually ships in 2-12 days

0

40

Murray 071081

PIN, COTTER .094DIAX.75

$3.49

$

Usually ships in 2-12 days

0

41

Murray 710333

SPRING, EXTENSION 23.10LG

$67.99

$

Usually ships in 2-12 days

0

42

Murray 710353

SPRING, TENSION 3.984X.530

$8.99

$

Usually ships in 2-12 days

0

43

Murray 095108

ROD, PARKING BRAKE

$

$

Currently unavailable

44

Murray 095315MA

KNOB, PARKING BRAKE

$9.49

$

Usually ships in 2-12 days

0

46

Murray 711560

SPRING, TENSION .375X1.50X.

$

$

Currently unavailable

48

Murray 690409MA

PULLEY, IDLER 2.75 DIA

$19.99

$

In Stock, only 3 left!

0

49

Murray 711920MA

NUT, 3/8-16 HWDFLLK MACK

$4.49

$

Usually ships in 2-12 days

0

50

Murray 690369MA

SPACER, 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0

52

Murray 95305

ASM.BRACKET IDLER

$

$

Not available

53

Murray 711613MA

BOLT, .50X.75 HHSH 3/8-16

$1.99

$

Usually ships in 2-12 days

0

54

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

55

Murray 690409MA

PULLEY, IDLER

$19.99

$

In Stock, only 3 left!

0

56

Murray 690410MA

PULLEY, IDLER

$19.99

$

In Stock, only 1 left!

0

57

Murray 711920MA

NUT, 3/8-16 HWDFLLK MACK

$4.49

$

Usually ships in 2-12 days

0

58

Murray 710531

BELT, MOTION DRIVE HYDRO

$

$

Not available

60

Murray 093249

PAD, TOE SANDPAPER

$3.49

$

Usually ships in 2-12 days

0

61

Murray 692300

TIRE & RIM 20X10-8
(Superseded to 407934MA)

$219.99

$

Usually ships in 2-12 days

0

61-1

Murray 338527

TIRE 20X10-8

$

$

Currently unavailable

61-2

Murray 338524

RIM, CARL

$

$

Currently unavailable

61-3

Murray 338512

VALVE STEM

$

$

Not available

64

Murray 52928MA

KEY, SQUARE .187SQX2.25 LG

$1.99

$

Usually ships in 2-12 days

0

65

Murray 711648MA

WASHER, FLAT .760 x 1.25 x .065

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95274MA

SPACER.87X1.78

$46.99

$

Usually ships in 2-12 days

0

67

Murray 711758

WASHER, FLAT .765 x 1.81 x .059

$26.99

$

In Stock, only 1 left!

0

68

Murray 710103

E-RING .574IDX.050/.750SH 11X3

$8.99

$

Usually ships in 2-12 days

0

70

Murray 94793-821

BRACKET, MOUNT HAND CONTROL

$

$

Not available

71

Murray 711606MA

SCREW 5/16-18X.75

$7.99

$

In Stock, only 2 left!

0

72

Murray 95306

ASM. LEVER HAND CRUISE

$16.99

$

Usually ships in 2-12 days

0

73

Murray 711599

BOLT, .375X1.59 HHSH 5/16-18X.5

$1.49

$

Usually ships in 2-12 days

0

74

Murray 314944

WASHER, FRICTION

$4.99

$

Usually ships in 2-12 days

0

75

Murray 335689

SPRING - COMP.875LONGX.0915 WIRE

$1.99

$

Usually ships in 2-12 days

0

76

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

77

Murray 690045

LINK, CRUISE CONTROL
(Superseded to 699505)

$255.99

$

Usually ships in 2-12 days

0

78

Murray 711644MA

WASHER, FLAT .344 x .62 x .06

$3.49

$

Usually ships in 2-12 days

0

79

Murray 071081

COTTER PIN.094DIAX.75LG

$3.49

$

Usually ships in 2-12 days

0

82

Murray 094516

PAD, SPEED CTRL PED

$

$

Currently unavailable

83

Murray 094498

GRIP 7/16"

$6.99

$

Usually ships in 2-12 days

0

85

Murray 711589

WASHER, FLAT .390 x 1.25 x .119

$335.99

$

Usually ships in 2-12 days

0

86

Murray 710083

WASHER, FLAT .391 X1.00X.083

$12.99

$

In Stock, only 3 left!

0

87

Murray 711691MA

PUSHNUT,.240DIA STUD

$3.99

$

Usually ships in 2-12 days

0

88

Murray 071067MA

WASHER, FLAT .281X.63X.065

$82.99

$

In Stock, only 1 left!

0

90

Murray 711742

RETAINER, .31IDX.62X.03 WIRE

$18.99

$

Usually ships in 2-12 days

0

91

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

92

Murray 690369MA

SPACER, 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0
