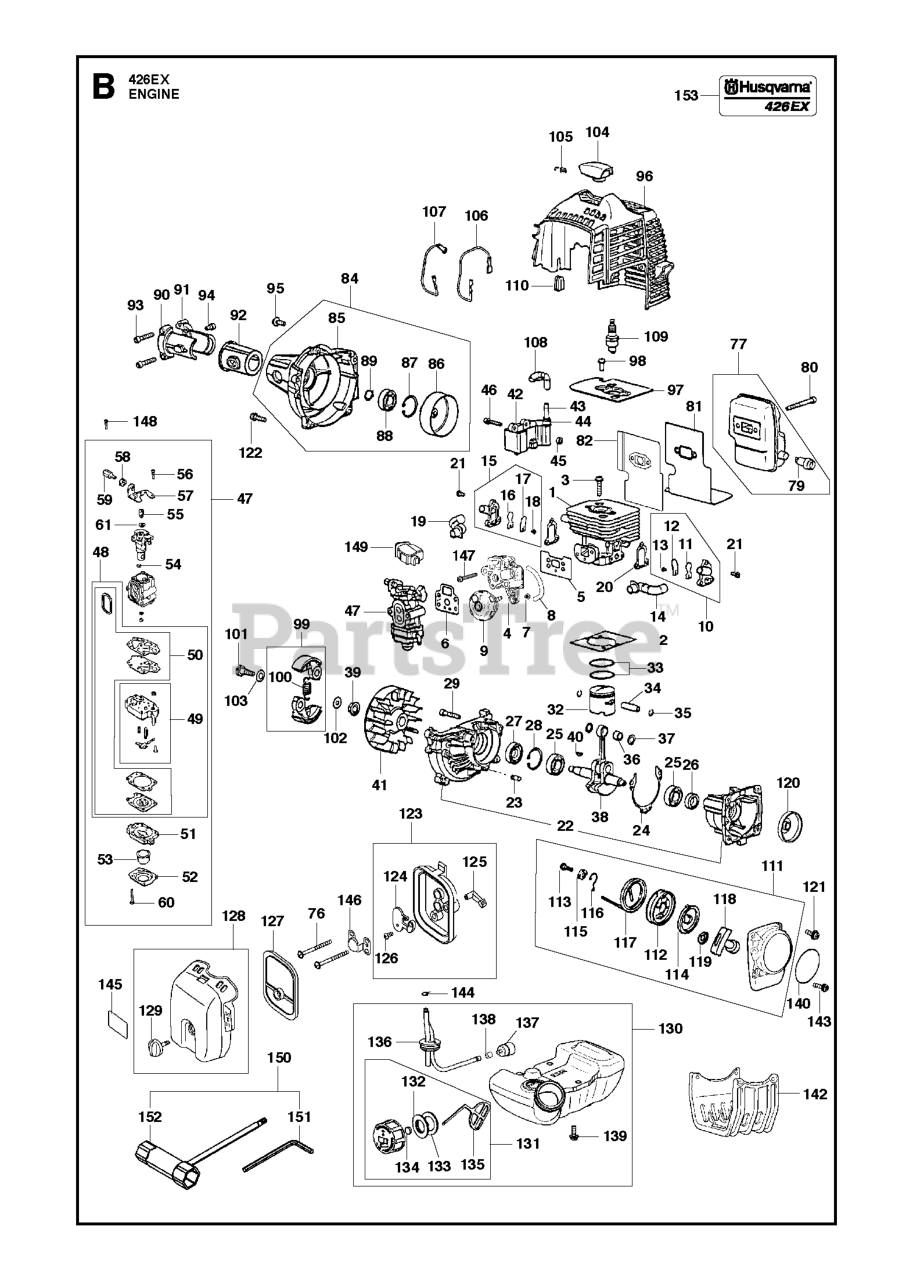

426 EX - Husqvarna Handheld Edger (2010-01) ENGINE Parts Diagram

Handheld Edger

ENGINE Parts Diagram

  • Title

51

Husqvarna 521613701

BODY CARB

$31.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506612901

SEAL

$3.49

$

In Stock, only 1 left!

0

38

Husqvarna 521613201

CRANKSHAFT COMP(RPLS481042000)

$113.99

$

Usually ships in 3-10 days

0

104

Husqvarna 521610001

CAP

$7.99

$

In Stock, only 2 left!

0

1

Husqvarna 521611601

CYLINDER

$68.99

$

In Stock, only 2 left!

0

43

Husqvarna 521749201

CORD

$11.99

$

In Stock, only 1 left!

0

44

Husqvarna 505042801

CAP
(Superseded to 516744001)

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 506689401

KEY

$3.49

$

Usually ships in 3-10 days

0

84

Husqvarna 525942001

COVER-C
(Superseded to 570794101)

$

$

Not available

132

Husqvarna 515369401

HOLDER-A

$6.99

$

In Stock, only 2 left!

0

41

Husqvarna 515384501

ROTOR

$43.99

$

Usually ships in 3-10 days

0

45

Husqvarna 504118601

SPACER

$3.49

$

In Stock, only 2 left!

0

112

Husqvarna 504114701

REEL

$13.99

$

In Stock, Qty 5

0

79

Husqvarna 506615601

ARRESTER

$6.99

$

In Stock, only 1 left!

0

16

Husqvarna 521612601

REEDVALVE

$13.99

$

Usually ships in 3-10 days

0

137

Husqvarna 506614601

FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

54

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0

143

Husqvarna 506745201

BOLT

$4.99

$

In Stock, only 4 left!

0

105

Husqvarna 505298901

SPRING

$3.49

$

In Stock, only 1 left!

0

121

Husqvarna 521746501

BOLT M5X14

$3.49

$

In Stock, only 2 left!

0

89

Husqvarna 516124101

RING

$3.49

$

In Stock, Qty 13

0

100

Husqvarna 515389301

SPRING

$4.99

$

In Stock, Qty 9

0

122

Husqvarna 506745201

BOLT

$4.99

$

In Stock, only 4 left!

0

58

Husqvarna 506612601

NUT
(Superseded to 510487401)

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 515380701

STOPPER

$9.49

$

Usually ships in 3-10 days

0

145

Husqvarna 523071401

LABEL

$3.49

$

Usually ships in 3-10 days

0

102

Husqvarna 505054401

WASHER

$3.49

$

Usually ships in 3-10 days

0

98

Husqvarna 504119601

BOLT 08
(Superseded to 529268101)

$3.49

$

Usually ships in 3-10 days

0

82

Husqvarna 521612101

PLATE, MUFFLER

$20.99

$

In Stock, only 4 left!

0

42

Husqvarna 512320001

COIL-A

$102.99

$

In Stock, only 2 left!

0

110

Husqvarna 506615901

GROMMET

$3.49

$

In Stock, only 2 left!

0

103

Husqvarna 513189501

WASHER

$3.49

$

Usually ships in 3-10 days

0

60

Husqvarna 506741101

SCREW

$3.49

$

In Stock, only 3 left!

0

2

Husqvarna 521611701

GASKET, BASE

$4.99

$

In Stock, Qty 7

0

8

Husqvarna 521523601

TUBE

$5.99

$

Usually ships in 3-10 days

0

76

Husqvarna 529268001

BOLT

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 575406801

CARBURETOR WYA-138

$85.99

$

Usually ships in 3-10 days

0

92

Husqvarna 515649601

CUSHION

$9.49

$

In Stock, only 4 left!

0

53

Husqvarna 505306701

PUMP

$9.49

$

In Stock, Qty 13

0

7

Husqvarna 521519101

SCREW

$6.99

$

Usually ships in 3-10 days

0

133

Husqvarna 506744301

PACKING

$3.49

$

In Stock, Qty 5

0

109

Husqvarna 506615101

SPARK PLUG NGK CMR7H
(Superseded to 528074001)

$5.99

$

Usually ships in 3-10 days

0

126

Husqvarna 506673801

SCREW

$3.49

$

In Stock, only 4 left!

0

142

Husqvarna 511371201

GUARD

$13.99

$

In Stock, only 2 left!

0

86

Husqvarna 515388501

DRUM

$

$

Not available

34

Husqvarna 521522601

PIN (RPLS T151341310)

$5.99

$

In Stock, Qty 5

0

81

Husqvarna 521612001

GASKET

$20.99

$

Usually ships in 3-10 days

0

111

Husqvarna 515385401

RECOIL-A

$62.99

$

In Stock, only 2 left!

0

24

Husqvarna 515381801

GASKET.CASE

$3.49

$

In Stock, only 4 left!

0

116

Husqvarna 504114801

SWING ARM

$5.99

$

In Stock, Qty 10

0

124

Husqvarna 528074301

PLATE, CHOKE

$5.99

$

Usually ships in 3-10 days

0

88

Husqvarna 525953201

BEARING

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 505308201

SCREW CABLE ADJUST

$

$

Not available

39

Husqvarna 504118001

NUT
(Superseded to 516437401)

$3.49

$

Usually ships in 3-10 days

0

125

Husqvarna 528074401

LEVER

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 515381601

CRANKCASE-C

$125.99

$

Usually ships in 3-10 days

0

50

Husqvarna 506615501

GASKET KIT

$62.99

$

Usually ships in 3-10 days

0

36

Husqvarna 506685001

BEARING

$7.99

$

In Stock, only 2 left!

0

151

Husqvarna 505312001

BAR

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 504121501

SEAL

$9.49

$

In Stock, only 2 left!

0

52

Husqvarna 506741001

1OVER

$5.99

$

Usually ships in 3-10 days

0

91

Husqvarna 515649501

BRACKET(B)-24

$

$

Not available

49

Husqvarna 502238401

CARBURETOR BODY

$51.99

$

In Stock, only 2 left!

0

35

Husqvarna 505045201

RING

$3.49

$

In Stock, only 2 left!

0

33

Husqvarna 506618101

RING

$13.99

$

In Stock, Qty 18

0

123

Husqvarna 528062601

BODY - A

$22.99

$

Usually ships in 3-10 days

0

150

Husqvarna 521532701

TOOL SET (RPLS 848-8UD-0120)

$14.99

$

Usually ships in 3-10 days

0

99

Husqvarna 515389101

SHOE-C

$31.99

$

In Stock, Qty 9

0

139

Husqvarna 515391301

BOLT

$3.49

$

In Stock, Qty 7

0

87

Husqvarna 506609901

RING

$3.49

$

In Stock, only 2 left!

0

152

Husqvarna 521533101

SOCKET
(Superseded to 521532701)

$14.99

$

Usually ships in 3-10 days

0

48

Husqvarna 506657901

REBUILD KIT

$79.99

$

In Stock, Qty 20+

0

10

Husqvarna 521612301

AIR CHECKER (S) ASSY

$22.99

$

Usually ships in 3-10 days

0

19

Husqvarna 521612801

PIPE AIR (F)

$7.99

$

In Stock, Qty 10

0

146

Husqvarna 528074801

PLATE

$4.99

$

Usually ships in 3-10 days

0

96

Husqvarna 575331001

COVER ENGINE

$

$

Not available

119

Husqvarna 515385601

PLATE.STOPPER

$3.49

$

In Stock, only 2 left!

0

61

Husqvarna 506746101

WASHER

$3.49

$

In Stock, only 1 left!

0

108

Husqvarna 521749501

TUBE (RPLS 263072210)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 515388101

BOLT

$3.49

$

In Stock, Qty 19

0

101

Husqvarna 513189601

SCREW

$3.49

$

In Stock, only 3 left!

0

118

Husqvarna 506614701

KNOB

$6.99

$

In Stock, only 2 left!

0

135

Husqvarna 506745801

STOPPER

$3.49

$

In Stock, only 1 left!

0

28

Husqvarna 506609901

RING

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 521613301

INSULATOR

$20.99

$

Usually ships in 3-10 days

0

149

Husqvarna 506744201

COVER

$5.99

$

In Stock, only 1 left!

0

9

Husqvarna 521613901

PUMP ASSY

$39.99

$

In Stock, only 2 left!

0

136

Husqvarna 515387201

PIPE-C
(Superseded to 597967207)

$13.99

$

In Stock, Qty 6

0

134

Husqvarna 506746801

FILTER

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 515380701

STOPPER

$9.49

$

Usually ships in 3-10 days

0

128

Husqvarna 575331101

COVER ASSY
(Superseded to 575331104)

$20.99

$

Usually ships in 3-10 days

0

23

Husqvarna 505296101

PIN

$3.49

$

Usually ships in 3-10 days

0

131

Husqvarna 505309601

CAP A

$13.99

$

In Stock, only 2 left!

0

130

Husqvarna 528064401

TANK-A
(Superseded to 579141802)

$148.99

$

Usually ships in 3-10 days

0

138

Husqvarna 506707001

CLIP

$3.49

$

In Stock, only 4 left!

0

106

Husqvarna 515384801

CORD

$5.99

$

Usually ships in 3-10 days

0

90

Husqvarna 515649401

BRACKET(A)-24

$14.99

$

Usually ships in 3-10 days

0

93

Husqvarna 515388101

BOLT

$3.49

$

In Stock, Qty 19

0

20

Husqvarna 521612901

GASKET, VALVE

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 505307901

SCREW

$3.49

$

Usually ships in 3-10 days

0

148

Husqvarna 505308301

SCREW

$2.49

$

Usually ships in 3-10 days

0

120

Husqvarna 504114401

PULLEY

$9.49

$

In Stock, Qty 7

0

15

Husqvarna 521612501

AIR CHECKER (F) ASSY

$28.99

$

Usually ships in 3-10 days

0

13

Husqvarna 515381101

SCREW

$6.99

$

Usually ships in 3-10 days

0

46

Husqvarna 506745701

BOLT

$3.49

$

In Stock, Qty 8

0

25

Husqvarna 523071701

BEARING
(Superseded to 506610301)

$13.99

$

In Stock, Qty 5

0

140

Husqvarna 575332401

LABEL RECOIL

$

$

Not available

107

Husqvarna 515384901

CORD.EARTH

$4.99

$

Usually ships in 3-10 days

0

115

Husqvarna 504114601

COLLAR

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 521612601

REEDVALVE

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 506741201

SWIVEL

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 504115001

SPRING, SPIRAL

$13.99

$

In Stock, Qty 20+

0

57

Husqvarna 506746001

BRACKET

$11.99

$

In Stock, only 1 left!

0

80

Husqvarna 504116501

BOLT

$3.49

$

In Stock, Qty 10

0

37

Husqvarna 521520401

WASHER

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 515381101

SCREW

$6.99

$

Usually ships in 3-10 days

0

113

Husqvarna 515367101

SCREW

$2.49

$

In Stock, only 3 left!

0

117

Husqvarna 504114901

ROPE

$7.99

$

In Stock, only 2 left!

0

147

Husqvarna 504114301

BOLT

$4.99

$

In Stock, only 4 left!

0

95

Husqvarna 506745601

BOLT

$3.49

$

In Stock, Qty 19

0

94

Husqvarna 521516101

BOLT

$3.49

$

In Stock, Qty 11

0

21

Husqvarna 504119201

BOLT

$3.49

$

In Stock, only 4 left!

0

129

Husqvarna 575331401

KNOB

$5.99

$

Usually ships in 3-10 days

0

127

Husqvarna 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

77

Husqvarna 521613501

MUFFLER

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 521755001

GASKET, CARB (RPLS T155113131)

$4.99

$

In Stock, Qty 13

0

3

Husqvarna 506745201

BOLT

$4.99

$

In Stock, only 4 left!

0

97

Husqvarna 521611801

PLATE

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 521612701

PIPE AIR (S)

$7.99

$

In Stock, Qty 6

0

32

Husqvarna 521613601

PISTON

$39.99

$

Usually ships in 3-10 days

0

144

Husqvarna 506741501

CLIP

$3.49

$

In Stock, Qty 10

0

5

Husqvarna 521613401

GASKET, INSULATOR

$4.99

$

In Stock, only 2 left!

0

153

Husqvarna 575766301

NEEDS DESCRIPTION

$

$

Currently unavailable

85

Husqvarna 515382601

COVER.FAN

$3.49

$

Usually ships in 3-10 days

0
