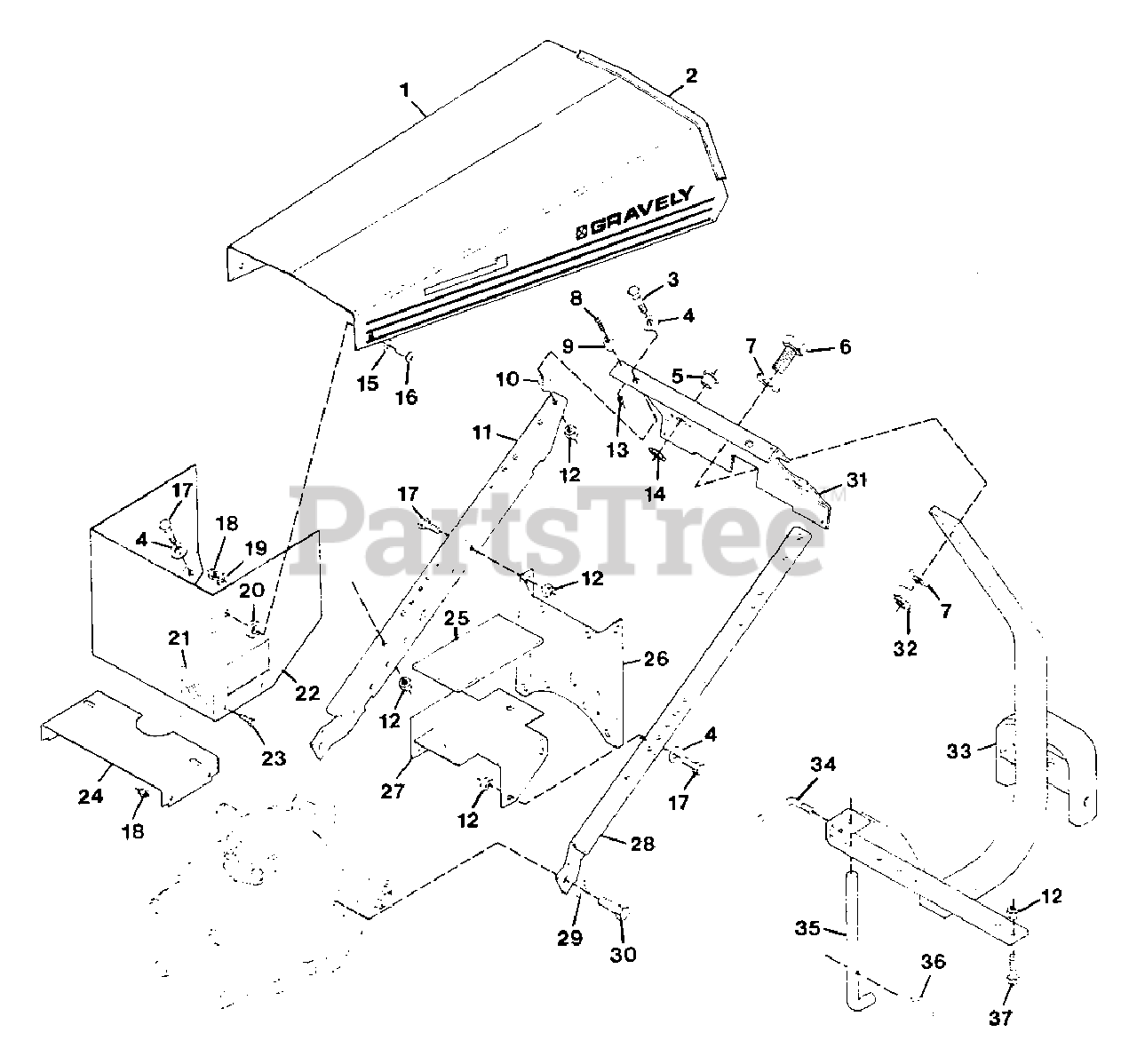

42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed > Parts Diagrams (13) > Frame

Assembly, Hood

Part# 46755

Strip, Cowl

Part# 46424

Bolt, Hex 3/8-16x1.50

Part# 180126 (Superseded to 05957900) 

OEM Warranty Repair Part for Gravely

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bushing, .513x.750x.625

Part# 34738

Bolt, Hex 5/8-11x2.00

Part# 271723 (Superseded to 05968100) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Washer, Flat .656x1.250x.100

Part# 421879 (Superseded to 06430300) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Screw, Mach. 6.32x.625 PHD

Part# 159341 (Superseded to 06110700) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Bumper

Part# 18183

Bushing, Reverse Idler

Part# 43922

Support, Handlebar R.H.

Part# 46796

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800) 

OEM Warranty Repair Part for Gravely

Nut, Mach. Lock 6-32

Part# 427254 (Superseded to 06538900) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Ring, Retaining

Part# 34737

Washer, Flat .281x.625x.065

Part# 120392 (Superseded to 06437300) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Screw, Mach. 1/4-20x1.00 PHD

Part# 160556 (Superseded to 06113600) 

OEM Warranty Repair Part for Gravely

Bolt, Hex 3/8-16x.875

Part# 180121 (Superseded to 05932600) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Nut, Lock 1/4-20 (Manual)

Part# 419454 (Superseded to 06531000) 

Note: (Manual)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Nut, Lock 1/4-20 (Electric)

Part# 419454 (Superseded to 06531000) 

Note: (Electric)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Washer, Flat .313x.875x.065

Part# 446354 (Superseded to 06430700) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Bushing, Hood

Part# 41622

Decal

Part# 10697

Support, Hood

Part# 46387

Bolt, Hex 1/4-20x.625 (Electric)

Part# 180018 (Superseded to 05932000) 

Note: (Electric)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bracket (Electric)

Part# 46390

Note: (Electric)

Pad, Gas Tank

Part# 41075

Bracket

Part# 46388

Bracket, Tank Support

Part# 46824

Support, Handlebar L.H.

Part# 46797

Washer, Lock 1/2 Reg.

Part# 120384 (Superseded to 06300115) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bolt, Hex 1/2-13x1.00

Part# 180173 (Superseded to 05947100) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Plate, Silk Screen (Manual)

Part# 48719

Note: (Manual)

Plate, Silk Screen (Electric)

Part# 48734

Note: (Electric)

Nut, Lock 5/8-11

Part# 418692 (Superseded to 06540700) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Weldment, Hitch

Part# 46392

Handle, Adjusting

Part# 13457

Stand, Kick

Part# 34062

Pin, Hair

Part# 10405

Bolt, Hex 3/8-16x2.00

Part# 180130 (Superseded to 05963300) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Decal, 7240 KDE (Electric)

Part# 46754

Note: (Electric)

Decal, Side Stripe

Part# 44074

Decal, Gravely

Part# 44077

Decal, 8 Lead (4-Speeds)

Part# 43418

Note: (4-Speeds)

Decal, Professional

Part# 44075

Decal, 7240 KD (Manual)

Part# 47023

Note: (Manual)

Decal, Differential Lock (2-Speeds)

Part# 43420

Note: (2-Speeds)
