42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

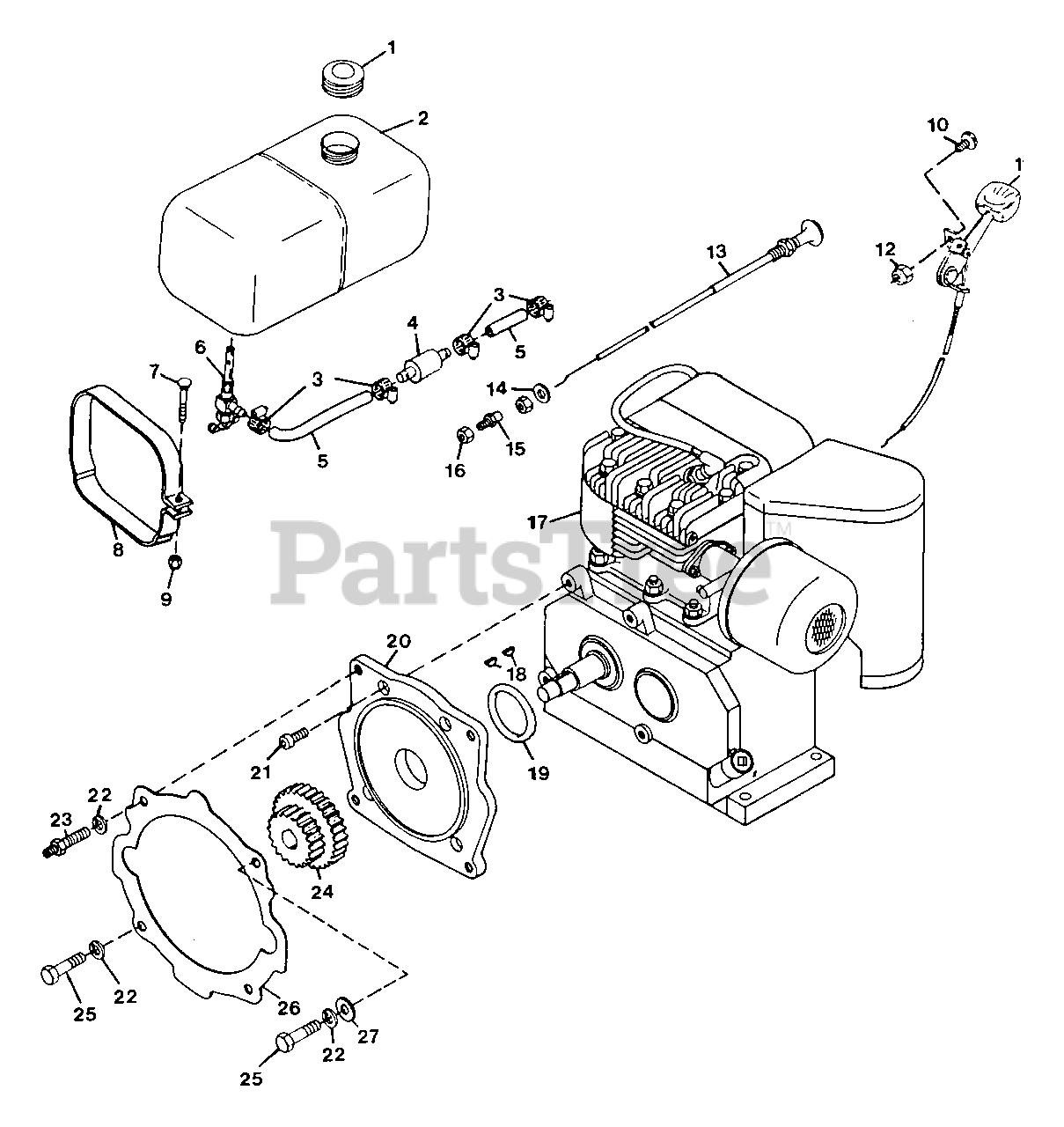

42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed > Parts Diagrams (13) > Fuel And Exhaust System

  • Title
10756

1

Cap, Gas Tank

Part# 10756

OEM Warranty Repair Part for Gravely

Not available

46425

2

Assembly, Fuel Tank

Part# 46425

Not available

32045

3

Clamp, Hose

Part# 32045

Not available

40742

4

Filter, Fuel

Part# 40742

Not available

21134

5

Line, Fuel

Part# 21134

Not available

7354

6

Valve and Strainer

Part# 7354

Not available

126342

7

Bolt, 1/4-20x1.75 Rd.Hd.Sq.Nk.

Part# 126342 (Superseded to 06220000)

OEM Warranty Repair Part for Gravely

Not available

10640

8

Strap, Fuel Tank

Part# 10640

Not available

419454

9

Nut, Lock 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

159920

10

Screw, Mach. 10-24x.50 PHD

Part# 159920 (Superseded to 06113000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

46794

11

Lever, Throttle

Part# 46794

Not available

190254

12

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

46795

13

Lever, Choke Control

Part# 46795

Not available

120394

14

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

18521

15

Adaptor, Conduit

Part# 18521

Not available

120375

16

Nut, Hex 1/4-20

Part# 120375 (Superseded to 06533200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

46760

17

Engine, 10 HP Manual

Part# 46760

Not available

46427

17

Engine, 10 HP Electric

Part# 46427

Not available

124546

18

Key, Woodruff 5/32x5/8 Hrd #6

Part# 124546 (Superseded to 06608500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

46422

19

O-Ring

Part# 46422

Not available

46395

20

Adaptor, Engine

Part# 46395

Not available

46423

21

Bolt, Hex M10-1.5X25 SKTHD

Part# 46423

Not available

131100

22

Washer, Lock 7/16 SP Heavy

Part# 131100 (Superseded to 06310700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

40404

23

Stud

Part# 40404

Not available

17838

24

Gear, 10/12 DP 21/30 Teeth

Part# 17838

Not available

180147

25

Bolt, Hex 7/16-14x1.25

Part# 180147 (Superseded to 05964800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

10635

26

Gasket, Chassis to Adaptor

Part# 10635

Not available

120395

27

Washer, Flat .469x.938x.065

Part# 120395 (Superseded to 06429400)

OEM Warranty Repair Part for Gravely

Not available
