42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed Gear Shift Control Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

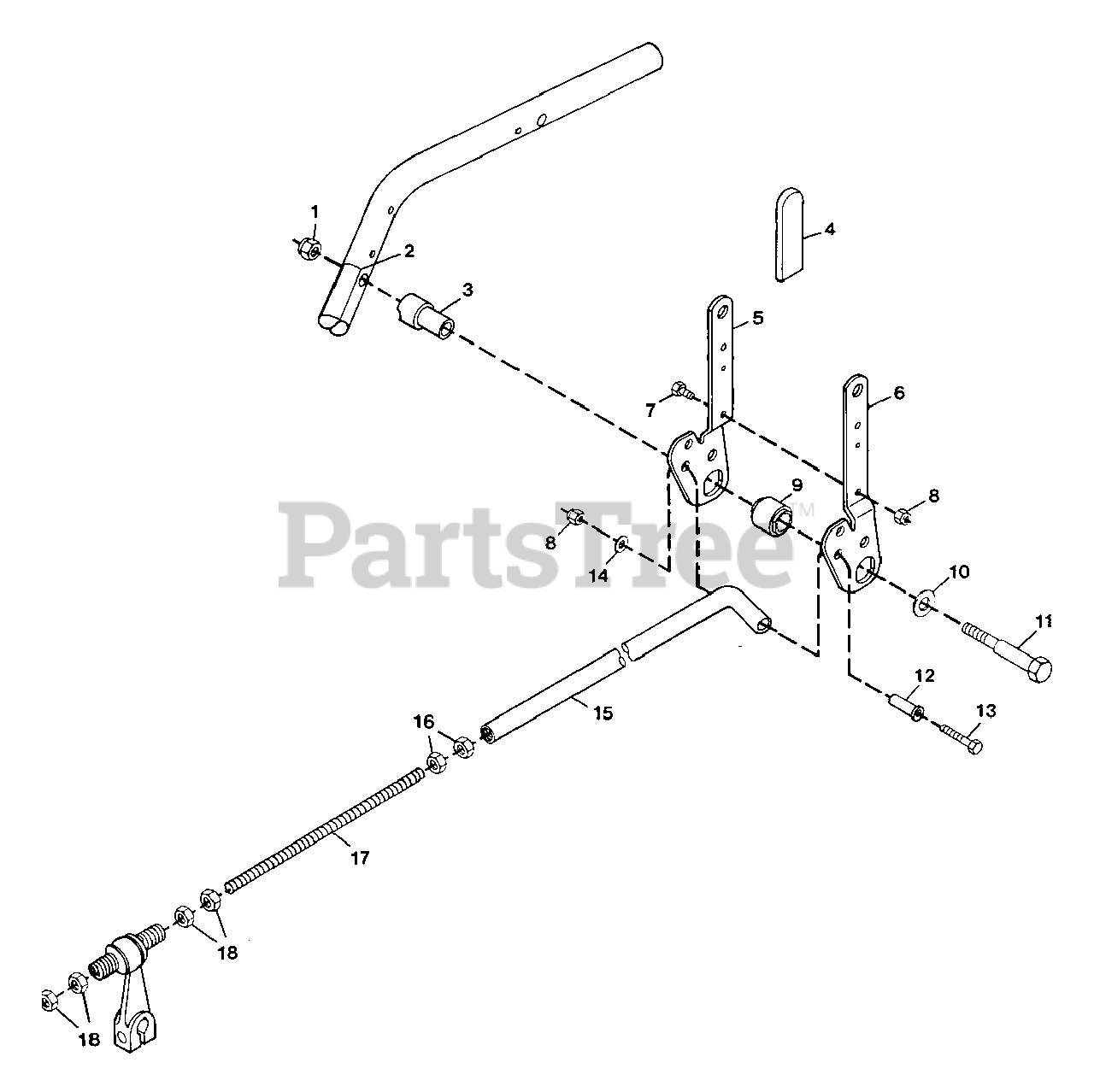

Gear Shift Control Parts Diagram

  • Title

1

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

2

46414

Decal, Gear Shift

$

$

Not available

3

41614

Pivot, Hand Lever L.H.

$

$

Not available

4

44139

Grip, Handle

$

$

Not available

5

41616

Handle, Control R.H.

$

$

Not available

6

41615

Handle, Control L.H.

$

$

Not available

7

Gravely 180018

Bolt, Hex 1/4-20x.625
(Superseded to 05932000)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 1 left!

0

9

41594

Bushing, Handle

$

$

Not available

10

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$1.49

$

In Stock, Qty 6

0

11

47566

Bolt, Hex Step

$

$

Not available

12

41244

Bushing, Oper. Presence Handle

$

$

Not available

13

Gravely 180034

Bolt, Hex 1/4-20x1.50
(Superseded to 05901739)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

45575

Rod, Control Hi-Lo

$

$

Not available

16

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

17

45577

Rod, Control Extension

$

$

Not available

18

Gravely 124829

Nut, Jam 3/8-16 Hex
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0
