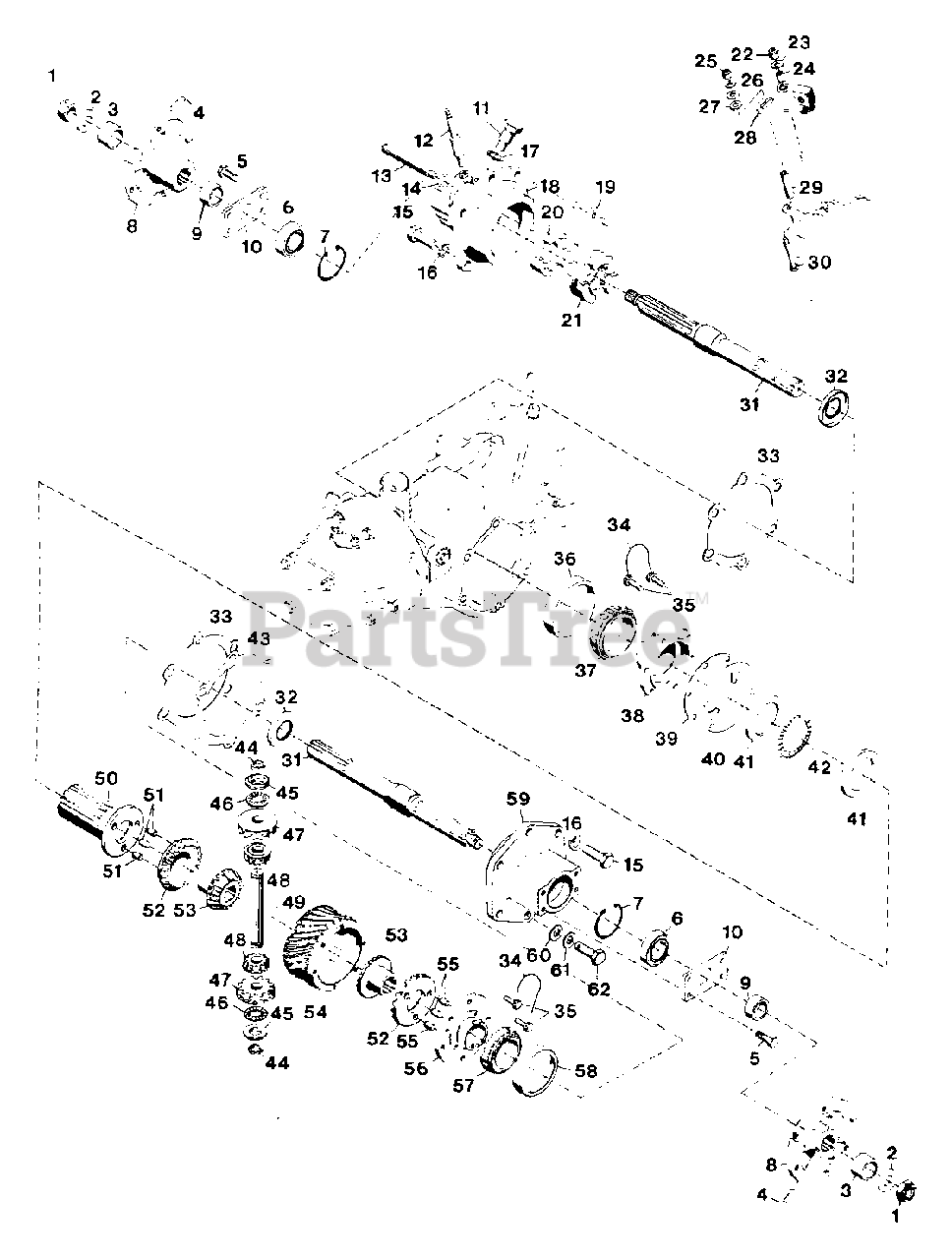

42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed Swiftamatic Differential - 4 Speed Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

Swiftamatic Differential - 4 Speed Parts Diagram

  • Title

1

22502

Nut, Hex 3/4-10 Light Thin

$

$

Not available

2

Gravely 131017

Washer, Flat .812x1.469x.134
(Superseded to 06426000)

$1.99

$

In Stock, Qty 14

0

3

22512

Spacer

$

$

Not available

4

Gravely 426913

Screw, Set 7/16-14x1.0 SCP
(Superseded to 21069400)

$

$

Not available

5

Gravely 180120

Bolt, Hex 3/8-16x.750
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

6

32050

Bearing, Ball 1.000x2.000x.562

$

$

Not available

7

22497

Ring, Retaining 2.000 Bore

$

$

Not available

8

22507

Hub, Wheel

$

$

Not available

9

22501

Spacer

$

$

Not available

10

22503

Plate, End

$

$

Not available

11

6734

Bolt, Stationary Clutch

$

$

Not available

12

10505

Pivot, Stationary

$

$

Not available

13

6721

Pin, Clutch Sliding

$

$

Not available

14

6732

O-Ring, .438x.625x.094

$

$

Not available

15

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

16

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, only 1 left!

0

17

12707

Washer, Oil Strainer Nut

$

$

Not available

18

22494

Housing, Axle 2-Speed

$

$

Not available

19

6719

Yoke, Shifting

$

$

Not available

20

11156

Clutch, Stationary

$

$

Not available

21

11632

Clutch, Shifting

$

$

Not available

22

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

6724

Bushing, Nylon .375x.503x.875

$

$

Not available

25

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

26

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

27

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

6723

Weldment, Arm Shifter

$

$

Not available

29

24382

Bushing

$

$

Not available

30

24383

Bolt, 1/4-20x2.25 Gr. 8 PHD

$

$

Not available

31

22493

Axle, Straight

$

$

Not available

32

22506

Seal, Oil 1.188x2.000x.250

$

$

Not available

33

12597

Gasket, Axle Housing

$

$

Not available

34

Wire, Bolt

Wire, Bolt

$

$

Not available

35

18604

Bolt, Special 5/16-18

$

$

Not available

36

12500

Cup, Roller Bearing

$

$

Not available

37

12501

Cone, Roller Bearing

$

$

Not available

38

22496

Housing, Clutch

$

$

Not available

39

6740

Shim, Worm Gear .020

$

$

Not available

40

6739

Shim, Worm Gear .005

$

$

Not available

41

22500

Race, Thrust 2.00x2.740x.031

$

$

Not available

42

6743

Bearing, Needle Thrust .060

$

$

Not available

43

12595

Shim, Axle Housing .005

$

$

Not available

44

15733

Ring, Retaining .750 Shaft

$

$

Not available

45

15734

Spacer, .765x1.245x.200

$

$

Not available

46

6741

Brg, Needle Thst.752x1.240x.078

$

$

Not available

47

6702

Gear, Diff. Shifting Bevel

$

$

Not available

48

6708

Gear, Spider Bevel

$

$

Not available

49

22499

Pin, Spider

$

$

Not available

50

22498

Shifter, Splined Pinned

$

$

Not available

51

34644

Pin, Dowel .375x.375

$

$

Not available

52

6703

Gear, Pinned Bevel

$

$

Not available

53

6709

Gear, Differential Bevel

$

$

Not available

54

15729

Gear, Worm 8 Start

$

$

Not available

55

6714

Pin, Dowel .375x.500

$

$

Not available

56

12126

Housing, Pinned

$

$

Not available

57

12131

Cone, Roller Bearing

$

$

Not available

58

12130

Cup, Roller Bearing

$

$

Not available

59

22495

Housing, Axle

$

$

Not available

60

45280

Seal, Oil Drain

$

$

Not available

61

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$1.49

$

In Stock, Qty 6

0

62

13624

Bolt, Hex 1/2-13x1.00 Nylon Ins.

$

$

Not available
