42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

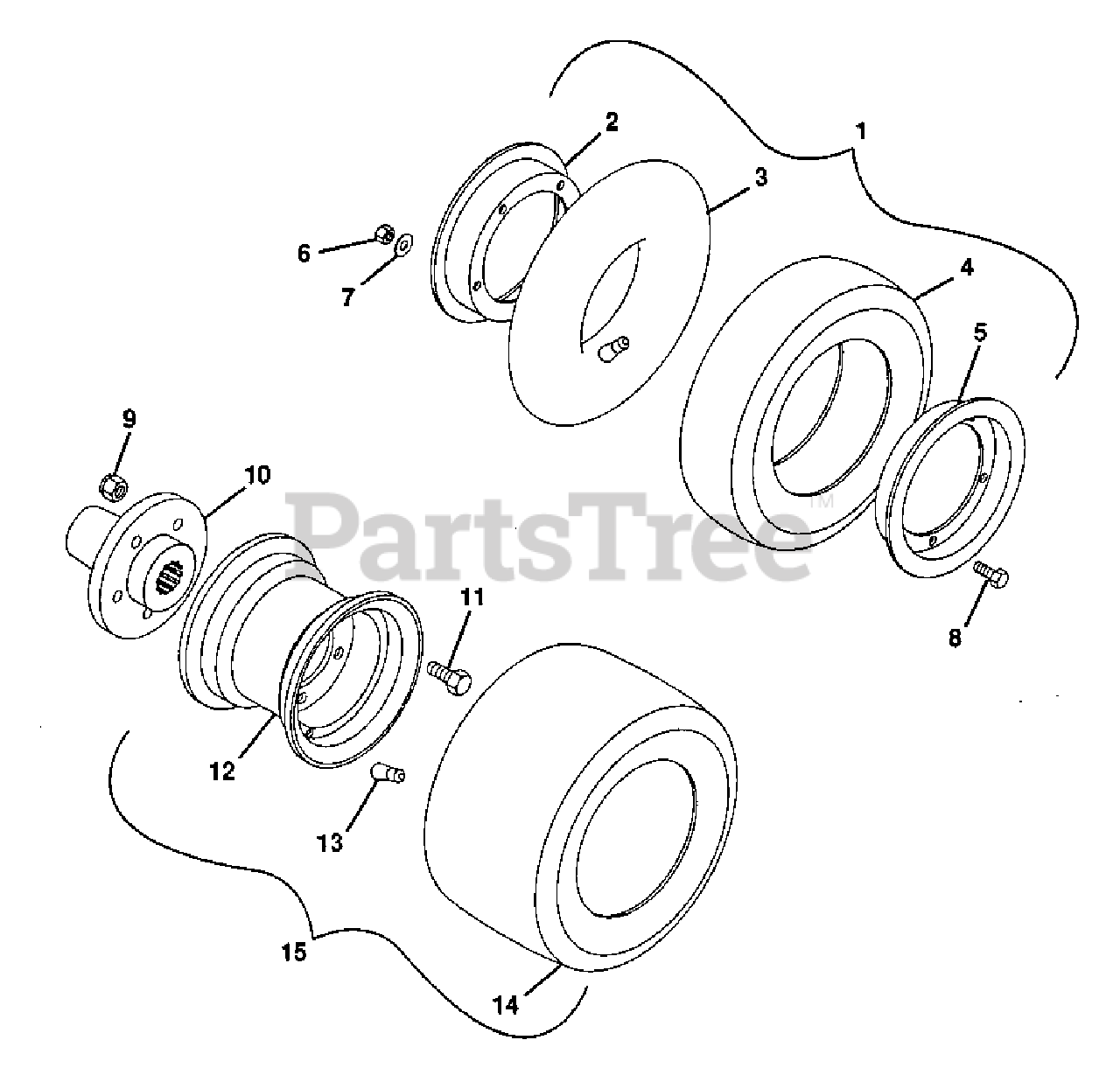

42603 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed > Parts Diagrams (13) > Wheels

  • Title
10141

1

Tire, Ag Type R.H.

Part# 10141

Not available

10142

1

Asm., D.T. Wheel 4.80x4.00-8

Part# 10142

Not available

19563

1

Tire, Wheel Asm. 18x6.50-8

Part# 19563

Not available

21221

1

Wheel, Semi-Pneumatic Asm. 16x5Wx3

Part# 21221

Not available

32260

1

Asm., Wheel Semi-Pneumatic 19x5

Part# 32260

Not available

49152

1

Tire, Ag Type L.H.

Part# 49152

Not available

12674

2

Disc, Inner Wheel

Part# 12674

Not available

11645

3

Tube, 500x8

Part# 11645

Not available

13573

3

Tube, Tractor Tire

Part# 13573

Not available

13836

4

Tire, Tractor D.T. 4.80x4.00-8

Part# 13836

Not available

13835

4

Tire, Tractor Ground Grip 4.00-8

Part# 13835

Not available

18762

4

Tire, Semi-Pneumatic 16x5Wx3

Part# 18762

Not available

19562

4

Tire, 18x6.50-8

Part# 19562

Not available

32632

4

Tire, 19x5 Semi-Pneumatic

Part# 32632

Not available

12673

5

Disc, Wheel

Part# 12673

Not available

124829

6

Nut, Jam 3/8-16 Hex

Part# 124829 (Superseded to 06500100)

OEM Warranty Repair Part for Gravely

Not available

120382

7

Washer, Lock 3/8 Reg.

Part# 120382 (Superseded to 06308800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

428638

8

Bolt, Hex 3/8-16x.625

Part# 428638 (Superseded to 05940100)

OEM Warranty Repair Part for Gravely

Not available

180120

8

Bolt, Hex 3/8-16x.750

Part# 180120 (Superseded to 05959400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

435507

9

Nut, Lock 1/2-13

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

22551

10

Hub

Part# 22551

Note: For 18x8.50x8 Wheel Asm.

Not available

180177

11

Bolt, Hex 1/2-13x1.50

Part# 180177 (Superseded to 05962000)

OEM Warranty Repair Part for Gravely

Not available

23267

12

Rim, 18x8.50-8

Part# 23267

Not available

11191

13

Assembly, Valve Stem

Part# 11191

Not available

15222

14

Tire, 18x8.50-8

Part# 15222

Not available

23268

15

Assembly, Wheel 18x8.50x8

Part# 23268

Not available
