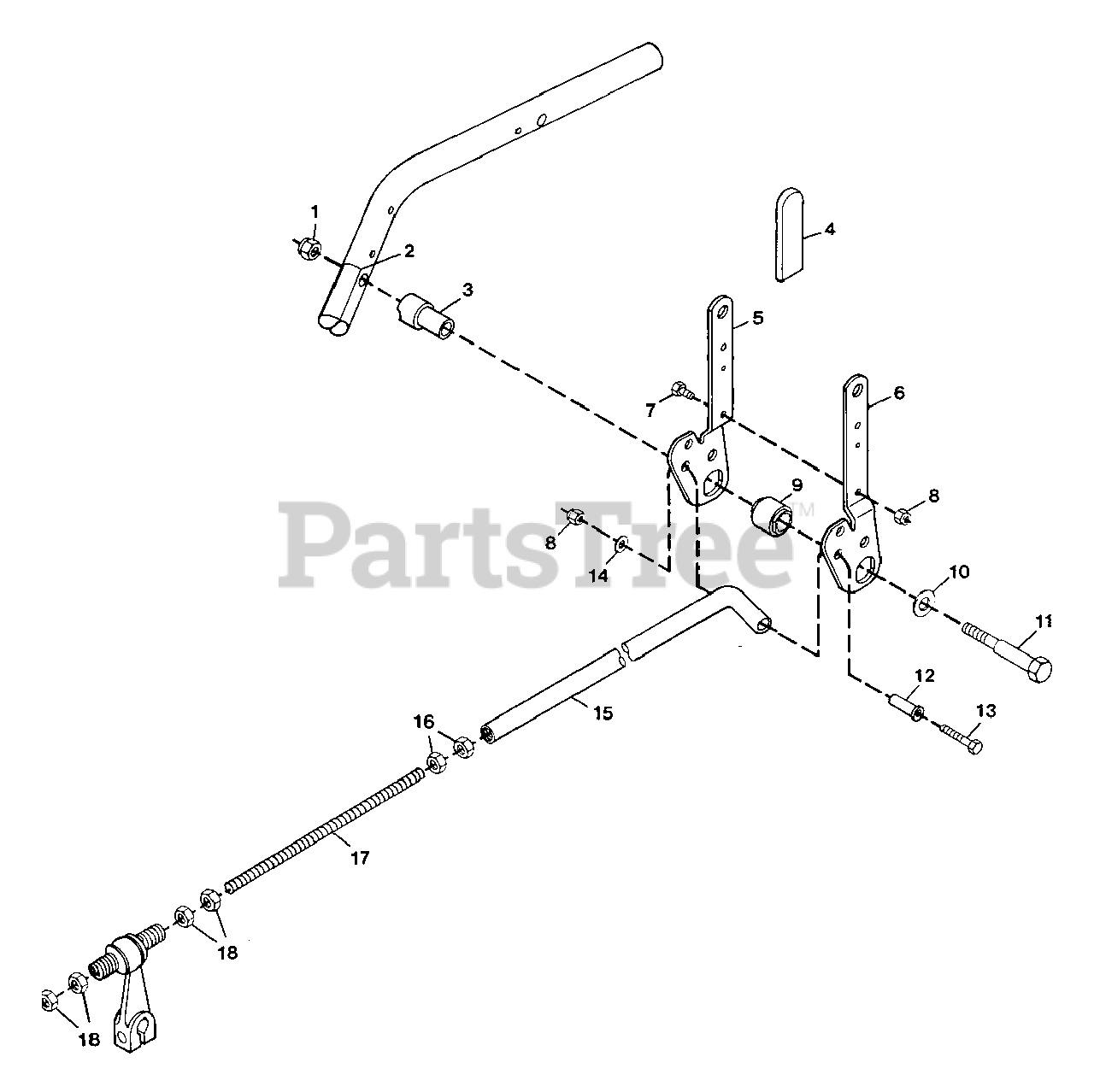

42604 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed Gear Shift Control Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 2-Speed

Gear Shift Control Parts Diagram

  • Title

1

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 046414

DECAL,GEAR SHIFT FRENCH
(Superseded to 05213100)

$

$

Not available

3

Gravely 041614

PVT,HAND LVR L.H.
(Superseded to 08546700)

$

$

Not available

4

Gravely 044139

GRIP,HANDLE
(Superseded to 07529000)

$

$

Not available

5

Gravely 041616

HNDL,CONTROL R.H.
(Superseded to 08546900)

$

$

Not available

6

Gravely 041615

HNDL,CONTROL L.H.
(Superseded to 08546800)

$

$

Not available

7

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

9

Gravely 041594

BUSH.,F.751X1.13X1.07 NY
(Superseded to 07526300)

$

$

Not available

10

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 047566

BLT-HEX .38-16X3.75 PL
(Superseded to 07022800)

$

$

Not available

12

Gravely 041244

BSHG-FLG .257X.38X1.080 NYL
(Superseded to 05521000)

$

$

Not available

13

Gravely 180034

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

14

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 045575

ROD,CONTROL HI-LO
(Superseded to 08560500)

$

$

Not available

16

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 045577

ROD,EXTENSION
(Superseded to 08600200)

$

$

Not available

18

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0
