428 (190-428-100) - Cub Cadet Disconnect Clutch Kit Disconnect Clutch Kit Parts Diagram

Disconnect Clutch Kit

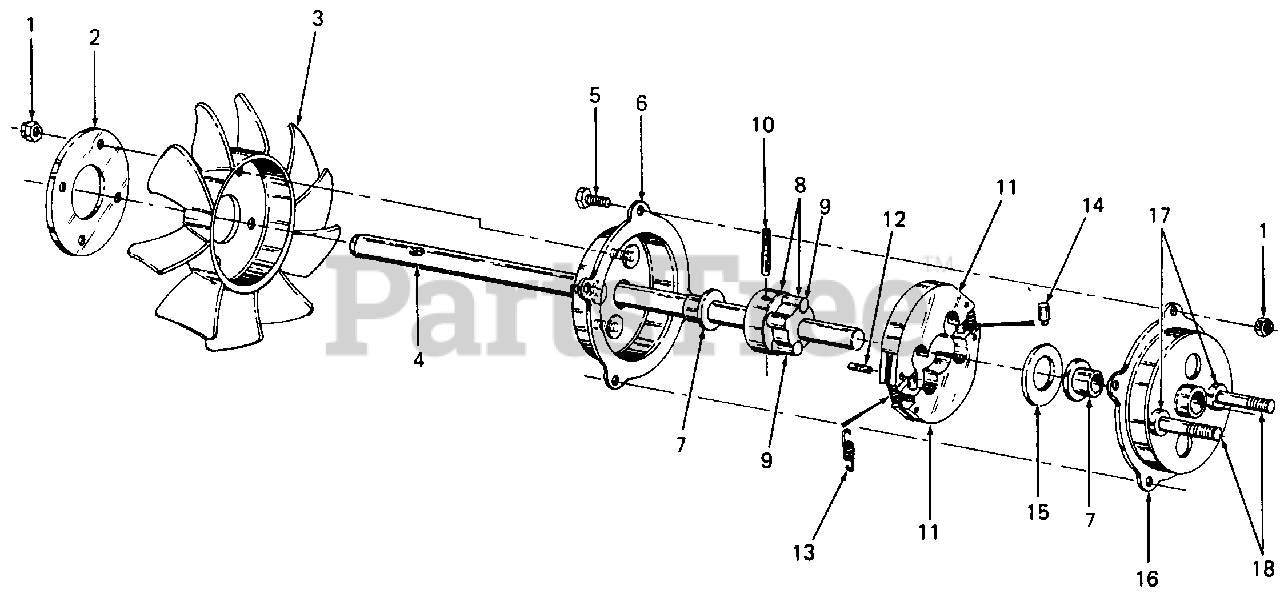

Disconnect Clutch Kit Parts Diagram

  • Title

1

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 703-1415

Spacer, Fan

$

$

Not available

3

Cub Cadet 703-1434

Fan, Cooling
(Superseded to 903-1434)

$

$

Not available

4

Cub Cadet 738-3060

Shaft, Drive

$

$

Not available

Cub Cadet 715-3000

Pin, Spirol Spring, 1/4 Dia X 1.38 Lg

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 703-1430

Cover Assy, Clutch

$

$

Not available

7

Cub Cadet 748-0110

Bearing, Flange, .630 ID

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-1432

Hub Assy, Clutch

Note: [Includes Ref No. 9 (Qty 2)]

$

$

Not available

9

Cub Cadet 731-3067

Damper

$

$

Currently unavailable

10

Cub Cadet 715-3035

Pin, Slotted Roll, 1/4 Dia X 2.25 Lg

$

$

Not available

11

Cub Cadet 703-1433

Shoe Assy, Clutch

Note: [Includes Ref No. 12 (Qty 2) & 14]

$

$

Not available

12

Cub Cadet 715-3013

Pin, Spirol Spring, 1/8 Dia X 5/8 Lg

$

$

Not available

13

Cub Cadet 732-3052

Spring, Extension, .31 Dia X .85 Lg

$

$

Not available

14

Cub Cadet 731-3068

Bumper

$

$

Not available

15

Cub Cadet 736-3088

Washer, Flat, .635 X 1.585 X .062 Thk HDN

$3.99

$

In Stock, only 4 left!

0

16

Cub Cadet 703-1428

Housing, Clutch

$

$

Not available

Cub Cadet 779-3417

Label, Clutch Dust

$

$

Not available

17

Cub Cadet 711-3225

Spacer, .385 X .88 X .25 Lg

$

$

Not available

18

Cub Cadet 710-3174

Bolt, Ribbed Neck, 3/8-24 X 1.5 Lg GR5

$

$

Not available

Cub Cadet 736-0300

Washer, Flat, .385 X .87 X .06 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3054

Nut, Hex Top Lock, 3/8-24 GR5

$3.99

$

In Stock, Qty 20+

0
