42B707-2200-E1 - Briggs & Stratton Vertical Engine Sump Parts Diagram

Vertical Engine

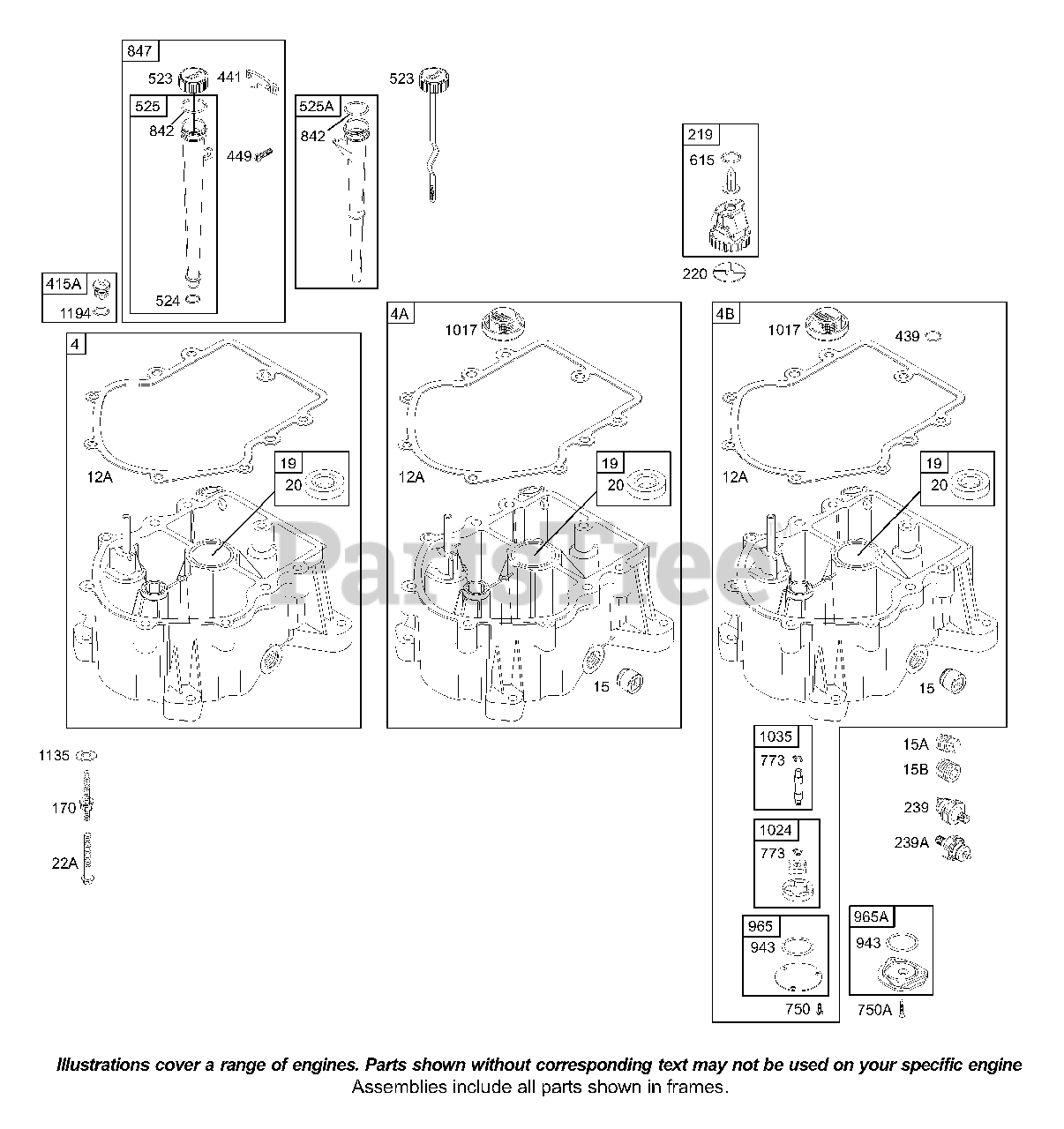

Sump Parts Diagram

  • Title

4

Briggs & Stratton 493304

Sump-Engine (Splash Lube)

$157.99

$

Usually ships in 2-12 days

0

12A

Briggs & Stratton 271189

Gasket-Crankcase (.009" Thick)

$11.99

$

Usually ships in 2-12 days

0

12A

Briggs & Stratton 692292

Gasket-Crankcase (.015" Thick)(standard)

$11.99

$

In Stock, only 4 left!

0

12A

Briggs & Stratton 271188

Gasket-Crankcase (.005" Thick)

$11.99

$

In Stock, Qty 5

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 17

0

19

Briggs & Stratton 399264

Kit-Bushing/seal (PTO Side)

$

$

Not available

20

Briggs & Stratton 291675S

Seal-Oil (PTO Side)

$6.99

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 693972

Screw (Crankcase Cover/sump)
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

219

Briggs & Stratton 394348

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 690412

Washer (Governor Gear)

$

$

Not available

441

Briggs & Stratton 691176

Bracket-Oil Fill

$

$

Not available

449

Briggs & Stratton 691044

SCREW

$3.99

$

In Stock, Qty 9

0

523

Briggs & Stratton 691385

Dipstick

$31.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 692532

Seal-Dipstick Tube

$5.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 690823

Tube-Dipstick

$28.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 690317

Retainer-Governor Shaft
(Superseded to 698290)

$4.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 271170

Seal-O Ring (Dipstick Tube)
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 495715

Dipstick/Tube Assembly

$34.99

$

Usually ships in 2-12 days

0
