42L13G60X8A (96012007705) - Murray 42" Lawn Tractor, 13.5hp (2011) Lift Group (42L13G60X8Alift) Parts Diagram

42" Lawn Tractor, 13.5hp

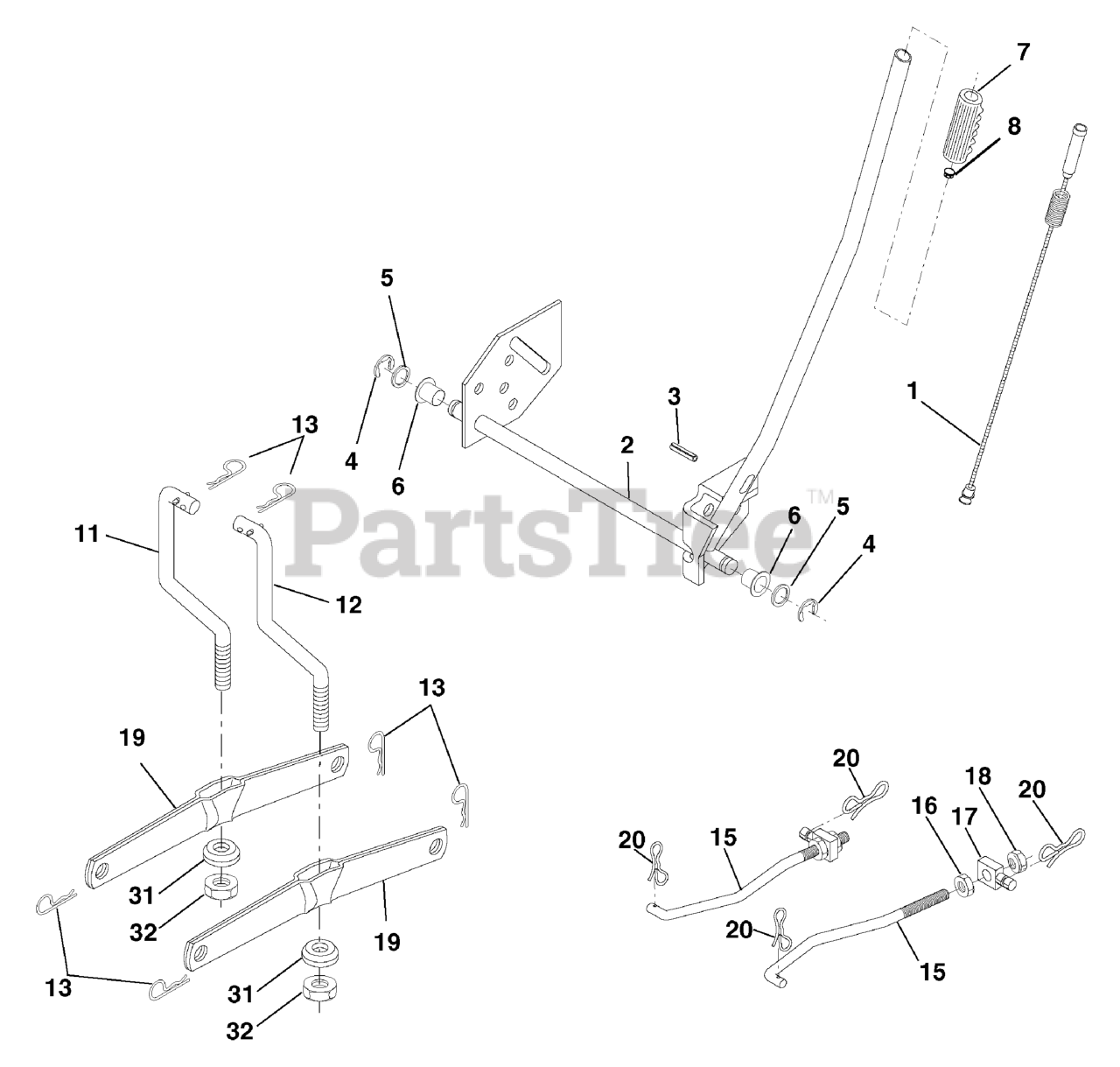

Lift Group (42L13G60X8Alift) Parts Diagram

  • Title

1

Murray 709311

Plunger Asm. Lift LVR

$23.99

$

Usually ships in 2-12 days

0

2

Murray 709110

Shaft Assembly, Lift

$109.99

$

Usually ships in 2-12 days

0

3

Murray 709009

Pin, Groove

$4.49

$

Usually ships in 2-12 days

0

4

Murray 709021

E-Ring

$5.49

$

Usually ships in 2-12 days

0

5

Murray 709242

Washer 21/32 x 1 x 21 Ga.

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709025

Bearing, Nylon
(Superseded to 704994)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 709015

Grip, Handle

$5.49

$

Usually ships in 2-12 days

0

8

Murray 709032

Button, Plunger, Red

$

$

Not available

11

Murray 709072

Link, Lift, L.H.

$20.99

$

Usually ships in 2-12 days

0

12

Murray 709073

Link, Lift, R.H.

$25.99

$

Usually ships in 2-12 days

0

13

Murray 709386

Retainer Spring

$6.99

$

In Stock, only 2 left!

0

15

Murray 709156

Link, Front

$21.99

$

In Stock, only 1 left!

0

16

Murray 709427

Nut, Hex, Jam 1/2-13 unc

$6.49

$

Usually ships in 2-12 days

0

17

Murray 709180

Trunnion

$10.99

$

Usually ships in 2-12 days

0

18

Murray 709434

Locknut, Hex, with Washer Insert 1/2-13 unc

$5.99

$

Usually ships in 2-12 days

0

19

Murray 709074

Arm, Suspension, Rear

$34.99

$

Usually ships in 2-12 days

0

20

Murray 709277

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 705066)

$7.99

$

In Stock, only 1 left!

0

31

Murray 709146

Bearing, Pvt, Lift

$

$

Not available

32

Murray 709429

Nut, Crownlock 3/8-24

$

$

Not available
