42L13G60X8A (96012007705) - Murray 42" Lawn Tractor, 13.5hp (2011) Mower Deck (42L13G60X8Adeck) Parts Diagram

42" Lawn Tractor, 13.5hp

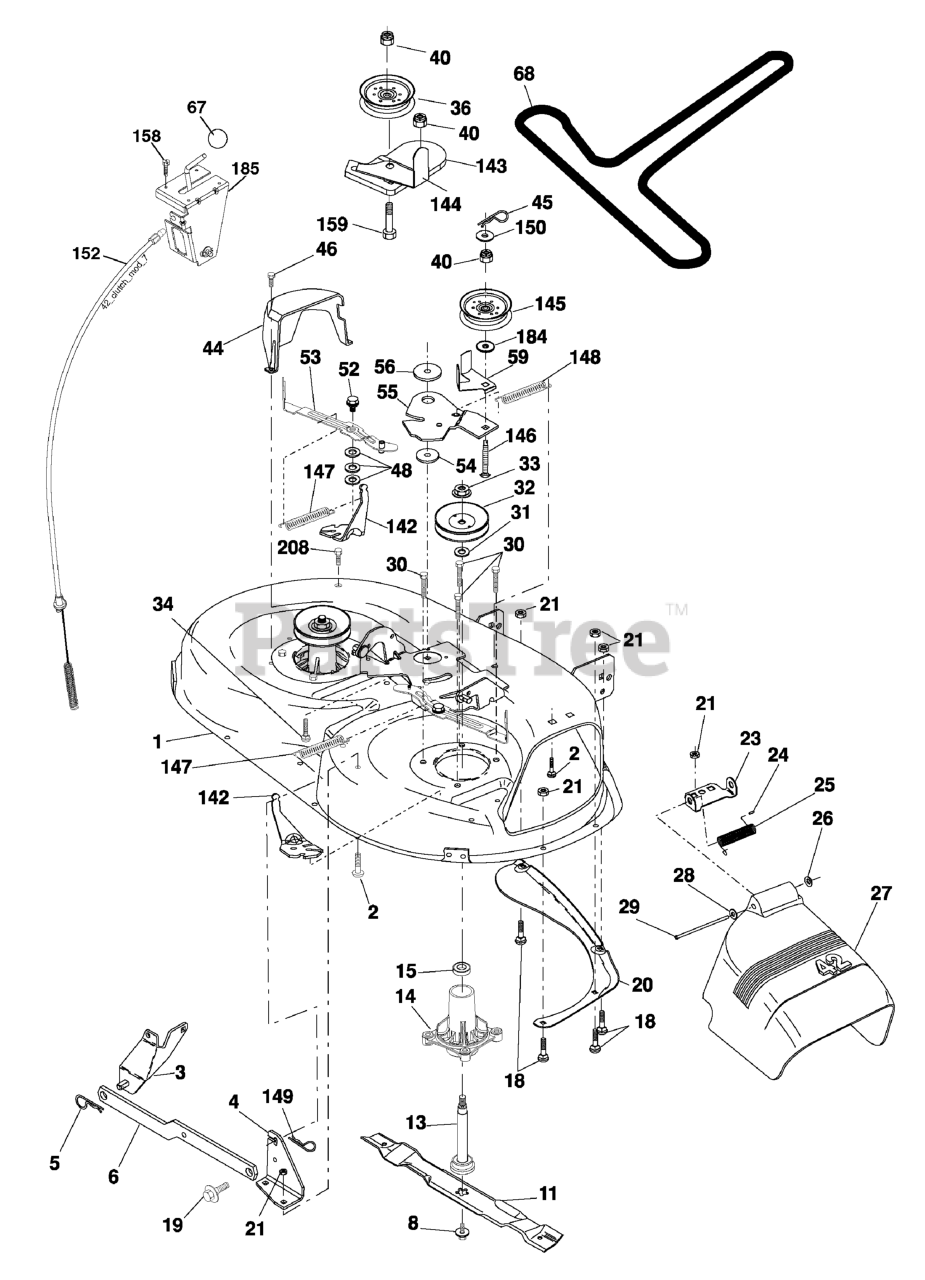

Mower Deck (42L13G60X8Adeck) Parts Diagram

  • Title

1

Murray 709132

Mower Deck Assembly, 42"

$991.99

$

Usually ships in 2-12 days

0

2

Murray 709423

Bolt
(Superseded to 705345)

$7.49

$

Usually ships in 2-12 days

0

3

Murray 709068

Bracket Asm Fr. Sway Bar 3/42

$16.99

$

Usually ships in 2-12 days

0

4

Murray 709118

Bracket Asm Deck 42" Sway Bar

$9.99

$

Usually ships in 2-12 days

0

5

Murray 709386

Retainer Spring

$6.99

$

In Stock, only 2 left!

0

6

Murray 709194

Bar Sway Deck

$7.99

$

Usually ships in 2-12 days

0

8

Murray 709258

Bolt/Washer Asm. 7/16-20 unf
(Superseded to 705059)

$19.99

$

In Stock, only 4 left!

0

11

Murray 704429

BLADE, Mower, 42" Hi-Lift

Note: (For Bagging & discharging)

$37.99

$

In Stock, Qty 13

0

13

Murray 705058

Shaft As m. Mandrel
(Superseded to 705057)

$99.99

$

In Stock, Qty 20+

0

14

Murray 705048

Housing, Mandrel
(Superseded to 705057)

$99.99

$

In Stock, Qty 20+

0

15

Murray 704992

Bearing, Ball, Mandrel

$24.99

$

In Stock, only 2 left!

0

18

Murray 709422

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

19

Murray 709055

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

20

Murray 709112

Baffle, Vortex
(Superseded to 705026)

$54.99

$

In Stock, only 2 left!

0

21

Murray 709430

Nut
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

23

Murray 709193

Bracket, Deflector Mower 42"

$7.49

$

Usually ships in 2-12 days

0

24

Murray 709007

Cap, Sleeve 80 x 112 Blk Mower

$

$

Not available

25

Murray 709036

Spring, Torsion, Deflector 2 52

$12.99

$

Usually ships in 2-12 days

0

26

Murray 709016

Nut, Push Phos & Oil
(Superseded to 704991)

$7.99

$

In Stock, Qty 9

0

27

Murray 709048

Shield, Deflector 42" Blk

$113.99

$

Usually ships in 2-12 days

0

28

Murray 709224

Washer 11/32 x 5/8 x 16 Ga.

$11.99

$

Usually ships in 2-12 days

0

29

Murray 709051

Rod, Hinge 42" 6 75 W/G
(Superseded to 705009)

$8.49

$

In Stock, only 2 left!

0

30

Murray 709158

Screw Thdrol
(Superseded to 709771)

$7.49

$

In Stock, Qty 6

0

31

Murray 709215

Washer, Spacer Mower Vented
(Superseded to 705050)

$7.99

$

In Stock, only 1 left!

0

32

Murray 709097

Pulley, Mandrel

$34.99

$

Usually ships in 2-12 days

0

33

Murray 709296

Nut, Toplock
(Superseded to 705134)

$11.99

$

In Stock, only 3 left!

0

34

Murray 709417

Bolt Carr SH 3/8-16 x 1-1/2 Gr.5
(Superseded to 705340)

$9.49

$

Usually ships in 2-12 days

0

36

Murray 709052

Pulley, Idler, Flat

$38.99

$

Usually ships in 2-12 days

0

40

Murray 709088

Nut Lock 3/8-16

$8.99

$

In Stock, only 3 left!

0

44

Murray 709076

Guard, Mandrel, LH

$23.99

$

Usually ships in 2-12 days

0

45

Murray 709385

Retainer

$12.99

$

Usually ships in 2-12 days

0

46

Murray 709067

Screw, Thdrol 1/4-20 x 5/8 T
(Superseded to 705013)

$8.99

$

Usually ships in 2-12 days

0

48

Murray 709059

Washer, Hardened

$4.49

$

Usually ships in 2-12 days

0

52

Murray 709075

Bolt, Shoulder 5/16-18 unc

$4.49

$

Usually ships in 2-12 days

0

53

Murray 709206

Arm Assembly, Pad, Brake

$50.99

$

Usually ships in 2-12 days

0

54

Murray 709186

Washer, Hardened

$4.49

$

In Stock, only 1 left!

0

55

Murray 709102

Arm, Idler

$28.99

$

Usually ships in 2-12 days

0

56

Murray 709127

Spacer, Retainer

$6.99

$

In Stock, only 1 left!

0

59

Murray 709079

Guard TUV Idler
(Superseded to 705018)

$9.99

$

Usually ships in 2-12 days

0

67

Murray 709013

Knob Round

$9.49

$

Usually ships in 2-12 days

0

68

Murray 709083

V-Belt, 42" Mower

$108.99

$

Usually ships in 2-12 days

0

142

Murray 709281

Anchor Spring Brake Mower

$10.99

$

Usually ships in 2-12 days

0

143

Murray 709106

Bracket Arm Idler 42"

$11.99

$

Usually ships in 2-12 days

0

144

Murray 709109

Keeper Belt 42" Clutch Cable
(Superseded to 709770)

$12.99

$

In Stock, only 3 left!

0

145

Murray 709130

Pulley Idler Flat
(Superseded to 708022)

$52.99

$

In Stock, only 2 left!

0

146

Murray 705031

Bolt Carriage Idler

$7.49

$

Usually ships in 2-12 days

0

147

Murray 709049

Spring Extension

$7.99

$

Usually ships in 2-12 days

0

148

Murray 709137

Spring Return Idler

$10.99

$

In Stock, only 3 left!

0

149

Murray 709133

Retainer Spring Yellow

$7.99

$

Usually ships in 2-12 days

0

150

Murray 709222

Washer 9/32 x 3/4 x 10 Ga.

$7.99

$

Usually ships in 2-12 days

0

152

Murray 708178

Clutch Cable 42"

$

$

Not available

158

Murray 709192

Screw Hex Thd Cut 1/4-20 x 1/

$5.49

$

Usually ships in 2-12 days

0

159

Murray 709425

Bolt Rdhd Sqn 3/8-16 unc x 1-3/

$4.49

$

Usually ships in 2-12 days

0

184

Murray 709229

Washer 13/32 x 7/8 x 10 Ga.

$7.99

$

Usually ships in 2-12 days

0

185

Murray 709217

Head Asm Cable Clutch

$91.99

$

Usually ships in 2-12 days

0

208

Murray 709191

Screw THDROL 3/8-16 x 1/2

$4.49

$

Usually ships in 2-12 days

0

--

Murray 705057

MANDREL HOUSING

Note: (Includes Housing, Shaft & bearing only)

$99.99

$

In Stock, Qty 20+

0

--

Murray 709331

REPLACEMENT MOWER, Complete

$1268.99

$

Usually ships in 2-12 days

0
