42L15G60X8A (960120078) - Murray 42" Lawn Tractor, 15.5hp (2010) 42" Mower Deck - Lift Group (42L15G60X8A) Parts Diagram

42" Lawn Tractor, 15.5hp

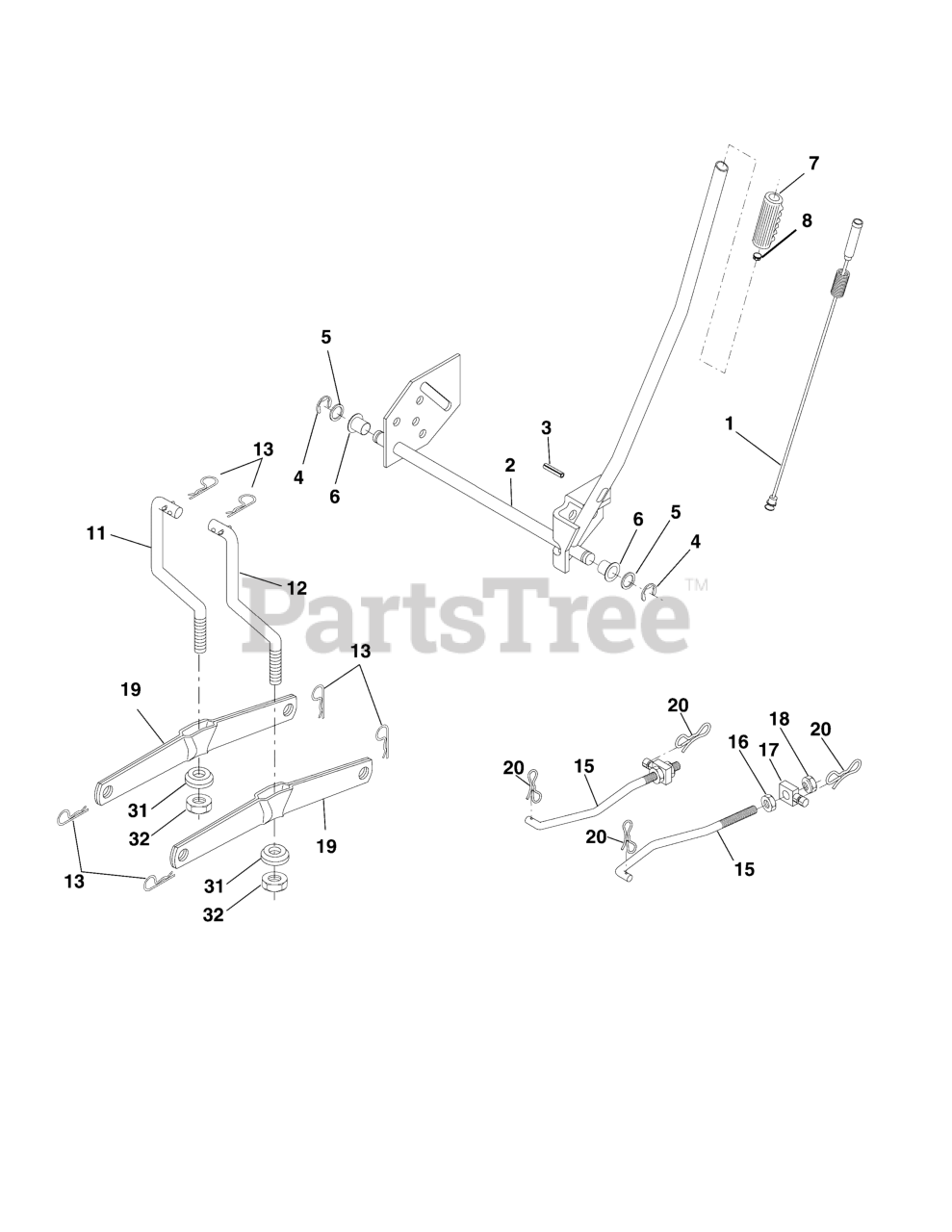

42" Mower Deck - Lift Group (42L15G60X8A) Parts Diagram

  • Title

1

Murray 709311

Plunger Asm Lift Lever

$23.99

$

Usually ships in 2-12 days

0

2

Murray 709110

Shaft Asm Lift RH

$103.99

$

Usually ships in 2-12 days

0

3

Murray 709009

Pin Groove 1 500 Zinc

$4.49

$

Usually ships in 2-12 days

0

4

Murray 709021

E Ring #5133-62

$5.49

$

Usually ships in 2-12 days

0

5

Murray 709242

Washer 21/32 x 1 x 21 Ga.

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709025

Bearing Nylon Blk 629 Id
(Superseded to 704994)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 709015

Grip Handle

$5.49

$

Usually ships in 2-12 days

0

8

Murray 709032

Button Plunger

$5.99

$

Usually ships in 2-12 days

0

11

Murray 709072

Link Lift LH Fixed Length

$20.99

$

Usually ships in 2-12 days

0

12

Murray 709073

Link Lift RH Fixed Length

$24.99

$

Usually ships in 2-12 days

0

13

Murray 709386

Retainer Spring

$6.49

$

In Stock, only 2 left!

0

15

Murray 709156

Link Front

$20.99

$

In Stock, only 1 left!

0

16

Murray 709427

Nut Jam Hex 1/2-13 unc

$5.99

$

Usually ships in 2-12 days

0

17

Murray 709180

Trunnion

$10.99

$

Usually ships in 2-12 days

0

18

Murray 709434

Nut Lockw/Wsh 1/2-13 unc

$5.99

$

Usually ships in 2-12 days

0

19

Murray 709074

Arm Suspension Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 709277

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 709066)

$94.99

$

Usually ships in 2-12 days

0

31

Murray 709146

Bearing Pvt Lift

$7.49

$

Usually ships in 2-12 days

0

32

Murray 709429

Nut Crownlock 3/8-24

$2.99

$

Usually ships in 2-12 days

0
