42L15G60X8A (960120078) - Murray 42" Lawn Tractor, 15.5hp (2010) Drive Group (42L15G60X8A) Parts Diagram

42" Lawn Tractor, 15.5hp

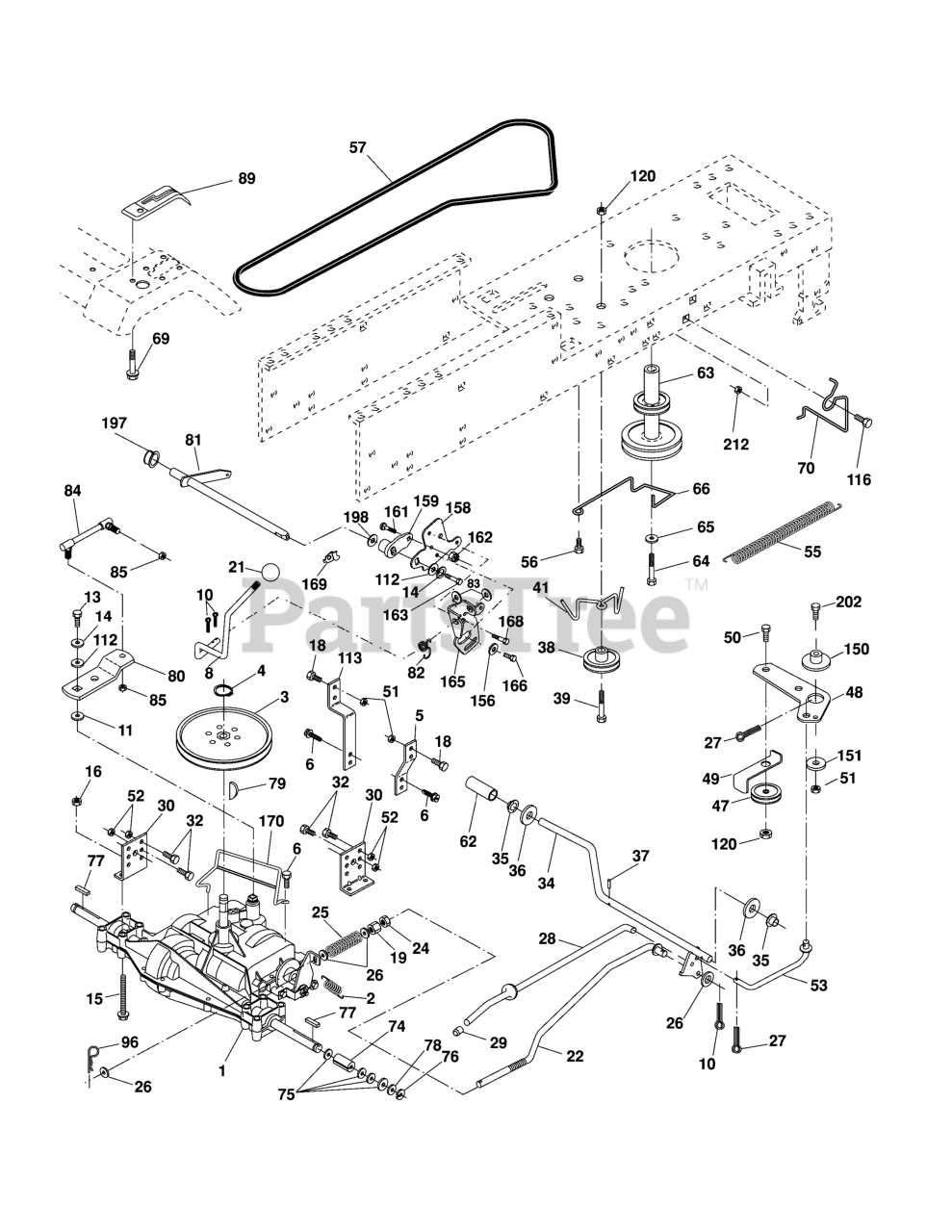

Drive Group (42L15G60X8A) Parts Diagram

  • Title

1

TRANSAXLE, Peerless Model 206-545C

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Murray 709089

Spring Return Brake

$8.49

$

Usually ships in 2-12 days

0

3

Murray 709035

Pulley Transaxle 18" Tires

$62.99

$

Usually ships in 2-12 days

0

4

Murray 709022

Ring Retainer # 5100-62

$14.99

$

Usually ships in 2-12 days

0

5

Murray 709029

Strap Torque 30 Degrees RH

$5.99

$

Usually ships in 2-12 days

0

6

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

8

Murray 709252

Rod Shifter Blk

$25.99

$

Usually ships in 2-12 days

0

10

Murray 709447

Pin Cotter 1/8 x 1 Cad

$5.49

$

Usually ships in 2-12 days

0

11

Murray 709008

Washer Plate Shf 388 Sq Hole

$6.49

$

Usually ships in 2-12 days

0

13

Murray 709437

Bolt 1/4-28 unf Gr. 8 w/Patch

$5.49

$

Usually ships in 2-12 days

0

14

Murray 709001

Washer Lock Hvy Helical 1/4

$4.99

$

Usually ships in 2-12 days

0

15

Murray 709436

Bolt Hex Flghd 5/16-18 Gr. 5

$4.49

$

Usually ships in 2-12 days

0

16

Murray 705350

Nut 5/16-18

$5.99

$

Usually ships in 2-12 days

0

18

Murray 709443

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5

$8.49

$

Usually ships in 2-12 days

0

19

Murray 709433

Nut Lock Hex w/Ins 3/8-16 unc

$4.49

$

Usually ships in 2-12 days

0

21

Murray 709014

Knob

$12.99

$

Usually ships in 2-12 days

0

22

Murray 709047

Rod Brake LT

$28.99

$

Usually ships in 2-12 days

0

24

Murray 709426

Nut Hex Jam 3/8-16 unc

$7.99

$

Usually ships in 2-12 days

0

25

Murray 709012

Spring Rod Brake 2 00 Zinc

$6.99

$

Usually ships in 2-12 days

0

26

Murray 709228

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 705335)

$5.99

$

Usually ships in 2-12 days

0

27

Murray 709446

Pin Cotter 1/8 x 3/4 Cad

$4.99

$

Usually ships in 2-12 days

0

28

Murray 709184

Rod Brake Parking LT/YT

$6.49

$

Usually ships in 2-12 days

0

29

Murray 124236X

Cap Brake Parking
(Superseded to 709041)

Note: (This part is not serviced by Briggs & Stratton.)

$7.99

$

Usually ships in 2-12 days

0

30

Murray 709138

Bracket Transaxle

$5.49

$

Usually ships in 2-12 days

0

32

Murray 709439

Bolt Fin Hex 5/16-18 x 3/4
(Superseded to 705363)

$5.99

$

Usually ships in 2-12 days

0

34

Murray 709177

Shaft Asm Pedal Foot Nibbed

$35.99

$

Usually ships in 2-12 days

0

35

Murray 709025

Bearing Nylon Blk 629 Id
(Superseded to 704994)

$6.49

$

Usually ships in 2-12 days

0

36

Murray 709241

Washer 21/32 x 1 x 16 Ga.

$4.99

$

Usually ships in 2-12 days

0

37

Murray 709107

Pin Roll 3/16 x 1"

$6.99

$

Usually ships in 2-12 days

0

38

Murray 709196

Pulley Composite Flat

$39.99

$

Usually ships in 2-12 days

0

39

Murray 709420

Bolt 3/8-16 x 2-3/4
(Superseded to 705343)

$10.99

$

In Stock, only 1 left!

0

41

Murray 709176

Keeper Belt Idler

$7.99

$

Usually ships in 2-12 days

0

47

Murray 709046

Pulley Idler V Groove Plastic

$68.99

$

Usually ships in 2-12 days

0

48

Murray 709099

Bellcrank Clutch Grnd Drv STL

$6.49

$

Usually ships in 2-12 days

0

49

Murray 709033

Retainer Belt Style Spring

$7.99

$

Usually ships in 2-12 days

0

50

Murray 709417

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
(Superseded to 705340)

$9.49

$

Usually ships in 2-12 days

0

51

Murray 709431

Nut Crownlock 3/8-16 unc
(Superseded to 705351)

$6.49

$

Usually ships in 2-12 days

0

52

Murray 709430

Nut Crownlock 5/16-18 unc
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

53

Murray 709290

Link Clutch

$20.99

$

Usually ships in 2-12 days

0

55

Murray 704989

Spring Return Clutch 6 75

$23.99

$

Usually ships in 2-12 days

0

56

Murray 709153

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

57

Murray 709069

V-Belt Ground Drive 95.25

$100.99

$

Usually ships in 2-12 days

0

62

Murray 709453

Cover Pedal Blk Round

$9.49

$

Usually ships in 2-12 days

0

63

Murray 709173

Engine Pulley LT/YT

$68.99

$

Usually ships in 2-12 days

0

64

Murray 709157

Bolt Hex 7/16-20 x 4 Gr. 5
(Superseded to 705032)

$7.99

$

Usually ships in 2-12 days

0

65

Murray 709004

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 705317)

$4.99

$

In Stock, only 2 left!

0

66

Murray 709100

Keeper Belt Engine

$11.99

$

Usually ships in 2-12 days

0

69

Murray 709081

Screw 1/4 x 1/2 unc
(Superseded to 705019)

$5.49

$

Usually ships in 2-12 days

0

70

Murray 709061

Guide Belt Mower Drive RH

$

$

Not available

74

Murray 709064

Spacer Axle

$5.49

$

Usually ships in 2-12 days

0

75

Murray 709031

Washer 25/32 x 1 1/4 x 16 Ga.
(Superseded to 704996)

$7.99

$

In Stock, Qty 20+

0

76

Murray 709020

E-ring #5133-75

$4.99

$

Usually ships in 2-12 days

0

77

Murray 704998

Key Square 2 0 x 1845/ 1865

$9.99

$

Usually ships in 2-12 days

0

78

Murray 709030

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 704995)

$7.99

$

In Stock, Qty 7

0

79

Murray 709292

Key Woodruff

$6.99

$

Usually ships in 2-12 days

0

80

Murray 709087

Arm Shift Transaxle

$4.49

$

Usually ships in 2-12 days

0

81

Murray 709122

Shaft Asm Cross Taper

$61.99

$

Usually ships in 2-12 days

0

82

Murray 709126

Spring Torsion Shift

$5.99

$

Usually ships in 2-12 days

0

83

Murray 709235

Washer 17/32 x 3/4 x 16 Ga.

$

$

Not available

84

Murray 709136

Link Transaxle

$79.99

$

Usually ships in 2-12 days

0

85

Murray 709092

Nut Lock Center 1/4-28

$4.99

$

Usually ships in 2-12 days

0

89

Murray 709239

Console Shift

$22.99

$

Usually ships in 2-12 days

0

96

Murray 709385

Retainer Spring 1"

$12.99

$

Usually ships in 2-12 days

0

112

Murray 709222

Washer 9/32 x 3/4 x 10 Ga.

$7.99

$

Usually ships in 2-12 days

0

113

Murray 709045

Strap Torque 90 Degrees LH

$

$

Not available

116

Murray 709424

Bolt Rdhd Sq Neck 3/8-16 x 1

$4.99

$

Usually ships in 2-12 days

0

120

Murray 709088

Nut Lock Flg 3/8-16

$8.99

$

In Stock, only 3 left!

0

150

Murray 709174

Spacer Retainer Lt

$5.99

$

In Stock, only 1 left!

0

151

Murray 709233

Washer 13/32 x 2 x 10 Ga.
(Superseded to 705336)

$4.49

$

Usually ships in 2-12 days

0

156

Murray 709134

Washer Srrrtd 5/16 ID x 1.0 x .125

$4.99

$

Usually ships in 2-12 days

0

158

Murray 709121

Bracket Shift Mount

$5.99

$

Usually ships in 2-12 days

0

159

Murray 709204

Hub Shift
(Superseded to 708462)

$9.99

$

Usually ships in 2-12 days

0

161

Murray 709421

Bolt 1/4-20 x 3/4 Gr. 5
(Superseded to 705726)

$4.49

$

In Stock, only 1 left!

0

162

Murray 705346

Nut Crownlock 1/4-20 unc

$5.99

$

Usually ships in 2-12 days

0

163

Murray 709440

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

$5.49

$

Usually ships in 2-12 days

0

165

Murray 709124

Bracket Pivot Lever

$6.99

$

Usually ships in 2-12 days

0

166

Murray 709163

Screw 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

168

Murray 709119

Bolt Shoulder 5/16-18 x .561

$6.49

$

Usually ships in 2-12 days

0

169

Murray 709120

Plate Fastening

$7.49

$

Usually ships in 2-12 days

0

170

Murray 709210

Keeper, Belt Transaxle

$22.99

$

Usually ships in 2-12 days

0

197

Murray 709140

Nyliner Snap-In 5/8

$9.99

$

Usually ships in 2-12 days

0

198

Murray 709139

Washer Nylon

$11.99

$

Usually ships in 2-12 days

0

202

Murray 709418

Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
(Superseded to 705341)

$4.99

$

Usually ships in 2-12 days

0

212

Murray 709088

Nut Hex Flg Lock

$8.99

$

In Stock, only 3 left!
