42L15G60X8A (960120078) - Murray 42" Lawn Tractor, 15.5hp (2010) Engine Group (42L15G60X8Aeng) Parts Diagram

42" Lawn Tractor, 15.5hp

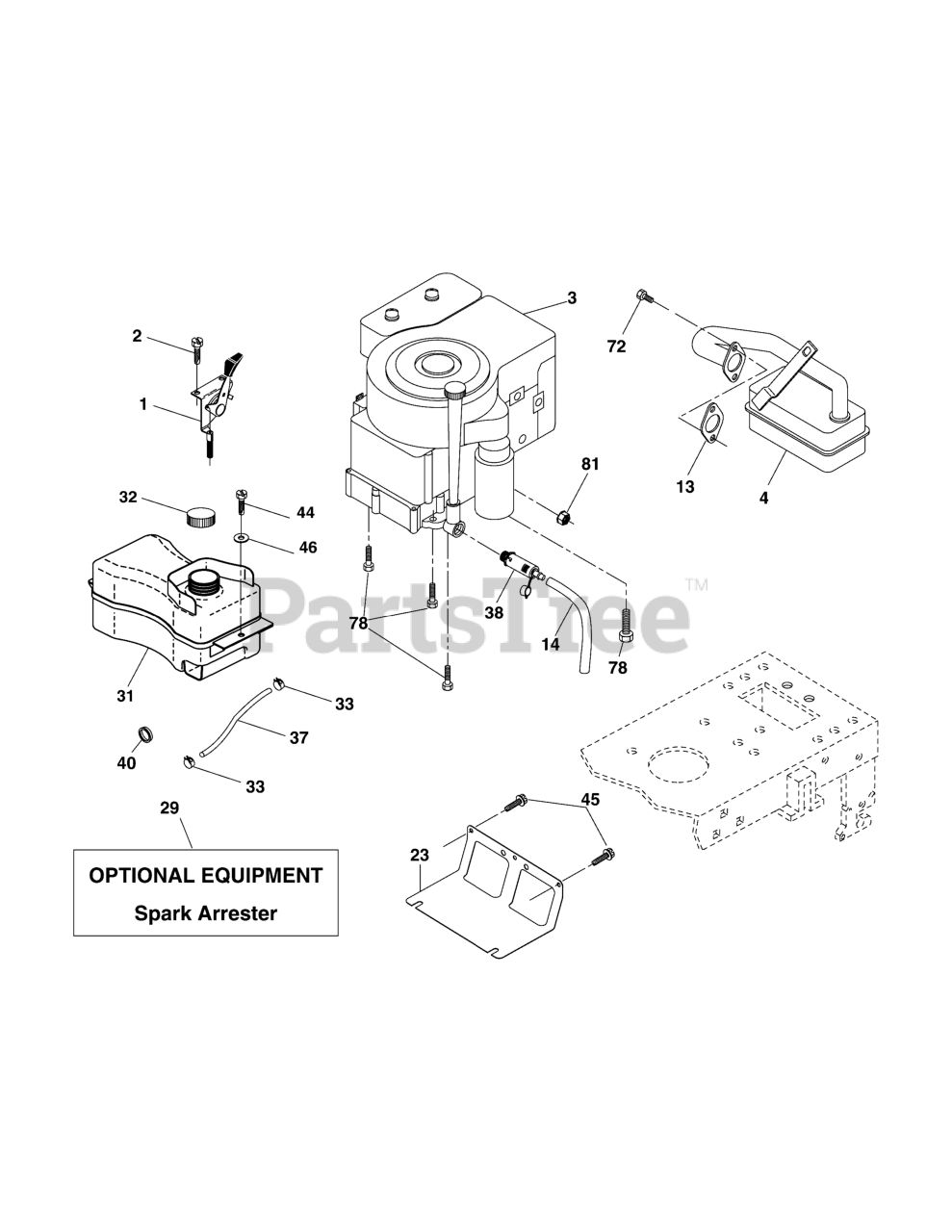

Engine Group (42L15G60X8Aeng) Parts Diagram

  • Title

1

Murray 170545X505

** Control Th/ch Paddle
(Superseded to 709150)

Note: (This part is not serviced by Briggs & Stratton.)

$31.99

$

Usually ships in 2-12 days

0

2

Murray 709192

Screw Hex Thd Cut 1/4-20 x 1/2

$5.49

$

Usually ships in 2-12 days

0

3

Murray 31A607-0741-B1

Engine, B&S

Note: ( Engine Model: 31A607-0741-B1 )

$

$

Currently unavailable

4

Murray 709066

Muffler Exhaust B&S

$100.99

$

In Stock, only 1 left!

0

13

Murray 709117

Gasket Eng 1 313 Id Tin Plated

$24.99

$

In Stock, only 1 left!

0

14

Murray 770311

Tube Drain Oil Easy

$8.99

$

Usually ships in 2-12 days

0

23

Murray 709143

Shield BRN/DBR Guard

$

$

Not available

29

Murray 709065

Kit Spark Arrestor (Flat Scrn)

$109.99

$

Usually ships in 2-12 days

0

31

Murray 709318

Tank Fuel Front

$

$

Not available

32

Murray 709351

Cap Fuel
(Superseded to 709734)

$31.99

$

Usually ships in 2-12 days

0

33

Murray 709034

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

37

Murray 709299

Line Fuel 20"

$28.99

$

Usually ships in 2-12 days

0

38

Murray 709359

Valve Drain Oil
(Superseded to 705244)

$24.99

$

Usually ships in 2-12 days

0

40

Murray 708034

Bushing Snap Nyl Blk Fuel Line

$8.49

$

Usually ships in 2-12 days

0

44

Murray 709189

Screw Thdrol 1/4-20 x 3/4
(Superseded to 705329)

$4.49

$

Usually ships in 2-12 days

0

45

Murray 709148

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 705322)

$6.49

$

In Stock, only 1 left!

0

46

Murray 709223

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0

72

Murray 709243

Screw Socket Head 5/16-18 x 3/4
(Superseded to 705054)

$4.49

$

In Stock, only 2 left!

0

78

Murray 709153

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

81

Murray 709428

Nut Keps Hex 1/4-20 unc
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0
