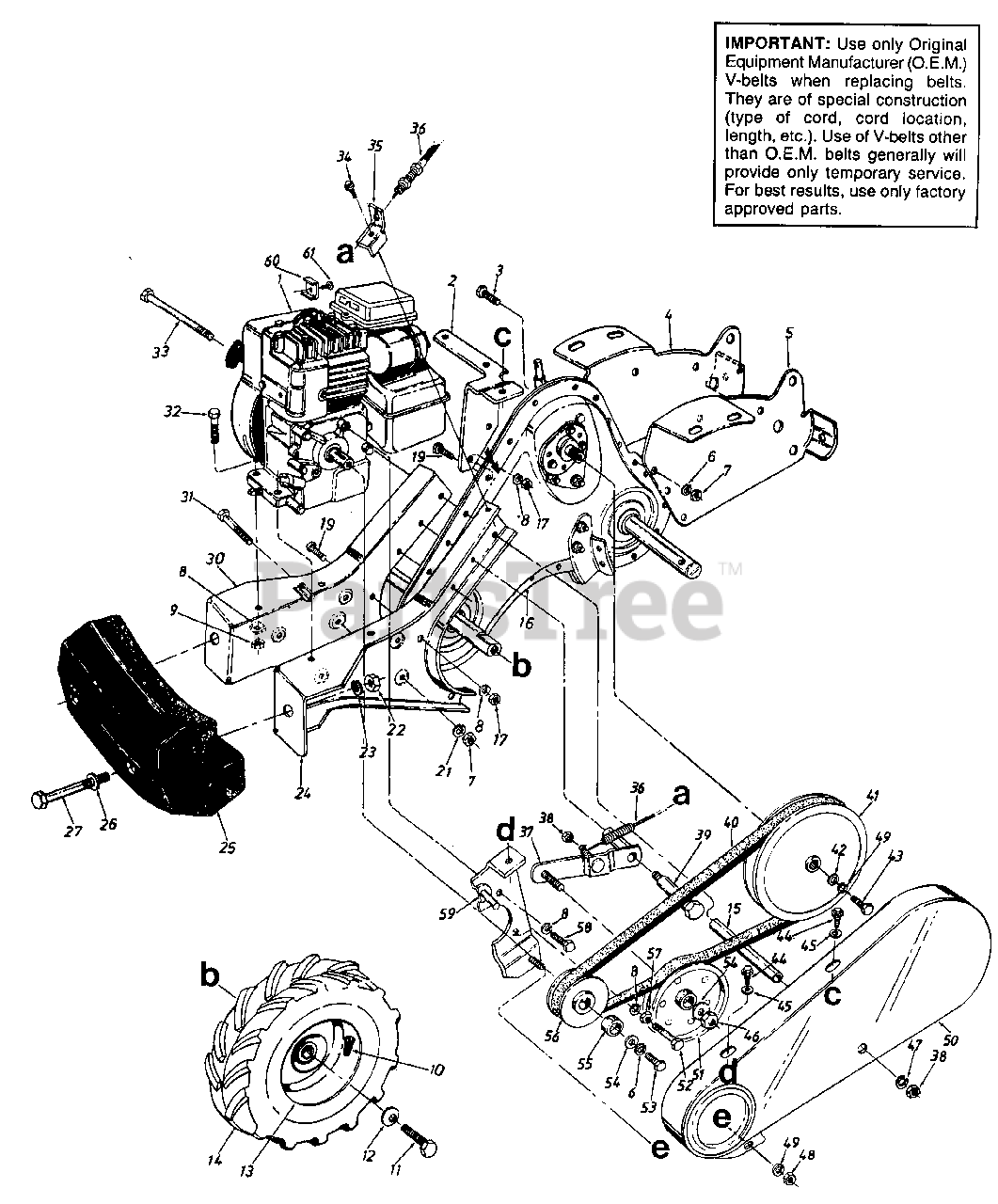

430 (210-430-100) - Cub Cadet Rear-Tine Tiller (1990) Rear Tine Tiller Part 2 Parts Diagram

Rear-Tine Tiller

Rear Tine Tiller Part 2 Parts Diagram

  • Title

1

Note: ENGINE

$

$

Not available

2

Cub Cadet 784-0199A

BRACKET-MTG

Variations

784-0199A-0637

Cub Cadet 784-0199A-0637

BRACKET-MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

784-0199A-0638

Cub Cadet 784-0199A-0638

BELT COVER MOUNTING BRKT - MTD/TROY-BILT RED (0638)

$

$

Not available

784-0199A-0640

Cub Cadet 784-0199A-0640

BELT COVER MOUNTING BRKT - CO-OP GREEN (0640)

$

$

Not available

$

$

3

Cub Cadet 710-0253

SCREW-HEX 3/8-16 X 1.00
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 784-0178

BRACKET-MTG-RH
(Superseded to 784-0178-0637)

Variations

784-0178-0483

Cub Cadet 784-0178-0483

USE 784-0178-0637 BRACKET-MTG - CHARCOAL GRAY (0483)

$

$

Not available

784-0178-0637

Cub Cadet 784-0178-0637

BRACKET-MTG-RH - POWDER BLACK (0637)

$

$

Not available

784-0178-0638

Cub Cadet 784-0178-0638

USE 784-0178-0637 BRACKET-MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

784-0178-0665

Cub Cadet 784-0178-0665

USE 784-0178-0637 BRACKET-MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

Cub Cadet 784-0177

BRACKET-MTG-LH

Variations

784-0177-0483

Cub Cadet 784-0177-0483

MOUNTING BRACKET(LH) - CHARCOAL GRAY (0483)

$

$

Not available

784-0177-0637

Cub Cadet 784-0177-0637

MOUNTING BRACKET(LH) - POWDER BLACK (0637)

$

$

Not available

784-0177-0638

Cub Cadet 784-0177-0638

MOUNTING BRACKET(LH) - MTD/TROY-BILT RED (0638)

$

$

Not available

784-0177-0665

Cub Cadet 784-0177-0665

MOUNTING BRACKET(LH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 734-1376

WHEEL RIM

$

$

Currently unavailable

14

Cub Cadet 734-1377

WHEEL ASSY W/TIRE-LH

$

$

Not available

Cub Cadet 734-1378

WHEEL ASSY W/TIRE-RH

$

$

Currently unavailable

Cub Cadet 734-1154

TIRE-13X5.0-6
(Superseded to 734-1154-0901)

Variations

734-1154-0901

Cub Cadet 734-1154-0901

TIRE-13X5.0-6 - Carlisle (0901)

$

$

Not available

734-1154-0902

Cub Cadet 734-1154-0902

USE 734-1154-0901 TIRE-13X5.0 - Dico (0902)

$

$

Not available

$

$

15

Cub Cadet 750-0688

SPACER

$

$

Not available

16

Cub Cadet 784-0150

GEAR CASE ASSY

$

$

Not available

17

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 712-0206

NUT-HEX 1/2-13

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.99

$

In Stock, Qty 15

0

24

Cub Cadet 784-0155

RAIL-ENGINE MTG-RH

Variations

784-0155-0498

Cub Cadet 784-0155-0498

ENGINE MOUNTING RAIL (RH) - OLD CUB YELLOW (0498)

$

$

Not available

784-0155-0637

Cub Cadet 784-0155-0637

ENGINE MOUNTING RAIL (RH) - POWDER BLACK (0637)

$

$

Not available

784-0155-0665

Cub Cadet 784-0155-0665

ENGINE MOUNTING RAIL (RH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

Cub Cadet 723-0381

COUNTERWEIGHT

$

$

Not available

26

Cub Cadet 736-0326

WASHER-FL

$4.99

$

In Stock, Qty 8

0

27

Cub Cadet 710-0382

BOLT-HEX 1/2-13X5.0

$12.99

$

In Stock, only 1 left!

0

30

Cub Cadet 784-0154

RAIL-ENGINE MTG-LH

Variations

784-0154-0498

Cub Cadet 784-0154-0498

RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

784-0154-0637

Cub Cadet 784-0154-0637

RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

784-0154-0665

Cub Cadet 784-0154-0665

RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

Cub Cadet 710-0216

SCREW-HEX 3/8-16 X .75

$4.49

$

In Stock, Qty 8

0

32

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0974

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0604

SCREW-HEX WASH HD 5/16-18
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 12

0

35

Cub Cadet 784-0203

BRACKET

$

$

Not available

36

Cub Cadet 746-0612

CABLE-CLUTCH CONTROL
(Superseded to 946-0612)

$75.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-0175

BRACKET ASSY-IDLER

Variations

784-0175-0637

Cub Cadet 784-0175-0637

BRACKET ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

39

Cub Cadet 738-0681

SCREW-SHLD

$

$

Not available

40

Cub Cadet 754-0325

BELT-V 1/2 X 57.0
(Superseded to 954-0325)

$

$

Not available

41

Cub Cadet 756-0472

PULLEY-V

$

$

Not available

42

Cub Cadet 736-0176

WASHER-FL

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0412

SCREW-HEX 1/4-28 X .75

$5.99

$

In Stock, Qty 9

0

44

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0463

WASHER-FL

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 712-0262

NUT-HEX CENTER JAM 3/8-24

$4.49

$

In Stock, Qty 16

0

47

Cub Cadet 736-0123

WASHER-FL-.344 ID X 1.12 OD X .063
(Superseded to 936-0123)

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

50

Cub Cadet 784-0158

COVER-BELT
(Superseded to 784-0158B)

Variations

784-0158-0483

Cub Cadet 784-0158-0483

USE 784-0158A COVER-BELT - CHARCOAL GRAY (0483)

$81.99

$

Usually ships in 3-6 days

0

784-0158-0498

Cub Cadet 784-0158-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$100.99

$

Usually ships in 3-6 days

0

784-0158-0637

Cub Cadet 784-0158-0637

USE 784-0158B-0638 COVER-BELT - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

784-0158-0638

Cub Cadet 784-0158-0638

USE 784-0158B-0638 COVER-BELT - MTD/TROY-BILT RED (0638)

$100.99

$

Usually ships in 3-6 days

0

784-0158-0662

Cub Cadet 784-0158-0662

USE 784-0158A-0662 COVER-BELT - OYSTER GRAY (0662)

$100.99

$

Usually ships in 3-6 days

0

784-0158-0665

Cub Cadet 784-0158-0665

USE 784-0158A-0665 COVER-BELT - YARDMAN GREEN (0665)

$93.99

$

Usually ships in 3-6 days

0

$81.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 756-0405

PULLEY-IDLER

$76.99

$

In Stock, only 2 left!

0

52

Cub Cadet 710-0409

SCREW-HEX 5/16-24 X 1.75

$4.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 15

0

54

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet 750-0345

SPACER

$

$

Not available

56

Cub Cadet 748-0282

PULLEY HALF-ENGINE

$

$

Not available

57

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

58

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 784-0197

GUIDE ASSY-BELT

Variations

784-0197-0637

Cub Cadet 784-0197-0637

GUIDE ASSEMBLY-BELT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

60

Cub Cadet 751-0360A

CLAMP-CASING
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0899A

SCREW-HEX SEMS #10-32

$7.49

$

Usually ships in 3-6 days

0
