430 (212-430-100) - Cub Cadet Rear-Tine Tiller Engine (1992) B&S 5 HP Cylinder, Clutch & Starter Ass'y Parts Diagram

Rear-Tine Tiller Engine

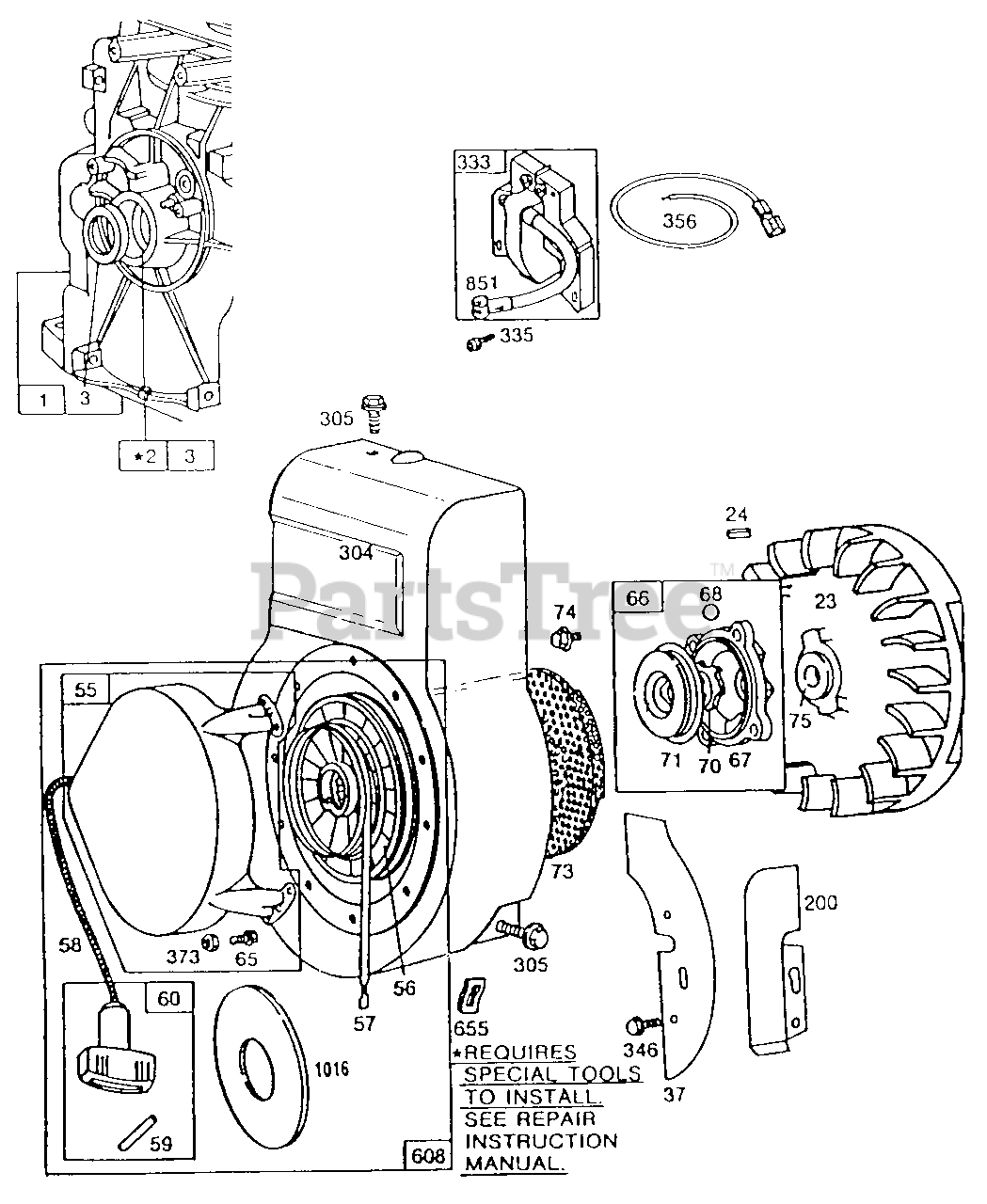

B&S 5 HP Cylinder, Clutch & Starter Ass'y Parts Diagram

  • Title

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-297565

Bushing--Cylinder

Note: (Requires special tools for installation.)

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal--Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-399673

Flywheel--Magneto

$76.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222443

Guard--Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing--Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley--Rewind Starter

$14.99

$

In Stock, only 4 left!

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$14.99

$

In Stock, Qty 14

0

58

Cub Cadet BS-66884

Rope--Rewind Starter--63" Long
(Superseded to BS-692188)

Note: (If longer rope is required, order rope No. BS-66894 and cut to length.)

$8.49

$

In Stock, Qty 5

0

59

Cub Cadet BS-230228

Pin--Starter Grip

$

$

Not available

60

Cub Cadet BS-66728

Grip--Starter Rope
(Superseded to BS-490652)

$5.49

$

In Stock, Qty 8

0

65

Cub Cadet BS-94128

Screw--Stamped Steel Housing Mtg. Sem
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 18

0

66

Cub Cadet BS-399671

Clutch Ass'y.--Rewind Starter

$34.99

$

In Stock, Qty 16

0

67

Cub Cadet BS-394897

Housing--Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball--Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet--Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer--Clutch Retainer

$

$

Not available

73

Cub Cadet BS-221923

Screen--Starter Pulley

$29.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-93490

Screw--Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

75

Cub Cadet BS-220865

Washer--Spring

$

$

Currently unavailable

200

Cub Cadet BS-223886

Guide--Air

$

$

Not available

304

Cub Cadet BS-490169

Housing--Blower

$

$

Not available

305

Cub Cadet BS-93158

Screw--Blower Housing Mounting

$

$

Not available

333

Cub Cadet BS-397358

Armature Assembly

$53.99

$

In Stock, only 2 left!

0

335

Cub Cadet BS-93414

Screw--Armature Mtg. Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw--Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-398808

Wire--Ground

$11.99

$

In Stock, only 1 left!

0

373

Cub Cadet BS-92987

Nut--Hex
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

608

Cub Cadet BS-390463

Starter Ass'y.--Rewind

$139.99

$

Usually ships in 2-12 days

0

655

Cub Cadet BS-222598

Anchor Spring

$

$

Not available

851

Cub Cadet BS-221798

Cable Terminal--Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, only 2 left!

0
