430 (212A430-100) - Cub Cadet Rear-Tine Tiller (1992) Tiller Parts Diagram

Rear-Tine Tiller

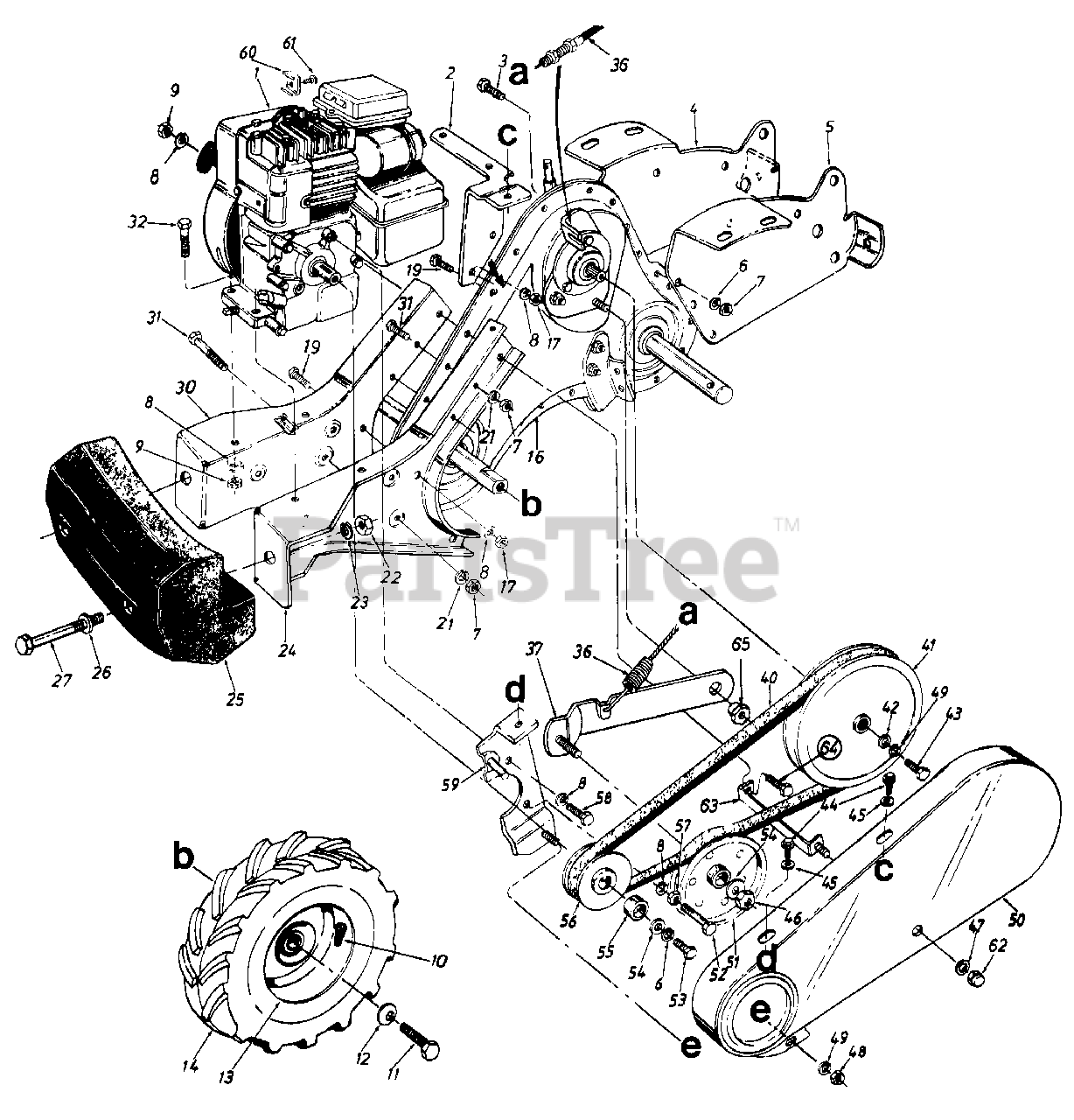

Tiller Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 784-0199A

Belt Cover Mounting Brkt.

Variations

Cub Cadet 784-0199A-0637

BRACKET-MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0199A-0638

BELT COVER MOUNTING BRKT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0199A-0640

BELT COVER MOUNTING BRKT - CO-OP GREEN (0640)

$

$

Not available

$

$

3

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 784-0178

Tine Shield Mtg. Brkt.-R.H.
(Superseded to 784-0178-0637)

Variations

Cub Cadet 784-0178-0483

USE 784-0178-0637 BRACKET-MTG - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0178-0637

BRACKET-MTG-RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0178-0638

USE 784-0178-0637 BRACKET-MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0178-0665

USE 784-0178-0637 BRACKET-MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

Cub Cadet 784-0177

Tine Shield Mtg. Brkt.-L.H.

Variations

Cub Cadet 784-0177-0483

MOUNTING BRACKET(LH) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0177-0637

MOUNTING BRACKET(LH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0177-0638

MOUNTING BRACKET(LH) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0177-0665

MOUNTING BRACKET(LH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x.88"

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 734-1376

Wheel Rim Ass'y. Only

$

$

Currently unavailable

14

Cub Cadet 734-1377

L.H. Wheel Ass'y. Comp.

$

$

Not available

Cub Cadet 734-1378

R.H. Wheel Ass'y. Comp.

$

$

Currently unavailable

Cub Cadet 734-1154

Tire Only 13 x 5.0
(Superseded to 734-1154-0901)

Variations

Cub Cadet 734-1154-0901

TIRE-13X5.0-6 - Carlisle (0901)

$

$

Not available

Cub Cadet 734-1154-0902

USE 734-1154-0901 TIRE-13X5.0 - Dico (0902)

$

$

Not available

$

$

16

Cub Cadet 784-0150

Transmission Comp.

$

$

Not available

17

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0118

Hex Bolt 5/16-18 x.75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0217

L-Wash. 3/8" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

22

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 784-0155

Engine Mounting Rail-R.H.

Variations

Cub Cadet 784-0155-0498

ENGINE MOUNTING RAIL (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0155-0637

ENGINE MOUNTING RAIL (RH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0155-0665

ENGINE MOUNTING RAIL (RH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

Cub Cadet 723-0381

#40 Counter Weight

$

$

Not available

26

Cub Cadet 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$11.99

$

In Stock, only 2 left!

0

30

Cub Cadet 784-0154

Engine Mounting Rail-L.H.

Variations

Cub Cadet 784-0154-0498

RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0154-0637

RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0154-0665

RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

Cub Cadet 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

32

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.50"
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

36

Cub Cadet 746-0908

Clutch Control Cable 46" Lg.
(Superseded to 946-0908)

$69.99

$

In Stock, Qty 20+

0

37

Cub Cadet 686-0026

Idler Bracket Ass'y.

$

$

Not available

40

Cub Cadet 754-0267

"V"-Belt
(Superseded to 954-0267)

$55.99

$

In Stock, Qty 7

0

41

Cub Cadet 756-0634

Fl-Pulley .8" O.D.

$80.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

44

Cub Cadet 710-0599

Hex Wash. Hd. S-Tap Scr.1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0463

Fl-Wash. .281" I.D. x .625"

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet 712-0262

Hex Cent. L-Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-3020

Fl-Wash. .266" I.D. x.625" O.D.

$6.49

$

In Stock, Qty 9

0

48

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

49

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

50

Cub Cadet 784-0158

Belt Cover
(Superseded to 784-0158B)

Variations

Cub Cadet 784-0158-0637

USE 784-0158B-0638 COVER-BELT - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158-0638

USE 784-0158B-0638 COVER-BELT - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158-0483

USE 784-0158A COVER-BELT - CHARCOAL GRAY (0483)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158-0662

USE 784-0158A-0662 COVER-BELT - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158-0665

USE 784-0158A-0665 COVER-BELT - YARDMAN GREEN (0665)

$82.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$66.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

54

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

In Stock, only 4 left!

0

55

Cub Cadet 750-0345

Spacer.758" I.D. x .990"

$

$

Not available

56

Cub Cadet 748-0282

Engine Pulley

$

$

Not available

57

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

58

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 784-0197

Belt Keeper Ass'y.

Variations

Cub Cadet 784-0197-0637

GUIDE ASSEMBLY-BELT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

60

Cub Cadet 751-0360A

Casing Clamp
(Superseded to 751B221535)

$9.49

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0899A

Hex Sems Scr. #10-32 x.62"

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 712-0392

Hex Cap Nut 1/4-28 Thd.

$6.49

$

In Stock, only 2 left!

0

63

Cub Cadet 686-0027

Belt Cover Bracket Ass'y.

$

$

Not available

?64

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 17

0

65

Cub Cadet 738-0876

Shld. Nut
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 17

0
