430 (219-430-100) - Cub Cadet Rear-Tine Tiller (1989) Rear Tine Tiller Parts Diagram

Rear-Tine Tiller

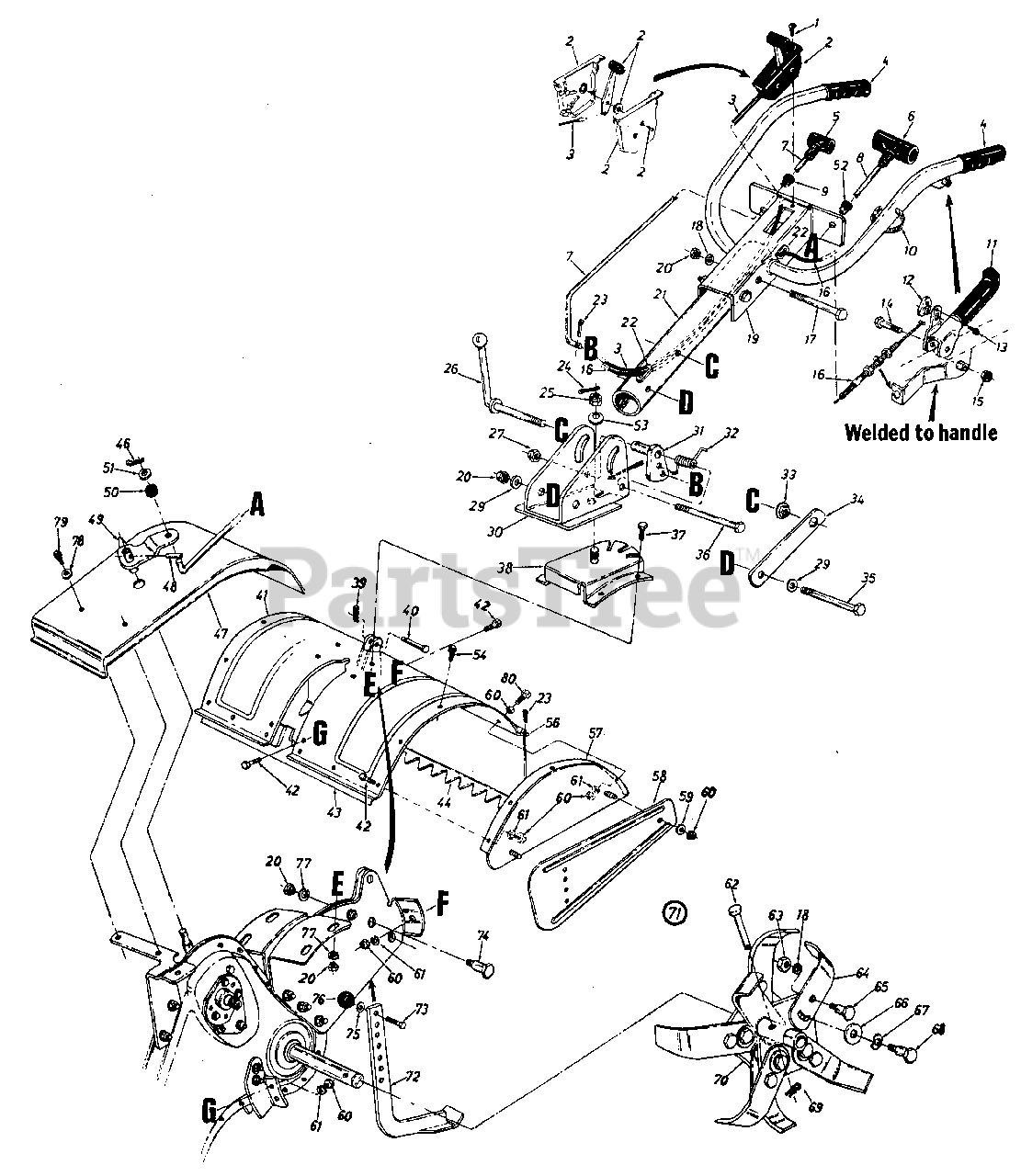

Rear Tine Tiller Parts Diagram

  • Title
1

Cub Cadet 710-0779A

SCREW-TRUSS TAP

$3.55

$

In Stock, Qty 17

0

2

Cub Cadet 831-0823A

CONTROL BOX-THROTTLE

$27.93

$

In Stock, Qty 20+

0

3

Cub Cadet 746-0513

CABLE-THROTTLE
(Superseded to 946-0513B)

$16.69

$

Usually ships in 5-10 days

0

4

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$11.95

$

In Stock, Qty 10

0

$12.32

$

In Stock, only 4 left!

0

$17.40

$

In Stock, only 3 left!

0

7

Cub Cadet 747-0666

ROD-CLUTCH

$21.77

$

Usually ships in 5-10 days

0

8

Cub Cadet 747-0664

ROD-CONTROL

$20.27

$

Usually ships in 5-10 days

0

9

$

$

Not available

10

Cub Cadet 725-0157

TIE-CABLE

$3.15

$

In Stock, Qty 14

0

11

Cub Cadet 784-0202

GRIP ASSY-LH
(Superseded to 684-04399A-0637)

$27.50

$

In Stock, Qty 6

0

12

Cub Cadet 746-0605

HOLD DOWN-CABLE
(Superseded to 946-0605)

$3.60

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0919

SCREW-TAP

$3.65

$

In Stock, only 4 left!

0

14

Cub Cadet 710-0427

SCREW-HEX 3/8-16 x 2.00
(Superseded to 710-3144)

$3.67

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0266

NUT-HEX CENTER L-JAM
(Superseded to 712-0266A)

$3.16

$

In Stock, Qty 20+

0

16

Cub Cadet 746-0612

CABLE-CLUTCH CONTROL
(Superseded to 946-0612)

$58.02

$

In Stock, only 3 left!

0

17

Cub Cadet 710-0194

SCREW-HEX 3/8-16 x 3.00

$

$

Not available

18

Cub Cadet 736-0217

WASHER-HDL 3/8
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

19

Cub Cadet 784-0185

HANDLE ASSY

Variations

Cub Cadet 784-0185-0638

USE 649-0030-0638 HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0185-0665

USE 649-0030-0665 HANDLE ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

Cub Cadet 712-0798

NUT-HEX 3/8-16

$3.52

$

In Stock, Qty 8

0

21

Cub Cadet 784-0189

TUBING ASSY-HDLE

Variations

Cub Cadet 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 784-0189-0498

USE 784-0189-0637 TUBE ASM-HN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0189-0638

USE 784-0189-0637 TUBE ASM-HN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0189-0648

USE 784-0189-0637 TUBE ASM-HN - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0189-0650

USE 784-0189-0637 TUBE ASM-HN - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0189-0662

USE 784-0189-0637 TUBE ASM-HN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0189-0665

USE 784-0189-0637 TUBE ASM-HN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-0189-0691

USE 784-0189-0637 TUBE ASM-HN - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

$8.37

$

Usually ships in 5-10 days

0

23

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA x .75
(Superseded to 914-0507)

$3.63

$

In Stock, Qty 14

0

24

Cub Cadet 714-0111

PIN-COTTER-3/32 DIA x 1.00
(Superseded to 914-0111)

$3.86

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0386A

NUT-HEX SLOTTED

$6.44

$

Usually ships in 5-10 days

0

$21.29

$

Usually ships in 5-10 days

0

27

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$3.67

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0105

WASHER-BELL .400 ID x .88 x .060

$3.62

$

In Stock, Qty 20+

0

30

Cub Cadet 784-0182

PIVOT BRKT ASSY
(Superseded to 684-0263A-0637)

$

$

Not available

31

Cub Cadet 784-0183

CRANK ASSY-POS

$

$

Not available

32

Cub Cadet 732-0493

SPRING-HDL ADJ

$13.66

$

Usually ships in 5-10 days

0

33

Cub Cadet 712-0379

NUT-HEX FLANGE

$3.71

$

Usually ships in 5-10 days

0

34

Cub Cadet 784-0191

BRACKET-RETAINER

$6.71

$

Usually ships in 5-10 days

0

35

Cub Cadet 710-0644

SCREW-HEX 3/8-16 x 3.25
(Superseded to 710-3130)

$8.16

$

In Stock, only 3 left!

0

36

Cub Cadet 710-0521

SCREW-HEX 3/8-16 x 3.00

Note: (Grade 8)

$4.18

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0216

SCREW-HEX 3/8-16 x .75

$3.59

$

In Stock, Qty 20+

0

38

Cub Cadet 784-0181A

BRACKET ASSY

Variations

Cub Cadet 784-0181A-0480

USE 686-0071-0480 BRACKET ASS - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 784-0181A-0483

USE 686-0071-0483 BRACKET ASS - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0181A-0498

USE 686-0071-0498 BRACKET ASS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0181A-0637

USE 686-0071-0637 BRACKET ASS - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0181A-0638

USE 686-0071-0637 BRACKET ASS - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0181A-0662

USE 686-0071-0662 BRACKET ASS - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0181A-0665

USE 686-0071-0665 BRACKET ASS - YARDMAN GREEN (0665)

$

$

Not available

$

$

39

Cub Cadet 714-0145

PIN-INTERN COT
(Superseded to 714-0145)

$4.04

$

In Stock, Qty 20+

0

40

Cub Cadet 711-0415

PIN-CLEVIS 3/8 x 1.620

$3.71

$

In Stock, Qty 20+

0

41

Cub Cadet 784-0156

SHIELD-TINE

Variations

Cub Cadet 784-0156-0483

SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0156-0498

SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0156-0499

SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-0156-0637

SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0156-0638

SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0156-0662

SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0156-0665

SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

Cub Cadet 710-0118

SCREW-HEX 5/16-18 x .75
(Superseded to 710-3008)

$3.43

$

In Stock, Qty 20+

0

43

Cub Cadet 784-0210

BRACKET-REINF

$

$

Not available

44

Cub Cadet 14979

FLAP-HINGE

Variations

Cub Cadet 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$73.07

$

In Stock, only 1 left!

0

Cub Cadet 14979-0638

USE 786-0113A-0638 SHIELD-REA - MTD/TROY-BILT RED (0638)

$73.07

$

Usually ships in 5-10 days

0

Cub Cadet 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$63.57

$

Usually ships in 5-10 days

0

Cub Cadet 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$63.57

$

Usually ships in 5-10 days

0

Cub Cadet 14979-0665

USE 786-0113A-0665 SHIELD-REA - YARDMAN GREEN (0665)

$63.57

$

Usually ships in 5-10 days

0

Cub Cadet 14979-0606

REAR TINE SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 14979-0662

REAR TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$

$

46

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA
(Superseded to 914-0104)

$3.56

$

In Stock, Qty 20+

0

47

Cub Cadet 784-0208A

COVER-SHIFT

Variations

Cub Cadet 784-0208A-0637

USE 784-0208C COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0208A-0638

USE 784-0208C-0638 COVER-SHIF - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0208A-0648

USE 784-0208C COVER-SHIFT - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0208A-0662

USE 784-0208C-0662 COVER-SHIF - OYSTER GRAY (0662)

$

$

Not available

$

$

48

Cub Cadet 715-0120

PIN-SPRING SPIR 3/16 x 1.00

$8.42

$

In Stock, only 2 left!

0

49

Cub Cadet 784-0173

CRANK ASSY-SHIFT

$

$

Not available

50

Cub Cadet 735-0127

WASHER-RUBBER

$5.48

$

Usually ships in 5-10 days

0

51

Cub Cadet 736-0133

WASHER-FL-.406 ID x 1.25 OD
(Superseded to 936-0133)

$

$

Not available

52

$

$

Not available

53

Cub Cadet 736-0317

WASHER-BELL

$6.44

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0607

SCREW-TAP 5/16-18X.62

$5.53

$

In Stock, Qty 20+

0

56

Cub Cadet 747-0432

ROD-TILLER FLAP

$11.13

$

Usually ships in 5-10 days

0

57

Cub Cadet 784-0179

COVER ASSY-END

Variations

Cub Cadet 784-0179-0498

USE 984-0179A-0637 COVER ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0179-0637

USE 984-0179A-0637 COVER ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

58

Cub Cadet 15390

SHIELD-SIDE

Variations

Cub Cadet 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 15390-0637

SHIELD-SIDE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

Cub Cadet 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

59

Cub Cadet 736-0242

WASHER-BELL .337 x .867 x .057

$3.45

$

In Stock, Qty 20+

0

60

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

62

Cub Cadet 711-0415

PIN-CLEVIS 3/8 x 1.620

$3.71

$

In Stock, Qty 20+

0

63

Cub Cadet 712-0241

NUT-HEX 3/8-24

$3.57

$

In Stock, Qty 20+

0

64

Variations

Cub Cadet 742-0305-0637

Articulating Tine, Black - POWDER BLACK (0637)

$20.24

$

In Stock, Qty 20+

0

$

$

65

Cub Cadet 738-0689

SCREW-SHLD 3/8-24 x 3/4 LG
(Superseded to 938-0689)

$7.24

$

In Stock, only 2 left!

0

66

Cub Cadet 736-0208

WASHER-FL .51IDX1.50ODX.075
(Superseded to 936-0208)

$

$

Not available

67

Cub Cadet 736-0255

WASHER-BELL .515X1.4
(Superseded to 936-0255)

$3.71

$

Usually ships in 5-10 days

0

68

Cub Cadet 738-0688

SCREW-SHLD
(Superseded to 938-0688)

$8.34

$

In Stock, Qty 16

0

69

Cub Cadet 714-0149B

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

70

Cub Cadet 784-0160

ADAPTER ASSY-TINE

Variations

Cub Cadet 784-0160-0637

Tine Adapter Assembly, Black - POWDER BLACK (0637)

$93.31

$

In Stock, only 4 left!

0

$

$

71

Cub Cadet 784-0205

TINE ASSY

Variations

Cub Cadet 784-0205-0637

Tine Assembly, Articulating - POWDER BLACK (0637)

$201.65

$

In Stock, Qty 6

0

$

$

72

Cub Cadet 14992

BAR ASSY-DEPTH

Variations

Cub Cadet 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$59.13

$

In Stock, Qty 7

0

$

$

73

Cub Cadet 710-0216

SCREW-HEX 3/8-16 x .75

$3.59

$

In Stock, Qty 20+

0

74

Cub Cadet 738-0148

SCREW-SHLD .500 DIA x .660
(Superseded to 938-0148)

$13.55

$

Usually ships in 5-10 days

0

75

Cub Cadet 736-0117

WASHER-FL-.385 ID x .62 OD x .033
(Superseded to 936-0117)

$5.71

$

In Stock, Qty 6

0

76

Cub Cadet 720-0165

KNOB-BALL 1-3/8 " DIA.
(Superseded to 920-0232)

$8.39

$

In Stock, Qty 8

0

77

Cub Cadet 736-0169

WASHER-LOCK-3/8
(Superseded to 936-0169)

$3.04

$

In Stock, Qty 20+

0

78

Cub Cadet 736-0463

WASHER-FL
(Superseded to 936-0463)

$3.60

$

In Stock, Qty 18

0

79

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.52

$

In Stock, Qty 20+

0

80

Cub Cadet 710-0528

SCREW-HEX 5/16-18 x 1.25

$3.60

$

In Stock, Qty 20+

0
