430 X - Husqvarna Automower Robotic Lawn Mower (2017-01) ACCESSORIES Parts Diagram

Automower Robotic Lawn Mower

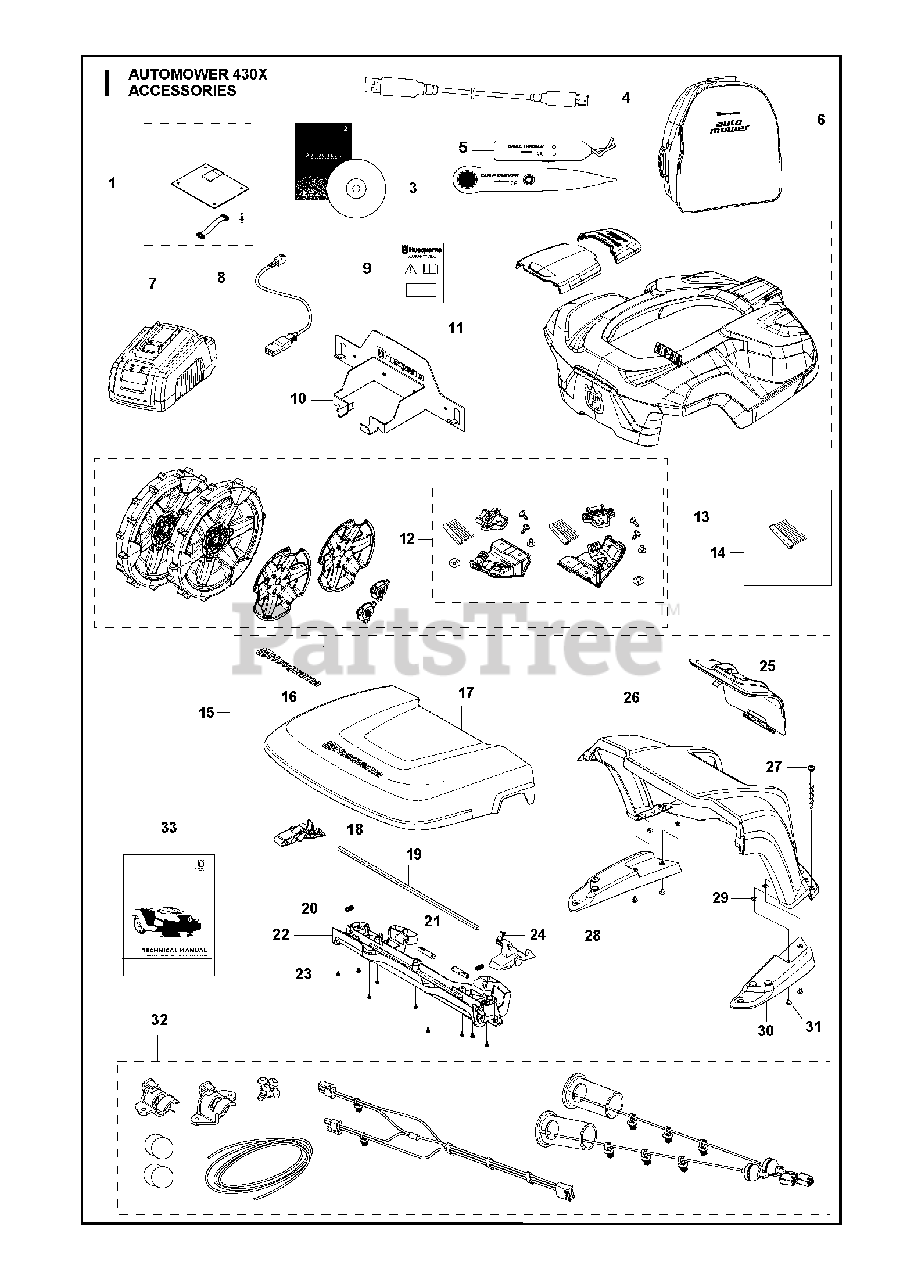

ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 586662304

GPS MODULE 315 430X
(Superseded to 586662305)

Note: Automower Connect KIT

$394.99

$

Usually ships in 3-10 days

0

3

Husqvarna 577858103

DVD Autocheck, Exp Ser

Note: DVD Autocheck EXP

$49.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577518102

CABLE WHITE ALT GREY

Note: Service Cable (USB)

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577606801

TEST EQUIPMENT

Note: Interruption Detector

$227.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522916701

BAG

Note: Bag

$

$

Not available

7

Husqvarna 588408401

CHARGER BATTERY TEST

Note: Quick Charger with Battery Test

$

$

Not available

8

Husqvarna 588202601

CABLE ASSY QUICK CHARGER

Note: Cable Quick Charger

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580689502

LABEL WARRANTY SEAL DEALER
(Superseded to 584902201)

Note: Warranty Seal 1pcs

$5.99

$

In Stock, Qty 10

0

10

Husqvarna 585019702

MISC. BLISTER WALL HA
(Superseded to 598411101)

Note: Wall Hanger

$103.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580965702

White Body Kit, 430

Note: Body KIT White

$429.99

$

In Stock, only 3 left!

0

12

Husqvarna 581903102

BRUSH KIT 430450

Note: Brush KIT incl Brush 6 pcs

$

$

Not available

13

Husqvarna 581889702

Rear Wheel Kit with Brush

Note: Rear Wheel KIT incl Brush KIT

$

$

Not available

14

Husqvarna 581982002

WHEEL BRUSH REFILL KIT

Note: Brush 6pcs

$

$

Not available

15

Husqvarna 585019401

430450 HOUSE KIT

Note: House KIT

$

$

Not available

16

Husqvarna 577469001

DECAL.HUSQVARNA.210MM

Note: Decal

$17.99

$

In Stock, only 4 left!

0

17

Husqvarna 586885801

KIT LID - AUTOMOWER HOUSE

Note: Cover Lid

$

$

Not available

18

Husqvarna 585324002

HANDLE RELEASE LEFT

Note: Handle Left

$11.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585324101

ROD

Note: Steel Rod

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 585341501

HINGE PIN

Note: Hinge Pin

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 585341601

BEAM

Note: Beam

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 585324001

HANDLE RELEASE RIGHT

Note: Handle Right

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585323601

HATCH

Note: Hatch

$

$

Not available

26

Husqvarna 585323401

COVER BASE P2 HOUSE

Note: Cover Base

$

$

Not available

27

Husqvarna 575238601

SCREW KIT CS
(Superseded to 597435801)

Note: Screw KIT 6 pcs

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 585323802

SUPPORT BASE LEFT

Note: Support Base Left

$20.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, Qty 11

0

30

Husqvarna 585323801

SUPPORT BASE RIGHT

Note: Support Base Right

$20.99

$

Usually ships in 3-10 days

0

31

Husqvarna 535129303

SCREW IHPANM M6X25 4.6 ZP-BC

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 581912502

430 HEADLIGHT KIT

Note: Head Lights KIT

$

$

Not available

33

Husqvarna 115819001

Note: Technical Handbook-420 430X 450X Swedish

$

$

Currently unavailable

33

Husqvarna 115819006

Note: Technical Handbook-420 430X 450X Danish

$

$

Currently unavailable

33

Husqvarna 115819011

Note: Technical Handbook-420 430X 450X Finnish

$

$

Currently unavailable

33

Husqvarna 115819021

Note: Technical Handbook-420 430X 450X Norwegian

$

$

Currently unavailable

33

Husqvarna 115819026

Note: Technical Handbook-420 430X 450X English

$

$

Currently unavailable

33

Husqvarna 115819031

Note: Technical Handbook-420 430X 450X French

$

$

Currently unavailable

33

Husqvarna 115819036

Note: Technical Handbook-420 430X 450X Dutch

$

$

Currently unavailable

33

Husqvarna 115819041

Note: Technical Handbook-420 430X 450X Italian

$

$

Currently unavailable

33

Husqvarna 115819046

Note: Technical Handbook-420 430X 450X Spanish

$

$

Currently unavailable

33

Husqvarna 115819051

Note: Technical Handbook-420 430X 450X German

$

$

Currently unavailable

33

Husqvarna 115819056

Note: Technical Handbook-420 430X 450X Russian

$

$

Currently unavailable

33

Husqvarna 115819058

Note: Technical Handbook-420 430X 450X Hungarian

$

$

Currently unavailable

33

Husqvarna 115819059

Note: Technical Handbook-420 430X 450X Portuguese

$

$

Currently unavailable

33

Husqvarna 115819061

Note: Technical Handbook-420 430X 450X Polish

$

$

Currently unavailable

33

Husqvarna 115819062

Note: Technical Handbook-420 430X 450X Romanian

$

$

Currently unavailable

33

Husqvarna 115819063

Note: Technical Handbook-420 430X 450X Estonian

$

$

Currently unavailable

33

Husqvarna 115819064

Note: Technical Handbook-420 430X 450X Latvian

$

$

Currently unavailable

33

Husqvarna 115819065

Note: Technical Handbook-420 430X 450X Lithuanian

$

$

Currently unavailable

33

Husqvarna 115819068

Note: Technical Handbook-420 430X 450X Slovakian

$

$

Currently unavailable

33

Husqvarna 115819071

Note: Technical Handbook-420 430X 450X Greek

$

$

Currently unavailable

33

Husqvarna 115819076

Note: Technical Handbook-420 430X 450X Turkish

$

$

Currently unavailable

33

Husqvarna 115819079

Note: Technical Handbook-420 430X 450X Japanese

$

$

Currently unavailable

33

Husqvarna 115819081

Note: Technical Handbook-420 430X 450X Croatian

$

$

Currently unavailable

33

Husqvarna 115819084

Note: Technical Handbook-420 430X 450X Slovenian

$

$

Currently unavailable

33

Husqvarna 115819090

Note: Technical Handbook-420 430X 450X Czech

$

$

Currently unavailable

33

Husqvarna 115819096

Note: Technical Handbook-420 430X 450X Spanish (USA)

$

$

Currently unavailable
