430 X - Husqvarna Automower Robotic Lawn Mower (2017-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

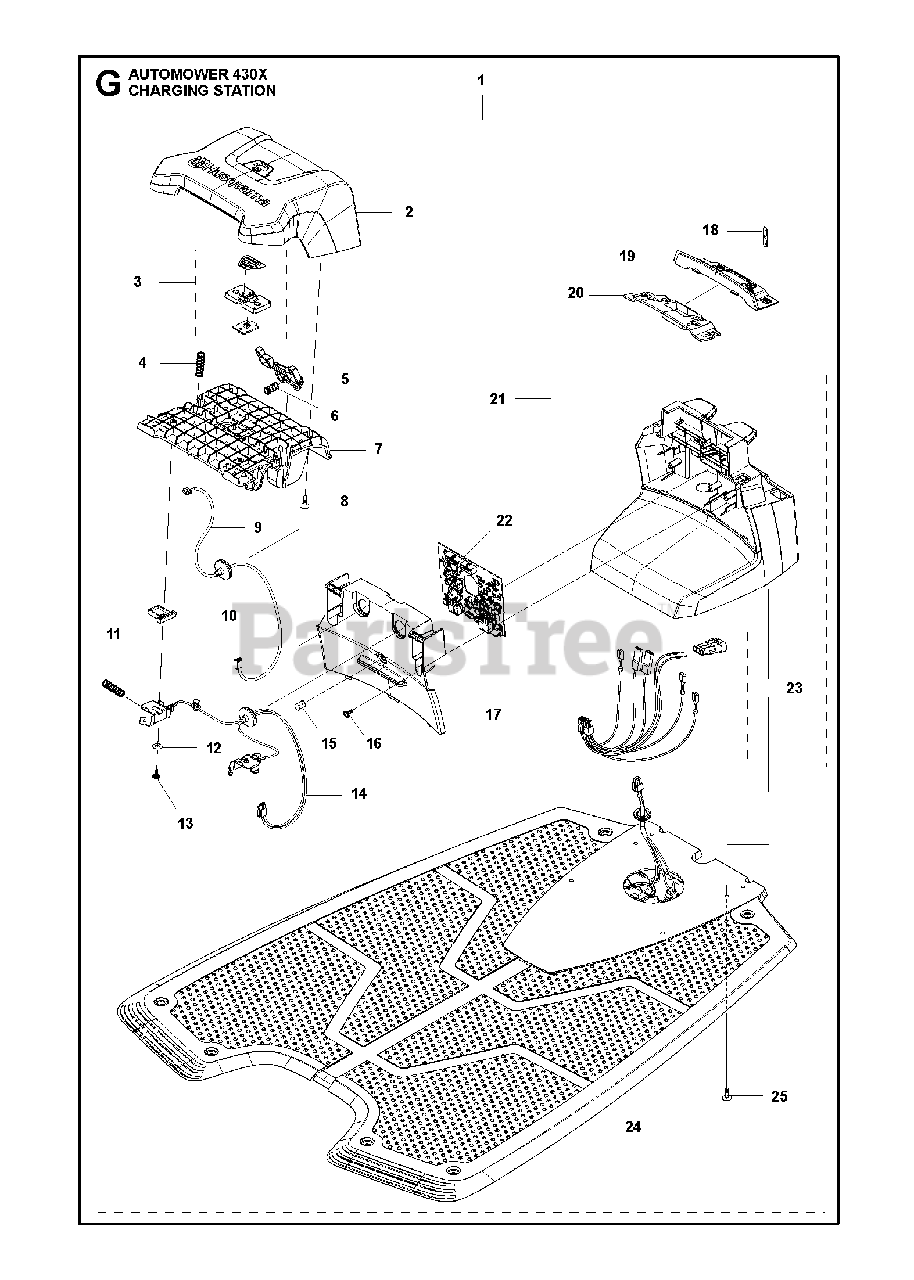

CHARGING STATION Parts Diagram

  • Title

1

Husqvarna 580765506

CHARGING STATION ASSY 430X
(Superseded to 593784702)

Note: Charging Station

$625.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579448204

CAP CHARGING STATION WITHOUT H

Note: Cap

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501065901

BUTTON KIT HOME

Note: Home Button KIT

$42.99

$

Usually ships in 3-10 days

0

4

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: Button

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574487001

SPRING STOP BUTTON

Note: Spring

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 579458004

FRAME CHARGING STATION

Note: Frame

$29.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

9

Husqvarna 579708301

LOOM HOME BUTTON

Note: Home Button Wiring

$28.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579460501

DISTANCE CHARGING STATION
(Superseded to 579460502)

Note: Distance

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

14

Husqvarna 585539502

Cable Assembly, Charging Contacts

Note: Loom Charging Contact

$54.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535128702

LENS
(Superseded to 590217201)

Note: Diode Lens

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 579459703

LID CHARGING STATION 330, TWO

Note: Lid

$31.99

$

Usually ships in 3-10 days

0

18

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

Note: Terminal

$13.99

$

In Stock, only 4 left!

0

19

Husqvarna 579459802

PANEL CHARGING STATION 330, TW

Note: Panel

$

$

Not available

20

Husqvarna 579459901

HOLDER CHARGING STATION

Note: Holder

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 588188801

HOUSING ASSY CHARGING STATION

Note: Housing KIT

$102.99

$

Usually ships in 3-10 days

0

22

Husqvarna 589507801

PRINTED CIRCUIT ASSY PCBA CS B
(Superseded to 589507802)

Note: PCBA Charging Station

$193.99

$

Usually ships in 3-10 days

0

23

Husqvarna 588478901

CABLE KIT GENERATOR BOARD

Note: Wiring CS

$62.99

$

Usually ships in 3-10 days

0

24

Husqvarna 575231602

CHARGING PLATE CHARGING PLATE
(Superseded to 590094001)

Note: Charging Plate

$182.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0
