430 X - Husqvarna Automower Robotic Lawn Mower (2019) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

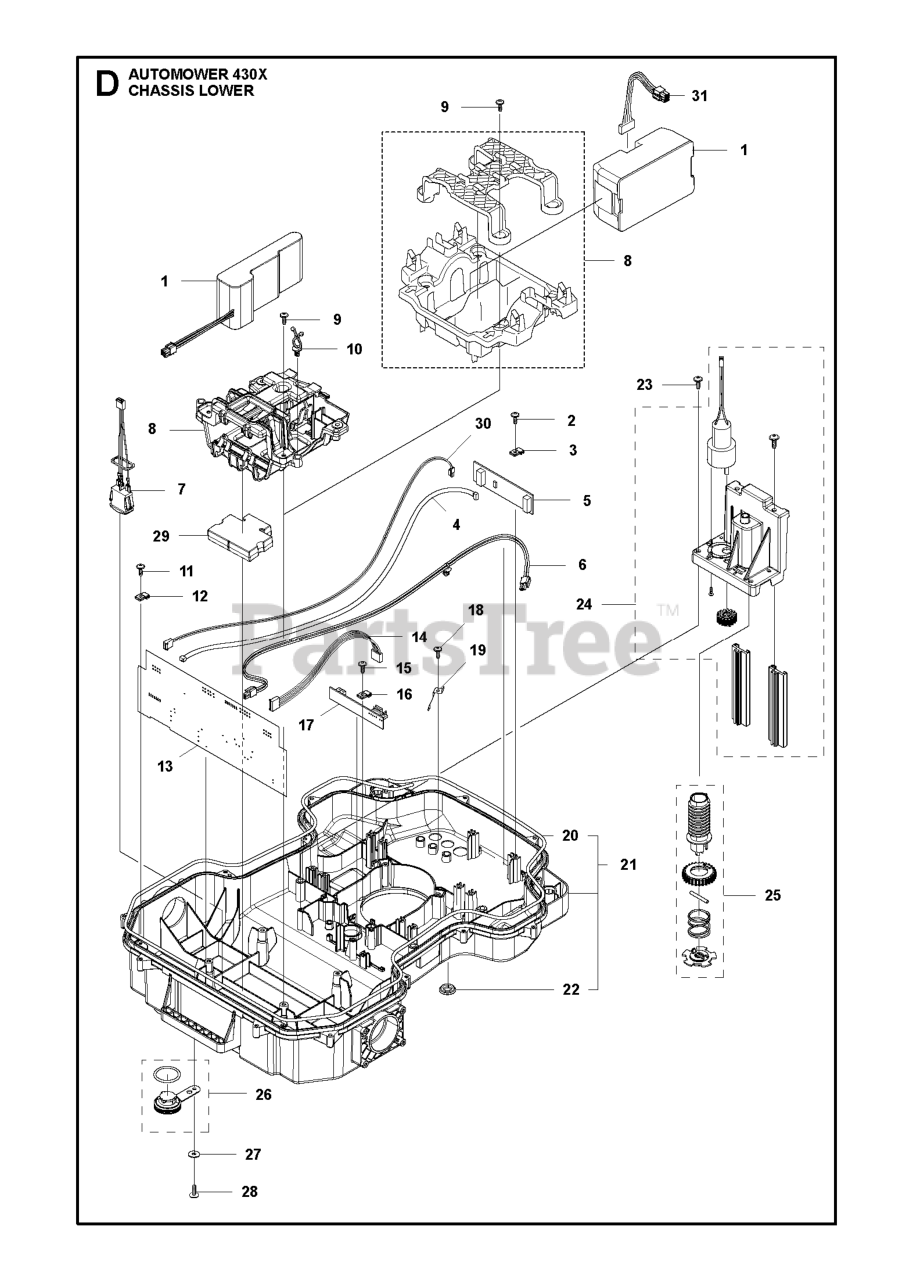

CHASSIS LOWER Parts Diagram

  • Title

1

Husqvarna 589585701

BATTERY 588146401 PACKED
(Superseded to 529606802)

Note: Battery

$341.99

$

In Stock, only 2 left!

0

1

Husqvarna 593247401

BATTERY

Note: From Serial number ??-

$284.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.49

$

In Stock, Qty 11

0

3

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 579708201

LOOM LOOP SENSOR

Note: Loom

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 592852701

PRINTED CIRCUIT ASSY LOOP SENS

Note: Printed Circuit ASSY

$68.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580370702

LOOM CHARGING LINK HIGH CHARGI
(Superseded to 534156602)

Note: Loom

$28.99

$

Usually ships in 3-10 days

0

7

Husqvarna 579708701

LOOM ON/ OFF

Note: Switch, On Off

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580609602

HOLDER BATTERY

Note: Holder

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.49

$

In Stock, Qty 11

0

12

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 592852601

PRINTED CIRCUIT ASSY PCBA MAIN

Note: Printed Circuit ASSY

$376.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579708001

LOOM HEIGHT ADJUSTMENT

Note: Loom

$22.99

$

In Stock, only 1 left!

0

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.49

$

In Stock, Qty 11

0

16

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 579728502

PRINTED CIRCUIT ASSY PCBA CUTT

Note: Printed Circuit ASSY

$37.99

$

Usually ships in 3-10 days

0

18

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.49

$

In Stock, Qty 11

0

19

Husqvarna 581556101

SPRING GUIDE HEIGHT ADJUSTMENT

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574874705

SEALING STRIP

Note: Sealing Strip (1 pcs, ¯5 mm)

$7.99

$

In Stock, Qty 6

0

21

Husqvarna 583944502

CHASSIS KIT LOWER
(Superseded to 583944503)

Note: Chassis KIT

$79.99

$

Usually ships in 3-10 days

0

22

Husqvarna 584897501

GROMMET M16

Note: Plug

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.49

$

In Stock, Qty 11

0

24

Husqvarna 501068301

MOTOR ASSY HEIGHT MOTOR

Note: Motor ASSY

$125.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581621601

SCREW KIT

Note: Screw KIT

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581621202

PLUG KIT

Note: Plug KIT

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 587249601

WEIGHT CENTER
(Superseded to 589366201)

Note: Weight

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 588818402

WIRING ASSY LED LIGHT EXTENSIO

Note: Wiring ASSY

$28.99

$

Usually ships in 3-10 days

0
